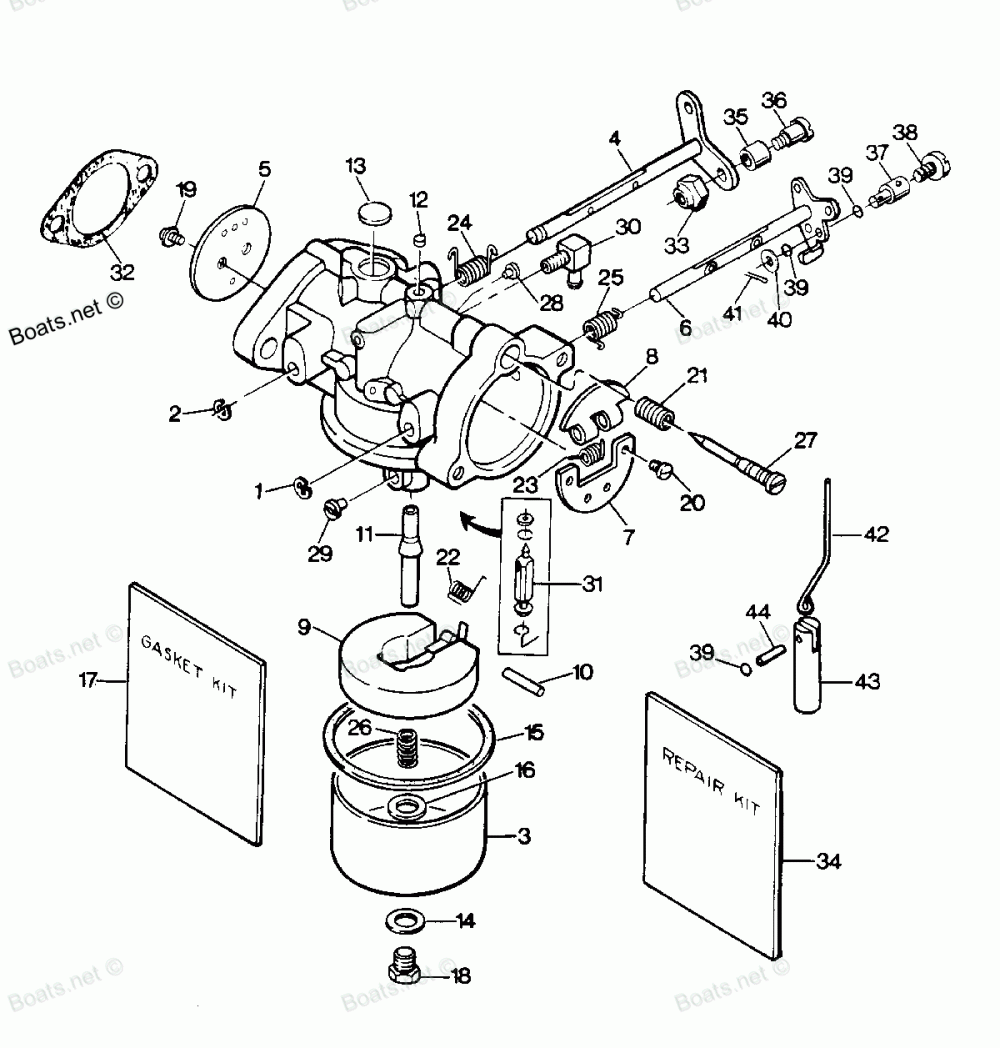

Карбюратор

Force H0357F86A
Force
#oem кодцена
-
F627061
CARBURETOR, COMPLETE (WE-15)
1
F10218
Прокладка
2
F10131
Прокладка
3
F10127
FUEL BOWL
4
F10132
THROTTLE SHAFT ASSEMBLY
5
F10133
THROTTLE VALVE
6
F10134
CHOKE SHAFT ASSEMBLY
7
F10128
CHOKE VALVE
8
F10129
CHOKE RELIEVING VALVE
9
F10135
Поплавок
10
F10208
FLOAT PIN
11
F10137
Наконечник
12
F10152
CUP PLUG
13
F10153
WELCH PLUG
14
F10067
BOWL RETAINER GASKET
15
F10138
BOWL RING GASKET
16
F10206
BOWL RETAINER GASKET
17
FK10209
GASKET KIT
18
F10205
BOWL RETAINER SCREW
19
F10155
VALVE SCREW
20
F10140
VALVE SCREW
21
F10141
IDLE NEEDLE SPRING
22
F10142
FLOAT SUPPORT SPRING
23
F10130
CHOKE RELIEF SPRING
24
F10143
THROTTLE RETURN SPRING
25
F10144
CHOKE RETURN SPRING
26
F10204
NOZZLE SUPPORT SPRING
27
F10146
IDLE NEEDLE
28
F10163
AIR JET (.060)
29
F10212
MAIN FUEL JET (.074) - SEA LEVEL - 2500 FT.
-
F10213
MAIN FUEL JET (.072) - 2500 - 5000 FT.
-
F10214
MAIN FUEL JET (.070) - 5000 - 7500 FT.
-
F10215
MAIN FUEL JET (.068) - 7500 - 10, 000 FT.
30
F10156
FUEL FITTING ELBOW
31
FK10120-1
FLOAT FUEL & GASKET
32
F40906-1
Прокладка карбюратора
33
F1997
STOP NUT, 8 - 32
34
FK10202
REPAIR KIT
35
F92759
Ролик
36
F333316
THROTTLE ROLLER SHAFT
37
F184033-1
CHOKE ROD SWIVEL
38
F1059
FILL HD SCREW, 6 - 32 X 1/4
39
F184579
Уплотнение
40
F8088
PLAIN WASHER
41
F1014
Шплинт
42
F460925
CHOKE SOLENOID ROD
43
F391926-1
CHOKE SOLENOID PLUNGER
44
F2033
GROOVE PIN
