Карбюратор Каталог оригинальных запчастей для лодочных моторов Force H0508M86A (1986)

Главная
Каталог оригинальных запчастей для лодочных моторов
Force
1986
H0508M86A
Карбюратор

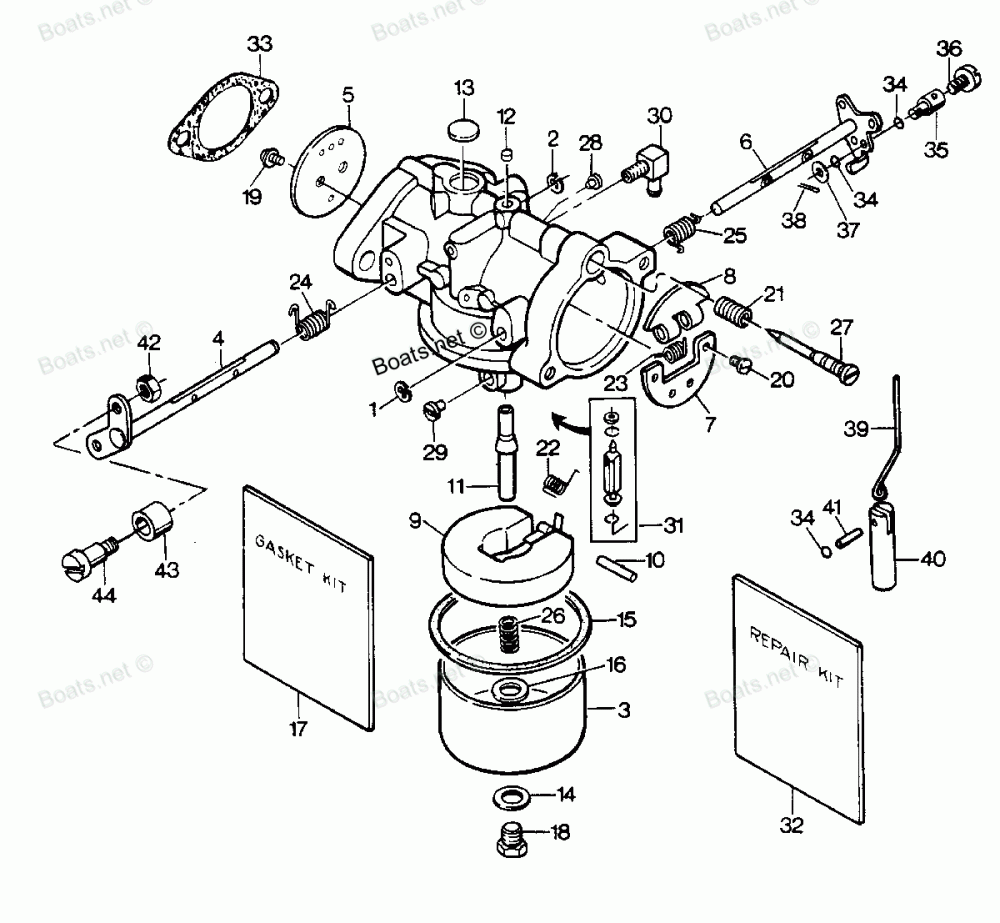

Карбюратор

Карбюратор

Force H0508M86A

oem код

название

цена

FK628061

CARBURETOR ASSEMBLY (WE-13)

Прокладка

SHAFT RETAINER RING

FUEL BOWL

THROTTLE SHAFT ASSEMBLY

THROTTLE VALVE

CHOKE SHAFT ASSEMBLY

CHOKE VALVE

CHOKE RELIEVING VALVE

FLOAT ASSEMBLY

PIN, FLOAT ASSEMBLY

Наконечник

CUP PLUG

WELCH PLUG

BOWL RETAINER GASKET

BOWL RING GASKET

BOWL RETAINER GASKET

GASKET KIT.

BOWL RETAINER SCREW

VALVE SCREW

VALVE SCREW

IDLE NEEDLE SPRING

FLOAT SUPPORT SPRING

CHOKE VALVE SPRING

THROTTLE RETURN SPRING

CHOKE RETURN SPRING

NOZZLE SPRING

NEEDLE, IDLE

JET (.046)

MAIN FUEL JET (.084)

JET SIZE. (.082) 2500 - 5000 FT.

F10203

JET SIZE. (.080) 5000 - 7500 FT.

F10210

JET SIZE. (.078) 7500 - 10, 000 FT.

F10156

FUEL FITTING, ELBOW

FK10120-1

FLOAT KIT, VALVE & SEAT

FK10202

REPAIR KIT

F40906-1

CARBURETOR GASKET

F184579

SEAL, CHOKE ARM SWIVEL

F184033-1

SWIVEL, CHOKE ROD

F1059

FILL HD SCREW 6 - 32 X 1/4

PLAIN WASHER

Шплинт

CHOKE SOLENOID ROD

CHOKE SOLENOID PLUNGER

GROVE PIN

STOP NUT 8-32

Ролик

THROTTLE ROLLER SHAFT
