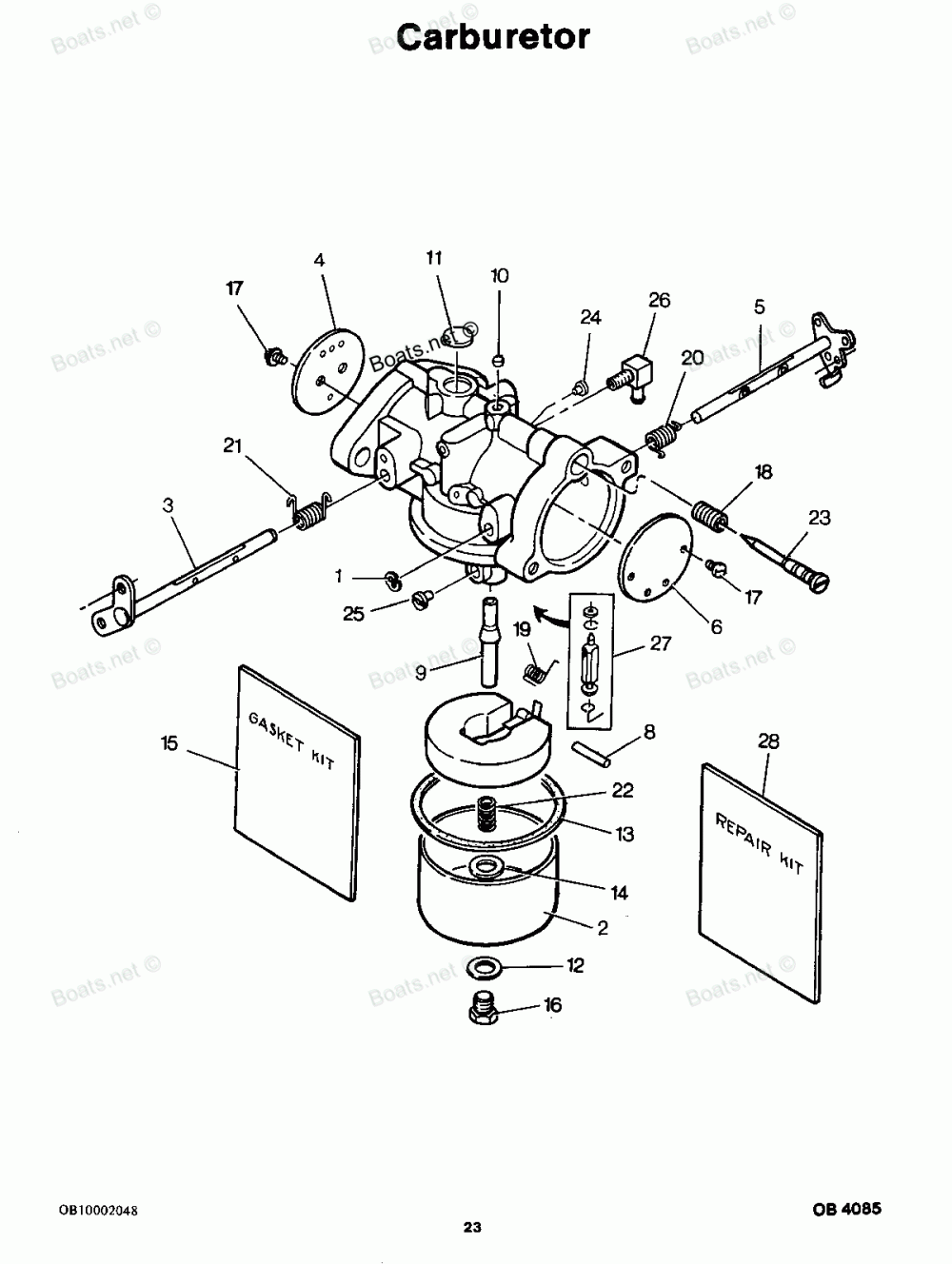

Carburetor (with Gasket And Repair Kit)
Carburetor (with Gasket And Repair Kit)

Carburetor (with Gasket And Repair Kit)

Force H0858V86B

oem код

название

цена

F631061

CARBURETOR ASSEMBLY (WE-9-2) MIDDLE & BOTTOM

F632061

CARBURETOR ASSEMBLY (WE-9-1) TOP

F10218

SHAFT RING RETAINER

F10127

FUEL BOWL

F10168

THROTTLE SHAFT ASSEMBLY

THROTTLE VALVE

CHOKE SHAFT ASSEMBLY

CHOKE VALVE

FLOAT ASSEMBLY

PIN, FLOAT ASSEMBLY

Наконечник

CUP PLUG

WELCH PLUG

BOWL RETAINER GASKET

BOWL RING GASKET

BOWL RETAINER GASKET

GASKET KIT.

BOWL RETAINER SCREW

CHOKE AND THROTTLE SCREW

IDLE NEEDLE SPRING

FLOAT SUPPORT SPRING

CHOKE VALVE SPRING

THROTTLE RETURN SPRING

NOZZLE SPRING

NEEDLE, IDLE

JET (.060)

MAIN FUEL JET (.074)

JET SIZE (.072) 2500 - 5000 FT.

F10214

JET SIZE (.070) 5000 - 7500 FT.

F10215

JET SIZE (.068) 7500 - 10, 000 FT.

F10156

FUEL FITTING (ELBOW) FOR 631061

F10164

FUEL FITTING (TEE) FOR 632061 (NOT SHOWN)

FK10120-1

FLOAT KIT, VALVE & SEAT

FK10220

REPAIR KIT.
