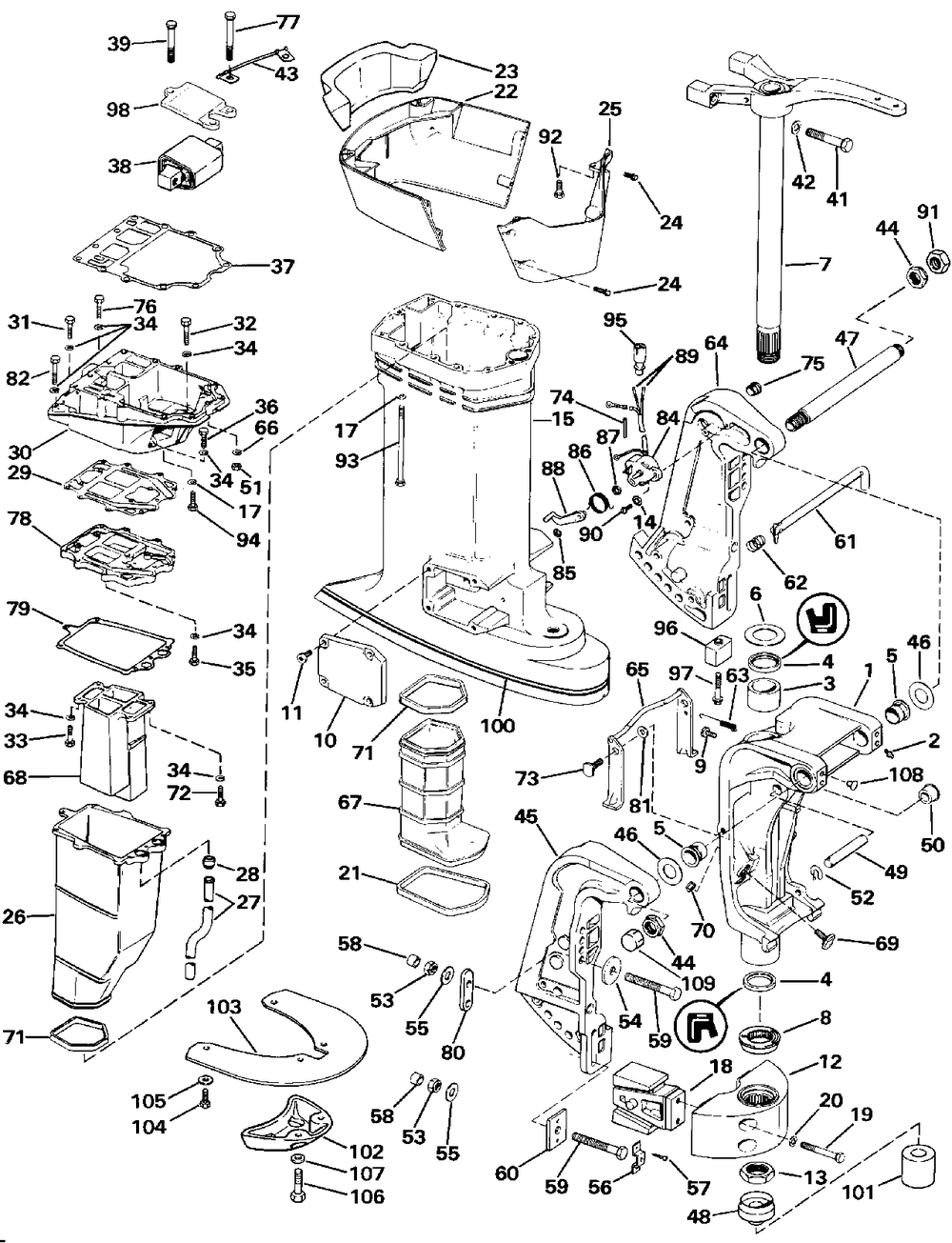

  6. Струбцина

Струбцина

Evinrude E155WTXEIB
Evinrude
#oem кодцена
2
0313607
Фитинг
3
0320962
Bushing Swiv Bk
4
0320937
Seal Swiv Brkt
5
0321035
Bushing Swiv Bk
6
0320866
Упорная шайба
7
0392518
Steer Arm & Shaft ( 20 In. (508mm) Transom Models Only)
7
0392519
Steer Arm & Shaft ( 25 In. (635mm) Transom Models Only)
8
0327696
Keeper
9
0306014
Винт
11
0322000
Винт
12
0340006
Bracket, Mount-20" ( 20 In. (508mm) Transom Models Only)
12
0338744
Bracket, Mount ( 25 In. (635mm) Transom Models Only)
13
0320746
Lock Nut
14
0328739
Шайба
15
0435432
Exhst Hsg Ay, 20" ( 20 In. (508mm) Transom Models Only)
15
0435318
Hsg&stud Ay, Exh. ( 25 In. (635mm) Transom Models Only)
17
0301250
Шайба
18
0434632
Mount Ay, Rubber
19
0328078
Винт
20
0306314
Lockwasher 4pk
21
0320961
Seal, G/c-innr Hsg
22
0983524
Cover & Seal Ay
23
0334824
Уплотнение
24
0328694
Винт
25
0323800
Cvr-exh Hsg-frt
27
0346898
Tube, Water 25" ( 25 In. (635mm) Transom Models Only)
28
0305145
Уплотнитель резиновый
29
0324516
Gasket, Plt-adptr
30
0331033
Adapter, Ex Hsg
31
0331979
Винт
32
0324814
Screw-exh Cvr
33
0324813
Screw-exh Cvr
34
0302290
Lockwasher 5 Pk
35
0331979
Винт
36
0329894
Винт
37
0335503
Прокладка
38
0395539
Mount Ay, Mtr-uppr
39
0330930
Винт
42
0322624
Шайба
44
0335554
Гайка
45
0333304
Stern Bracket-stbd
46
0910992
Упорная шайба
48
0912233
Retainer-seal ( 25 In. (635mm) Transom Models Only)
49
0320792
Pin Tilt Cyl Up
50
0322481
Bushing-upr Tilt
51
0306422
Гайка
52
0321054
Spring Clip 2pk
53
0313623
Гайка
54
0307238
Washer 5 Pk
55
0320248
Washer 5 Pk
56
0318273
Седло
57
0319886
Screw Ret To Plate
58
0318572
Cap-tran Scr 4pk
59
0336676
4 3/4" Trnsm Bolt
59
0354101
6" Trnsm Bolt
60
0318272
Sq Plate 4pk
61
0436541
Rod Ay, Thrust
62
0321053
Spring Thrs Rod
66
0301250
Шайба
67
0327796
Exhaust Hsg, Inner ( 20 In. (508mm) Transom Models Only)
67
0327797
Exhaust Hsg ( 25 In. (635mm) Transom Models Only)
69
0321499
Thrust Pad
70
0552938
Гайка
71
0320936
Seal, Ex Hsg
72
0303398
Винт
75
0321243
Bushing Stern B
76
0312495
Винт
77
0330931
Винт
78
0327803
Plate, Adpt In Ex
79
0323222
Прокладка
80
0321735
Support Stern Brkt
81
0330266
Шайба
82
0305652
Винт
86
0511528
Spring-tilt Trim
87
0320689
Гайка
88
0512211
Рычаг
89
0511469
Pin(10)44-100-1414
90
0308825
Винт
91
0322376
Nut-steering Wiper ( Recommended To Prevent Corrosion In Salt Water Usage)
92
0328694
Винт
93
0328698
Screw-exh Hsg
94
0302860
Винт
95
0512746
Conn, 2 Pin Rcpt
96
0433458
Anode & Screw Ay
97
0333350
Винт
98
0331022
Пластина
99
0328701
Гровер
100
0333960
Наклейка
101
0911312
Seal ( 25 In. (635mm) Transom Models Only)
102
0345776
Deflector, Spray ( 25 In. (635mm) Transom Models Only)
103
0345776
Deflector, Spray ( 25 In. (635mm) Transom Models Only)
104
0910741
Screw ( 25 In. (635mm) Transom Models Only)
105
0911201
Washer ( 25 In. (635mm) Transom Models Only)
106
0910736
Screw ( 25 In. (635mm) Transom Models Only)
107
0301250
Washer ( 25 In. (635mm) Transom Models Only)
108
0334076
Заглушка
109
0317894
Крышка
