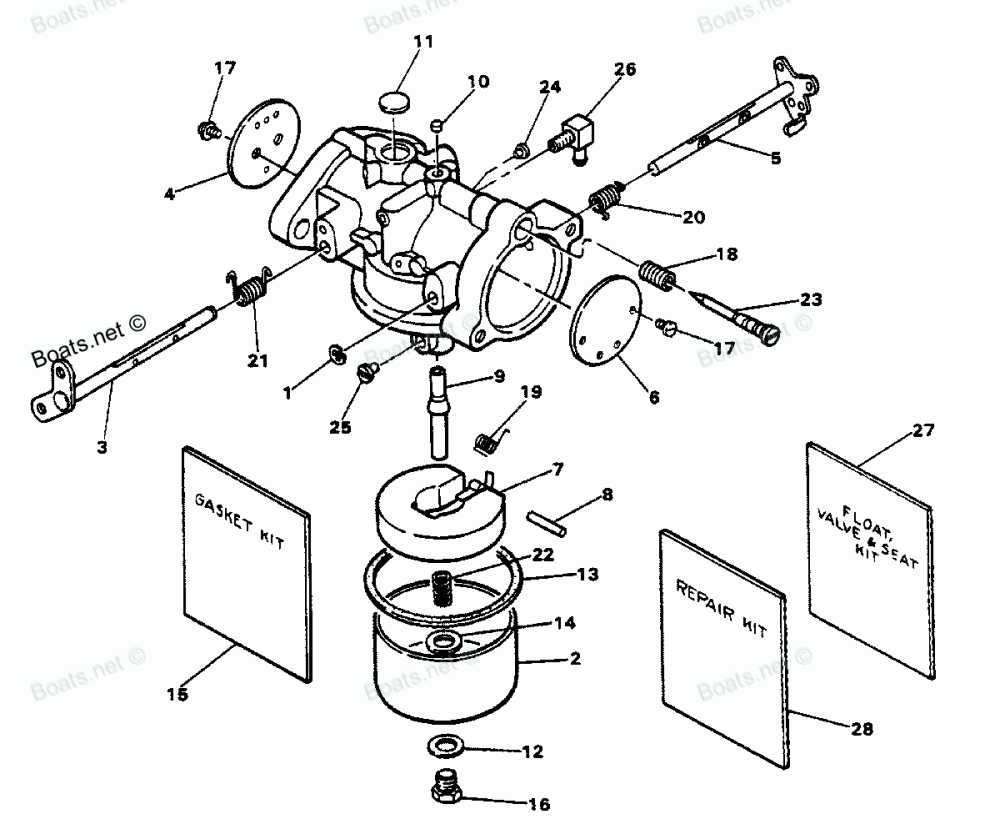

Carburetor (side Jet Style)

Force H0856X85A
Force
#oem кодцена
-
F632061
CARBURETOR ASSEMBLY
-
F631061
CARBURETOR ASSEMBLY
1
F10218
SHAFT RING RETAINER
2
F10127
FUEL BOWL
3
F10168
THROTTLE SHAFT ASSEMBLY
4
F10169
THROTTLE VALVE
5
F10219
CHOKE SHAFT ASSEMBLY
6
F10161
CHOKE VALVE
7
F10135
FLOAT ASSEMBLY
8
F10208
PIN, FLOAT ASSEMBLY
9
F10137
Наконечник
10
F10152
CUP PLUG
11
F10153
WELCH PLUG
12
F10067
BOWL RETAINER GASKET
13
F10138
BOWL RING GASKET
14
F10206
BOWL RETAINER GASKET
15
FK10209
GASKET KIT
16
F10205
BOWL RETAINER SCREW
17
F10155
CHOKE AND THROTTLE SCREW
18
F10141
IDLE NEEDLE SPRING
19
F10142
FLOAT SUPPORT SPRING
20
F10143
CHOKE VALVE SPRING
21
F10172
THROTTLE RETURN SPRING
22
F10204
NOZZLE SPRING
23
FO14166
NEEDLE, IDLE
24
F10163
JET (.060)
25
F10212
MAIN FUEL JET (.074)
25
F10213
JET SIZE (.072) 2500 - 5000 FT.
25
F10214
JET SIZE (.070) 5000 - 7500 FT.
25
F10215
JET SIZE (.068) 7500 - 10000 FT.
26
F10156
FUEL FITTING (ELBOW) FOR 631061
NS
F10164
FUEL FITTING (TEE) FOR 632061
27
FK10120-1
FLOAT KIT, VALVE & SEAT
28
FK10220
REPAIR KIT
