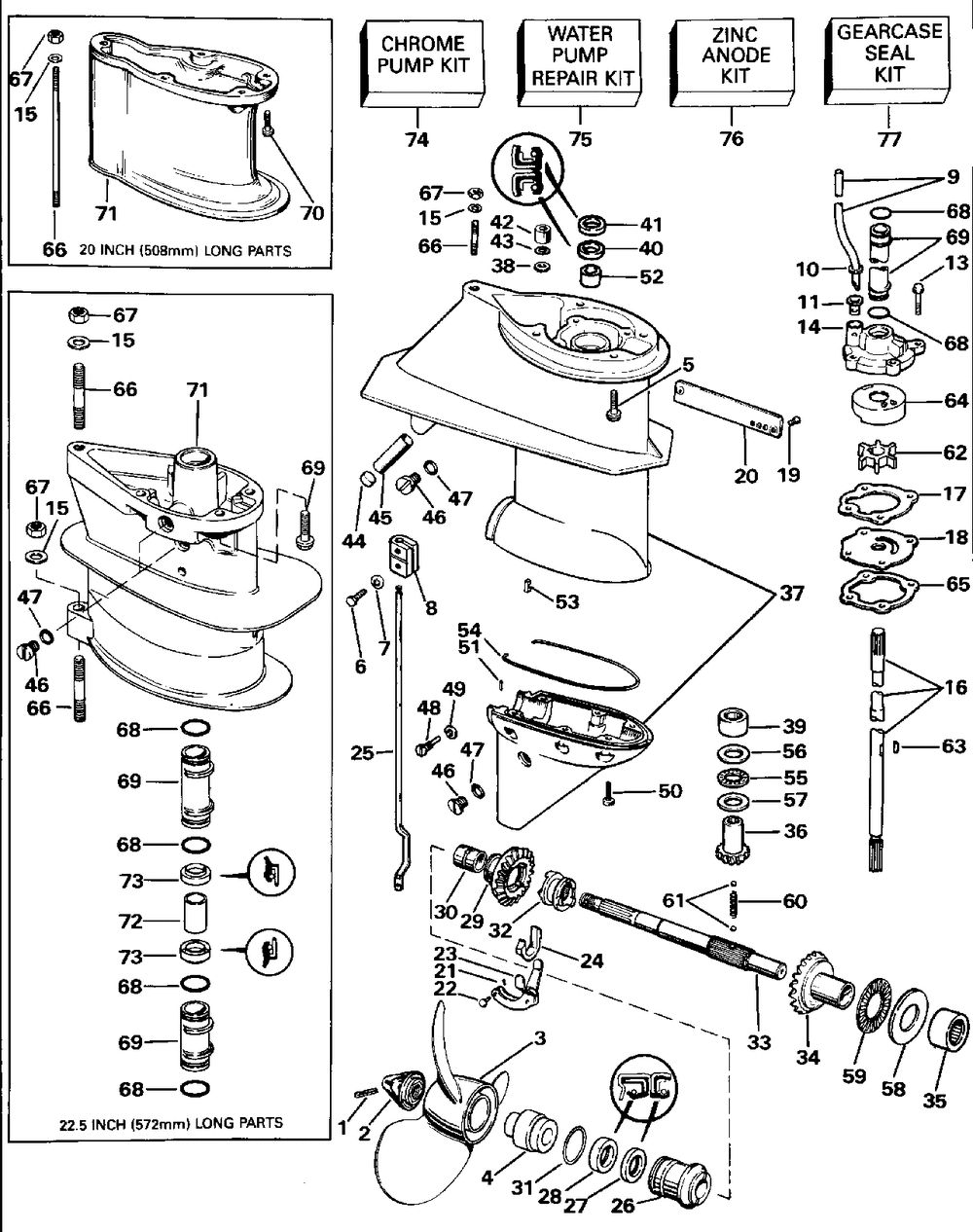

Редуктор

Evinrude E25RWEIM
Evinrude
#oem кодцена
1
0306394
Cotter Pin 10 Pk
2
0390294
Гайка гребного винта
3
0389067
Al Prop 25hp 7p
3
0763585
Prop, Al 9x9 3bld
3
0763589
Prop Al. 9x10
3
0763584
Prop Al. 9.25x11
4
0389281
Prop Hub 25 Hp
5
0328333
Винт
6
0304024
Screw ( 20 In. (508mm) Long Models Only)
7
0301551
Lockwasher ( 20 In. (508mm) Long Models Only)
8
0303794
Connector, Shft Rod
8
0304081
Connector, Shft Rod ( 20 In. (508mm) Long Models Only)
9
0395339
Wtr Tube Ay ( 15 In. (381mm) Std. Models Only)
9
0395340
Wtr Tube Ay ( 20 In. (508mm) Long Models Only)
10
0330658
Washer ( 20 In. (508mm) Long Models Only)
11
0302497
Grommet ( Also Included In Water Pump Repair Kit 395270)
13
0328725
Screw ( Also Included In Water Pump Repair Kit 395270)
14
0330560
Imp Hsg
15
0312687
Washer ( 20 In. (508mm) Long Models Only)
16
0341650
Driveshaft, 15"
16
0341649
Driveshaft, 20" ( 20 In. (508mm) Long Models Only)
17
0329390
Gasket ( Also Included In Water Pump Repair Kit 395270)
18
0324564
Plate ( Chrome Plated Also Included In Water Pump Repair Kit 395270)
18
0765642
Plate ( Stainless Steel Also Included In Water Pump Repair Kit 395270)
19
0303587
Винт
20
0302505
Крышка
21
0306376
Шплинт
22
0302504
Штифт
23
0375755
Lever & Pin A
24
0325014
Зажим
25
0303098
Shift Rod, Low-std ( 15 In. (381mm) Std. Models Only)
25
0303257
Shift Rod, Low-long ( 20 In. (508mm) Long Models Only)
26
0389045
Gcase Head&seal Ay
27
0321459
Oil Retainer
28
0321787
Seal Prop Shaft
29
0325258
Gear-reverse, 3lug
30
0303997
Втулка
31
0321921
Уплотнительное кольцо
32
0325263
Муфта переключения скоростей
34
0390295
Gear&bush-fwd, 3lug
35
0389472
Bearing-fwd Gear
36
0324457
Pinion-driveshaft
37
0432810
G-case & Brg
38
0304764
Прокладка
39
0376856
Brg Ay, Needle
40
0321459
Oil Retainer
41
0330327
Oil Retainer
42
0304765
Втулка
43
0301877
Кольцо
44
0300314
Заглушка
45
0302757
Водозаборная решетка
46
0307551
Пробка сливная
47
0333572
Уплотнительное кольцо
48
0308376
Винт
49
0332584
Шайба
50
0330562
Винт
51
0300611
Центрирующая втулка
52
0386071
Подшипник
55
0388027
Thrust Brg Ay
56
0319667
Ff Thrust Washer
57
0322688
Thrust Washer-lwr
58
0324459
Упорная шайба
59
0389470
Подшипник опорный
60
0316505
Пружина
61
0316506
Шарик фиксирующий
62
0395289
Imp & Key ( Also Included In Water Pump Repair Kit 395270)
63
0344470
Key, Impeller-blk ( Also Included In Water Pump Repair Kit 395270)
64
0328773
Cup-chrome ( Chrome Plated Also Included In Water Pump Repair Kit 395270)
64
0328751
Cup, Imp Hsg ( Stainless Steel Also Included In Water Pump Repair Kit 395270)
65
0324449
Gasket-impellr 5pk ( Also Included In Water Pump Repair Kits 395271 & 395270)
66
0330060
Шпилька
67
0552938
Nut ( 20 In. (508mm) Long Models Only)
68
0301967
O Ring ( 20 In. (508mm) Long Models Only Also Included In Water Pump Repair Kit 395270)
69
0324453
Проставка
69
0324455
Spacer ( 20 In. (508mm) Long Models Only)
70
0328333
Screw ( 20 In. (508mm) Long Models Only)
71
0328336
Extension ( 20 In. (508mm) Long Models Only)
75
0395270
Kit Ay, Wtr Pump
76
0173029
Zinc Anode Kit Ob
77
0396352
Комплект сальников редуктора
304454
0304454
Lockwasher ( Not Shown)
306643
0306643
Screw ( Not Shown)
325974
0325974
Rubber Mount ( 20 In. (508mm) Long Models Only Not Shown)
325975
0325975
Rubber Mount ( Not Shown 20 In. (508mm) Long Models Only)
332226
0332226
Screw ( Not Shown Optional)
