Motor Leg Каталог оригинальных запчастей для лодочных моторов Force H0032H84G (1984)

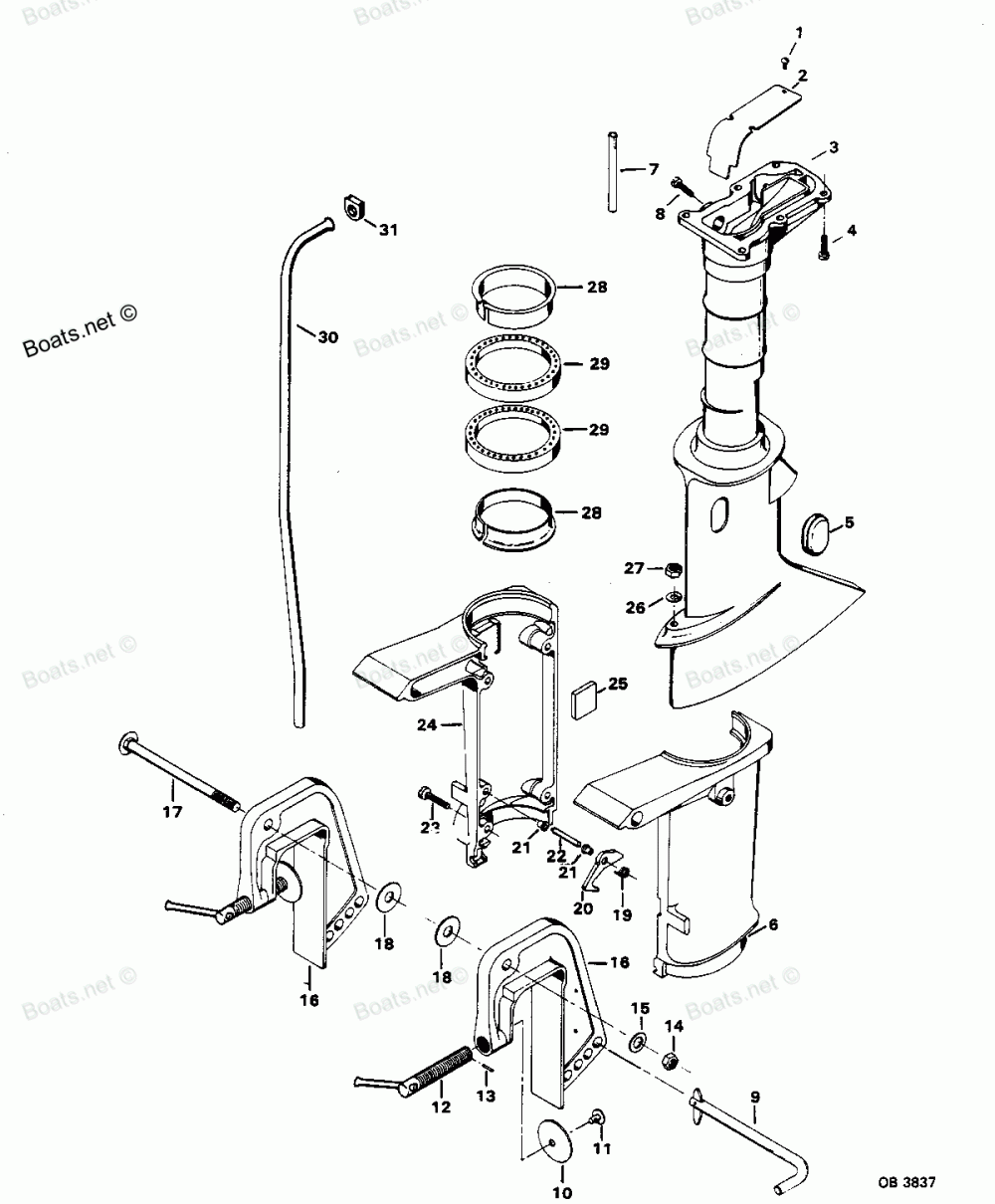

Motor Leg

Force H0032H84G

oem код

название

цена

F1645

RD HD THD. CUTTING, 6 - 32 X 1/4

FA341151

PLATE, EXHAUST

FK601133

MOTOR LEG

F1922

HEX HD SCREW, 1/4 - 20 X 5/8

F46899-1

COVER, SHIFT COUPLING

817815A4

SWIVEL BRACKET - PORT

F521261

LINE, WATER OUTLET

F1445

SCREW, 1/4 - 14 X 3/8

LOCK BAR ASSEMBLY

CLAMP SCREW FOOT

Шпилька

CLAMP SCREW

Пружинный Штифт

STOP NUT 3/8 - 16

PLAIN WASHER

STERN BRACKET

PIVOT BOLT

PLAIN WASHER

SPRING, REVERSE LOCK

REVERSE LOCK

Подшипник

PIN, REVERSE LOCK

PHILLIPS FILL HD SCREW, 1/4 - 20 X 1

FA601572

SWIVEL BRACKET - STARBOARD

PAD, SWIVEL FRICTION

SPRING LOCKWASHER

Гайка

BEARING, SWIVEL BRACKET

FA468346

SHOCK MOUNT

F521244-1

WATER LINE STANDARD LEG

F521342-1

SEAL, WATER LINE
