Струбцина Каталог оригинальных запчастей для лодочных моторов Evinrude E45RCEIA (1991)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1991
E45RCEIA

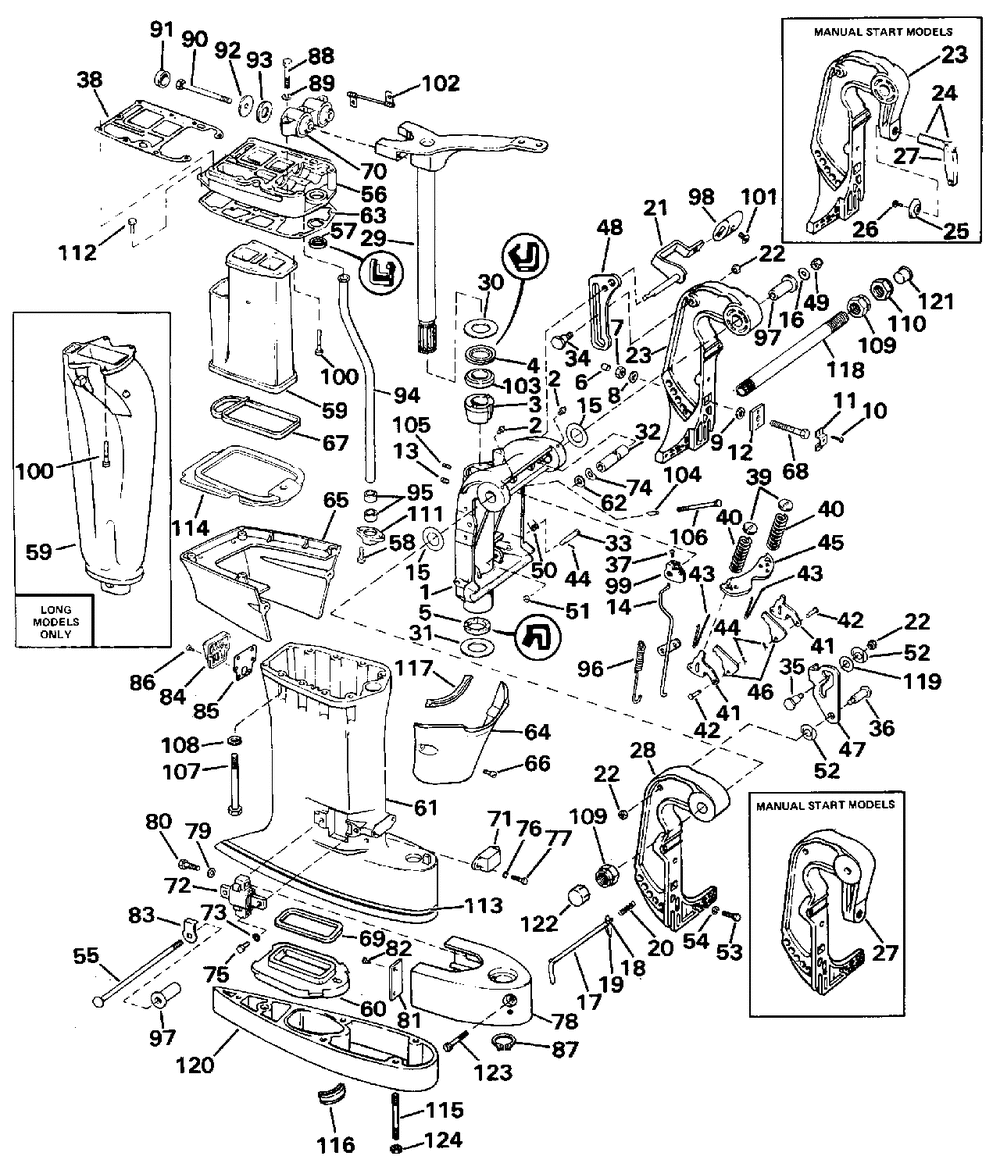

Струбцина
Струбцина

Струбцина

Evinrude E45RCEIA

oem код

название

цена

0318230

Swivel Brkt

0318229

Swivel Brkt ( Rope Start Models Only)

0351318

Bracket, Swivel ( Electric Start Models Only)

0313607

Фитинг

0317412

Bushing ( Rope Start Models Only)

0313880

Bushing ( Electric Start Models Only)

0317776

Уплотнение

0318298

Уплотнение

0318572

Cap-tran Scr 4pk ( Electric Start Models Only)

0313623

Nut ( Electric Start Models Only)

0320248

Washer 5 Pk ( Electric Start Models Only)

0307238

Washer 5 Pk ( Electric Start Models Only)

0319886

Screw Ret To Plate ( Electric Start Models Only)

0318273

Retainer ( Electric Start Models Only)

0318272

Sq Plate 4pk ( Electric Start Models Only)

0317419

Screw ( Rope Start Models Only)

0387531

Rod&brkt Ay

0317782

Упорная шайба

0314099

Washer ( Rope Start Models Only)

Штанга

Retainer Strn

Пружина

Lever&shaft

Гайка

Stern Brkt Port ( Electric Start Models Only)

0391434

C-screw Kit ( Rope Start Models Only)

0388052

Clampscrew Kit ( Rope Start Models Only)

0434757

Plate&screw Ay ( Rope Start Models Only)

0337018

Plate, Swivel ( Rope Start Models Only)

0434757

Plate&screw Ay ( Rope Start Models Only)

0334003

Screw-shoulder ( Rope Start Models Only)

0398001

Kit, Handle&rivet ( Rope Start Models Only)

0319933

Stern Brkt Stbd ( Electric Start Models Only)

0390535

Pivot Shaft&arm ( 20 In. (508mm) Long Models Only)

Упорная шайба

Упорная шайба

Втулка

Pin-link

Винт

Винт

Винт

Screw-bellcrk

Gasket, Pwhd-adapt

Крышка крыльчатки

Пружина

Link Lock Lvr

Pin-link

Седло

Шплинт

Plate Reverse Lock

Lever-locking

Stop Link

Stop Link & Pin

Nut ( Rope Start Models Only)

0315967

Spring-link

0552783

Washer ( Rope Start Models Only)

0552499

Washer ( Electric Start Models Only)

Шайба

Винт

Стопорная шайба

Bolt ( Rope Start Models Only)

Adaptor&seal Ay

Oil Retainer

Винт

Housing, Exhaust ( 15 In. (381mm) Long Models Only)

0336259

Housing, Exhaust ( 20 In. (508mm) Long Models Only)

0315957

Exh Hsg Inner ( 15 In. (381mm) Long Models Only)

Шайба

Gasket, Adptr-hsg

Cover Exh Hsg Frnt

Крышка

Seal-exh Hsg ( 15 In. (381mm) Long Models Only)

0318573

3 1/2" Trnsm Bolt ( Electric Start Models Only)

0336676

4 3/4" Trnsm Bolt ( Electric Start Models Only As Required For Special Applications)

0354101

6" Trnsm Bolt ( Electric Start Models Only As Required For Special Applications)

0315956

Seal-exh Hsg ( 15 In. (381mm) Long Models Only)

0436470

Mount Ay, Rubber ( 15 In. (381mm) Long Models Only 20 In. (508mm) Long Models Only)

Rubber Mt Low

Rubber Mt Ay-lwr

Стопорная шайба

Пружинная шайба

Винт

Lockwasher 5 Pk

Винт

Bracket, Lower Mt

Стопорная шайба

Screw Mt Brkt

Cvr Mt Brkt

Screw Cover

Washer-tilt Pin ( Rope Start Models Only)

Cvr Exh Relef

Gasket, Ex Rlf Cvr

Винт

Retain Ring

Винт

Стопорная шайба

Винт

Амортизатор ударов

Retaining Washer

Шайба

Washer, Wtr Tube

Пружина

Bushing ( Rope Start Models Only)

0329012

Knob-tilt Lock

0319904

Bellcrank Tiltlock

100

0326469

Винт

101

0318238

Винт

102

0582494

Lead Ay, Bonding

103

0317415

Thrust Ring ( Rope Start Models Only)

104

0317418

Pin ( Rope Start Models Only)

105

0317416

Scrw Thrst Rg ( Rope Start Models Only)

106

0317525

Screw-string ( Rope Start Models Only)

107

0324812

Screw-exh Hsg

108

0309192

Шайба

109

0335554

Nut, Lock ( Electric Start Models Only)

110

0322376

Nut-steering Wiper ( Electric Start Models Only Recommended To Prevent Corrosion In Salt Water Use)

111

0315860

Cvr-wtr Tube

112

0309705

Винт

113

0334072

Наклейка

114

0332173

Уплотнение

118

0351896

Tube, Tilt Sst ( Electric Start Models Only)

119

0303864

Шайба

121

0318173

Plug ( Electric Start Models Only)

122

0317894

Cap ( Electric Start Models Only)

123

0329885

Винт
