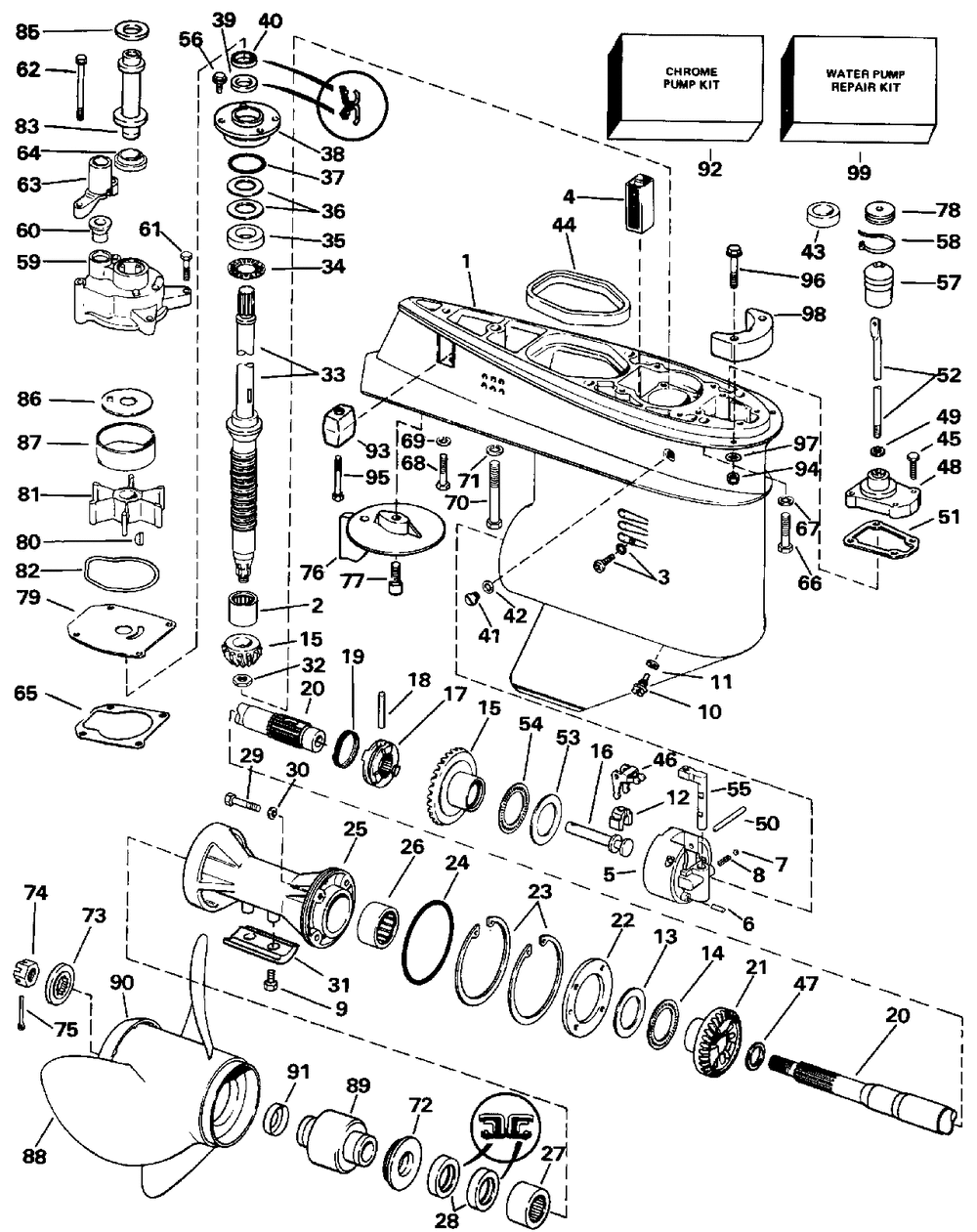

Редуктор

Evinrude E45RCLEIA
Evinrude
#oem кодцена
1
5005458
Корпус редуктора
2
0382343
Подшипник
3
0324852
Retaining Screw
4
0314175
Водозаборная решетка
5
0391365
Brg Hgs, Pin&spring
6
0331880
Штифт
7
0327345
Ball, Detent
8
0911961
Пружина
9
0908158
Винт
10
0318544
Drain Screw
11
0333572
Уплотнительное кольцо
12
0334163
Cradle-shift
13
0313447
Шайба
14
0382408
Bearing Ay, Thrust
15
0398522
Gearset, Fwd&pin
16
0326668
Вал
17
0318303
Рычаг переключения
18
0313448
Штифт
19
0324369
Пружина
20
0439153
Вал гребново винта
21
0318353
Reverse Gear 12:32
22
0313453
Plate, Retainer
23
0313445
Прокладка
24
0313446
Уплотнительное кольцо
25
0434391
P-shft Brg Hsg Ay
26
0382407
Подшипник игольчатый
27
0379504
Needle Brg Ay
28
0330137
Seal, Drl 5-pk
29
0320041
Screw Brg Hsg
30
0332584
Шайба
31
0431708
Анодная пластина
32
0313339
Гайка
33
0436723
Driveshaft Ay, 15" ( 15 In. (381mm) Models Only)
33
0436724
D/shft 20 45/55/94 ( 20 In. (508mm) Models Only)
34
0385068
Подшипник опорный
35
0317230
Упорная шайба
36
0323889
Shim-pinion .003
36
0323890
Shim-pinion .004
36
0317232
Shim 005
37
0313754
Уплотнительное кольцо
40
0330327
Oil Retainer
41
0307551
Пробка сливная
42
0333572
Уплотнительное кольцо
43
0305762
Seal Ring ( 15 In. (381mm) Models Only)
44
0324937
Уплотнение
45
0302325
Винт
46
0324037
Shifter Lever
47
0316484
Упорная шайба
48
0387336
Cvr&bush Ay Shftrd
49
0318372
Уплотнительное кольцо
50
0320145
Штифт
51
0314082
Gasket 5 Pk
52
0327366
Shift Rod Std ( 15 In. (381mm) Models Only)
52
0327367
Shift Rod-long ( 20 In. (508mm) Models Only)
53
0324766
Упорная шайба
54
0385043
Thrust Brg Ay
55
0330701
Detent-shifter
56
0909386
Screw-ret Plate
57
0317922
Seal ( 20 In. (508mm) Models Only)
58
0320107
Tie Strap 100pk ( 20 In. (508mm) Models Only)
59
0384087
Impeller Hsg ( Also Included In Water Pump Repair Kit 396933)
60
0315837
Grommet ( Also Included In Water Pump Repair Kit 396933)
61
0302325
Screw ( Also Included In Water Pump Repair Kit 396933)
62
0331980
Screw ( Also Included In Water Pump Repair Kit 396933)
63
0315838
Brkt-wtr Tube ( Also Included In Water Pump Repair Kit 396933)
64
0341732
Grommet ( Also Included In Water Pump Repair Kit 396933)
65
0336530
Gasket, W/p Plate ( Also Included In Water Pump Repair Kit 396933)
66
0305282
Screw ( 15 In. (381mm) Models Only 20 In. (508mm) Models Only)
67
0307708
Lockwasher ( 15 In. (381mm) Models Only 20 In. (508mm) Models Only)
68
0306503
Screw ( 15 In. (381mm) Models Only 20 In. (508mm) Models Only)
69
0306470
Стопорная шайба
70
0313697
Screw ( 15 In. (381mm) Models Only 20 In. (508mm) Models Only)
71
0306314
Lockwasher 4pk
72
0127084
Bushing, Thrust
73
0315810
Проставка
74
0314503
Гайка гребного винта
75
0314502
Шплинт
76
0127466
Tab, Trim
77
0313715
Винт
78
0321452
Grommet ( 20 In. (508mm) Models Only)
79
0320981
Plate Imp Hsg ( Stainless Steel Also Included In Water Pump Repair Kit 396933)
80
0344470
Key, Impeller-blk ( Also Included In Water Pump Repair Kit 396933)
81
0777214
Impeller ( Also Included In Water Pump Repair Kit 396933)
82
0315788
Seal ( Also Included In Water Pump Repair Kit 396933)
86
0320776
Plate Liner Hsg ( Stainless Steel Also Included In Water Pump Repair Kit 396933)
87
0315747
Liner ( Chrome Plated)
88
0389792
Sst V-4 11"
88
0765184
Prop Ay, Al 13.2x19
88
0763300
Prop Al, 14 X 9
88
0763301
Prop, Al 14 X 11
88
0765181
Prop, Al 13.75x13
88
0765182
Винт гребной алюминиевый 13,5 х 15
88
0765183
Prop, Al 13.25x17
88
0763957
Ssp V4 13.75x13
88
0763929
Viper V413.875x15
88
0765185
Prop Ay, Al 13.2x21
88
0763930
Viperv4 13.875x17
88
0763931
Viperv4 13.875x19
90
0332393
Converging Ring, V4
91
0313926
Гильца
94
0313022
Гайка
95
0328096
Screw, Anode
96
0324430
Screw-imp Hsg
97
0307555
Стопорная шайба
98
0392462
Анодная пластина
99
0439077
Рем.комплект водяного насоса
332584
0332584
Washer 5pk ( Not Shown)
392461
0392461
Anode Kit ( Not Shown)
