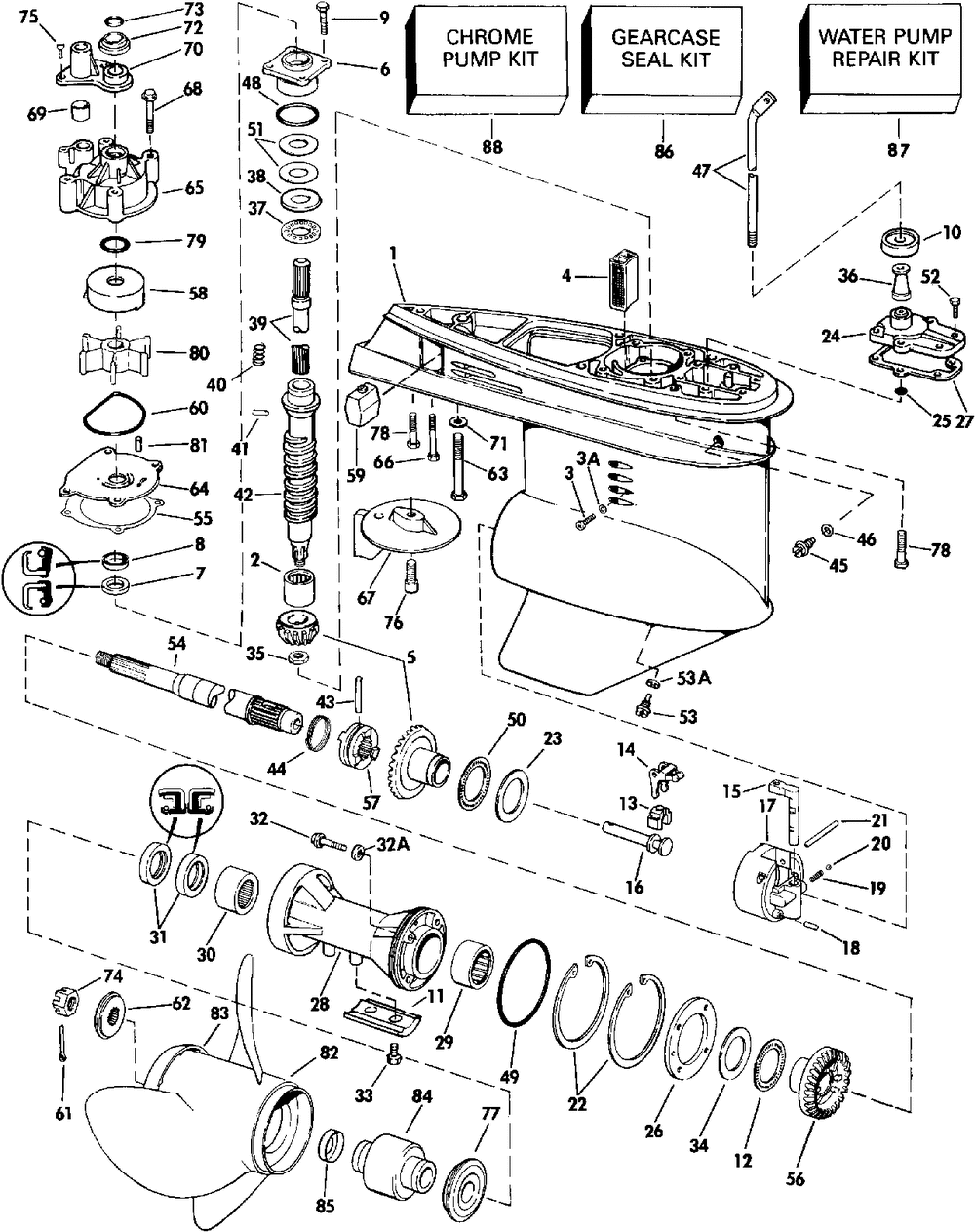

Gearcase - 120tl & tx/140 tl

Evinrude VE120TLEIE
Evinrude
#oem кодцена
1
0431642
G-case&brg Ay, V4
2
0384195
Ndle Brg, Bh-1820
3
0324852
Retaining Screw
4
0323466
Screen-wtr Intake
5
0436746
V4 Gearset 13:26
6
0439476
Ds Brg Hsg&seal Ay
7
0329923
Oil Retainer
8
0329922
Oil Retainer
9
0317624
Винт
10
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395062)
11
0431708
Анодная пластина
12
0382408
Bearing Ay, Thrust
13
0334163
Cradle-shift
14
0324037
Shifter Lever
15
0915954
Detent
16
0322941
Shaft-shifter
17
0391365
Brg Hgs, Pin&spring
18
0331880
Штифт
19
0911961
Пружина
20
0327345
Ball, Detent
21
0320145
Штифт
22
0313445
Прокладка
23
0324766
Упорная шайба
24
5006241
Cover Ay, Shift Rod
25
0318372
Уплотнительное кольцо
26
0314732
Пластина
27
0352165
Прокладка
28
0397087
Ps Brg Hsg&seal Ay
29
0382407
Подшипник игольчатый
30
0379504
Needle Brg Ay
31
0330137
Seal, Drl 5-pk
32
0316563
Винт
33
0908158
Винт
34
0314731
Упорная шайба
35
0314730
Nut Pinion
36
0321122
Spacer-shift Rod ( 25 In. (635mm) Transom Models)
37
0387656
Thrust Brg Ay
38
0327656
Упорная шайба
39
5000618
Kit, Upper D/s-20" ( 20 In. (508mm) Transom Models)
39
5000626
Kit, Uppr D/s 25" ( 25 In. (635mm) Transom Models)
3A
0332584
Шайба
40
0335684
Пружина
41
0311538
Pin, Roll
42
0346006
Driveshaft, Lower
43
0313448
Штифт
44
0324369
Пружина
45
0318544
Drain Screw
46
0333572
Уплотнительное кольцо
48
0354731
Уплотнительное кольцо
49
0313446
Уплотнительное кольцо
50
0385043
Thrust Brg Ay
51
0323362
Shim-pinion-003
51
0323361
Shim-pinion-004
51
0314745
Shim 005
52
0302325
Винт
53
0318544
Drain Screw
54
0436888
Вал гребново винта
55
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kits 395062 & 395060)
56
0345992
Gear, Reverse V4
57
0323664
Shifter-clutch Dog
58
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
58
0435526
Cup & Plate Ay ( Chrome Plated)
59
0436745
Anode&insert Ay
60
0331353
Seal ( Also Included In Water Pump Repair Kits 395062 & 395060)
61
0314502
Шплинт
62
0315810
Проставка
63
0313697
Винт
64
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
64
0435526
Cup & Plate Ay ( Chrome Plated)
65
0435485
Housing Ay, Pump ( Also Included In Water Pump Repair Kit 395062)
66
0328096
Screw, Anode
67
0338742
Tab, Trim-std
68
0335221
Screw ( Also Included In Water Pump Repair Kit 395062)
69
0314008
Grommet ( Also Included In Water Pump Repair Kit 395062)
70
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395062)
71
0306314
Lockwasher 4pk
72
0320943
Grommet ( Also Included In Water Pump Repair Kit 395062)
73
0310585
O Ring ( Also Included In Water Pump Repair Kit 395062)
74
0314503
Гайка гребного винта
75
0306643
Screw ( Also Included In Water Pump Repair Kit 395062)
76
0313715
Винт
77
0127084
Bushing, Thrust
78
0331999
Винт
80
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395062)
81
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395062)
82
0763300
Prop Al, 14 X 9
82
0763301
Prop, Al 14 X 11
82
0765181
Prop, Al 13.75x13
82
0765182
Винт гребной алюминиевый 13,5 х 15
82
0765183
Prop, Al 13.25x17
82
0765184
Prop Ay, Al 13.2x19
82
0765185
Prop Ay, Al 13.2x21
82
0763929
Viper V413.875x15
82
0763930
Viperv4 13.875x17
82
0763931
Viperv4 13.875x19
82
0763957
Ssp V4 13.75x13
82
0389792
Sst V-4 11"
82
0177202
Prop, Al/13.88x11rh
82
0763953
Raker V-4 13.5x18
82
0763954
Raker V-4 13.5x20
82
0763956
Raker V-4 13.5x24
83
0332393
Converging Ring, V4
86
5006373
Kit Ay, Seal-gc
87
5001594
Рем.комплект водяного насоса
88
0435526
Cup & Plate Ay
32A
0332583
Washer, Dlr 5-pk
53A
0333572
Уплотнительное кольцо
434010
5000777
Kit Ay, 2pc D/shaft ( Not Shown 20 In. (508mm) Transom Models)
434011
5000778
Kit Ay, D-shaft 2pc ( Not Shown 25 In. (635mm) Transom Models)
