Final bevel gear (front) (model k2) Запчасти для квадроциклов ATV Suzuki LT-A500F Vinson 4WD (2002)

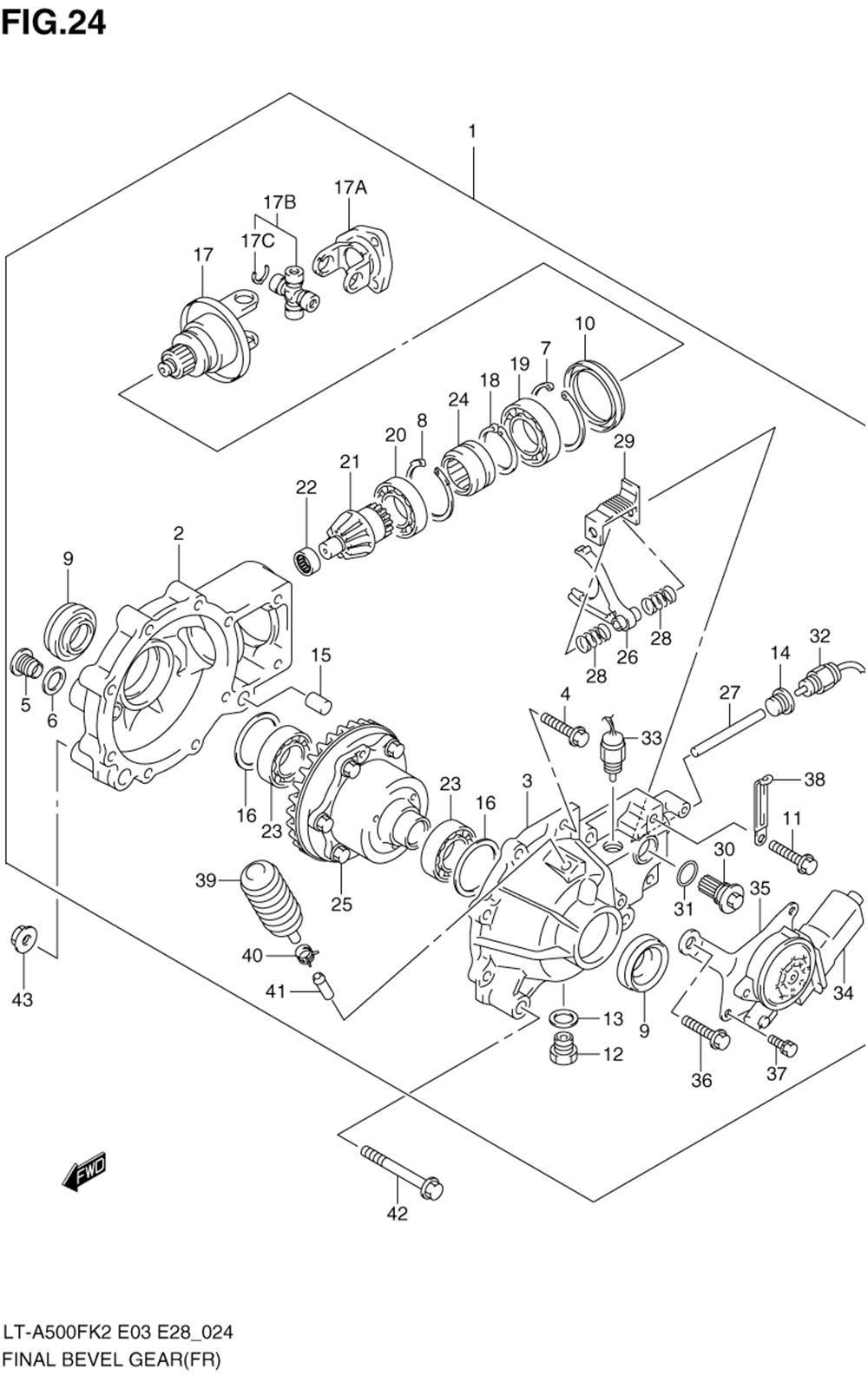

Final bevel gear (front) (model k2)

Suzuki LT-A500F Vinson 4WD

oem код

название

цена

27400-03G00

Case Assy, Front Differential

27451-38FA0

.housing, Final Drive Fr

Cover, Final Dri

.bolt (8x25)

.plug

Шайба

.ring Snap

.ring Snap

.oil Seal

.oil Seal

.bolt (6x12)

.plug

Шайба

.plug

.collar

.shim Set (t:0.70/0.75/0.80/0.85/0.90/0.95/1.00/1.05/1.10/1.15/1.20/1.25/1.30/1.35/1.40/1.45)

27130-03GA0

.yoke Assy

17A

27161-38F11

Yoke, Prop Shaft Joint Rear

17B

27200-19810

Joint Set, Universal Rr

17C

.circlip

.snap Ring

.bearing

.bearing

.pinion, Drive

.bearing

.bearing

.sleeve

.gear Assy

.fork, Shift

.rod, Shift

.spring, Shift

.bracket, Rod

.gear, Shift

.seal

.switch Assy, 2wd

.switch Assy, 4wd

.dvc Assy

.bracket Set, Actuator

.bolt (8x45)

.screw (5x12)

.clip

Case, Breather

Зажим

.pipe, Breather

Bolt (10x110)

Гайка
