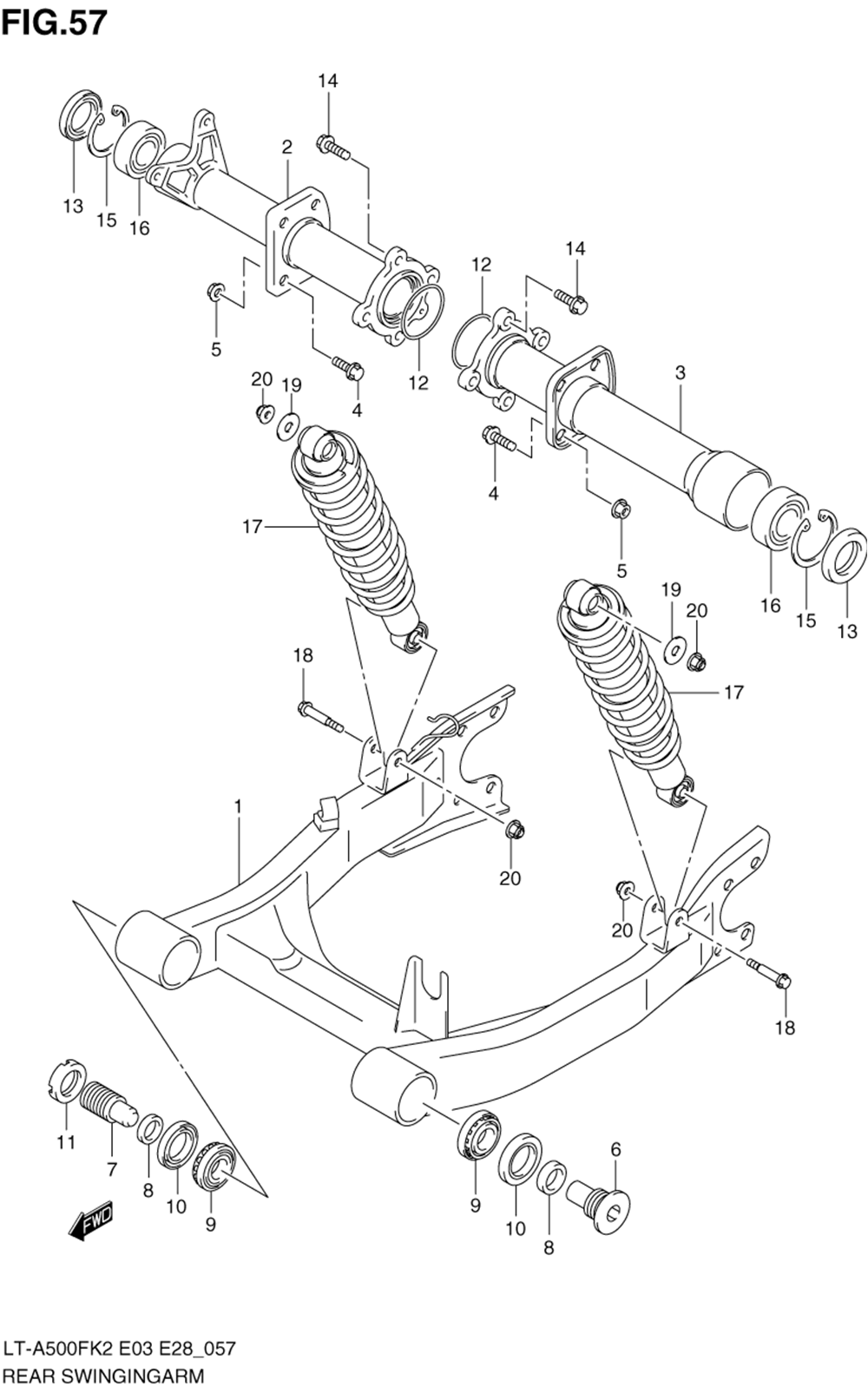

Rear swingingarm

Suzuki LT-A500F Vinson 4WD

Rear swingingarm

#

oem код

название

цена

1

Swingingarm, Rear

Swingingarm, Rear

2-1

Housing, Rear Axle R

Housing, Rear Axle R

3-1

Housing, Rear Axle L

Housing, Rear Axle L

4-1

Bolt, Drive Gear

Bolt, Drive Gear

4-2

Bolt, Rr Swgarm Bracket, R

Bolt, Rr Swgarm Bracket, R

5

Гайка

Гайка

6

Bolt, Pivot L

Bolt, Pivot L

7

Bolt, Pivot R

Bolt, Pivot R

8

Spacer, Pivot

Spacer, Pivot

9

Bearing, Pivot

Bearing, Pivot

10

Seal, Pivot

Seal, Pivot

11

Nut, Pivot

Nut, Pivot

12

O Ring, Rr Axle Housing Rear

O Ring, Rr Axle Housing Rear

13

Seal, Rear Axle Housing

Seal, Rear Axle Housing

14

Bolt, Axle Housing

Bolt, Axle Housing

15

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

16

Bearing, Hub

Bearing, Hub

17

62100-03G00-019

Absorber Assy, Rear Shock

Absorber Assy, Rear Shock

18

Bolt, Rear Shock Abs Fr

Bolt, Rear Shock Abs Fr

19

Washer, Upper Outer

Washer, Upper Outer

20

Nut, Upper

Nut, Upper
