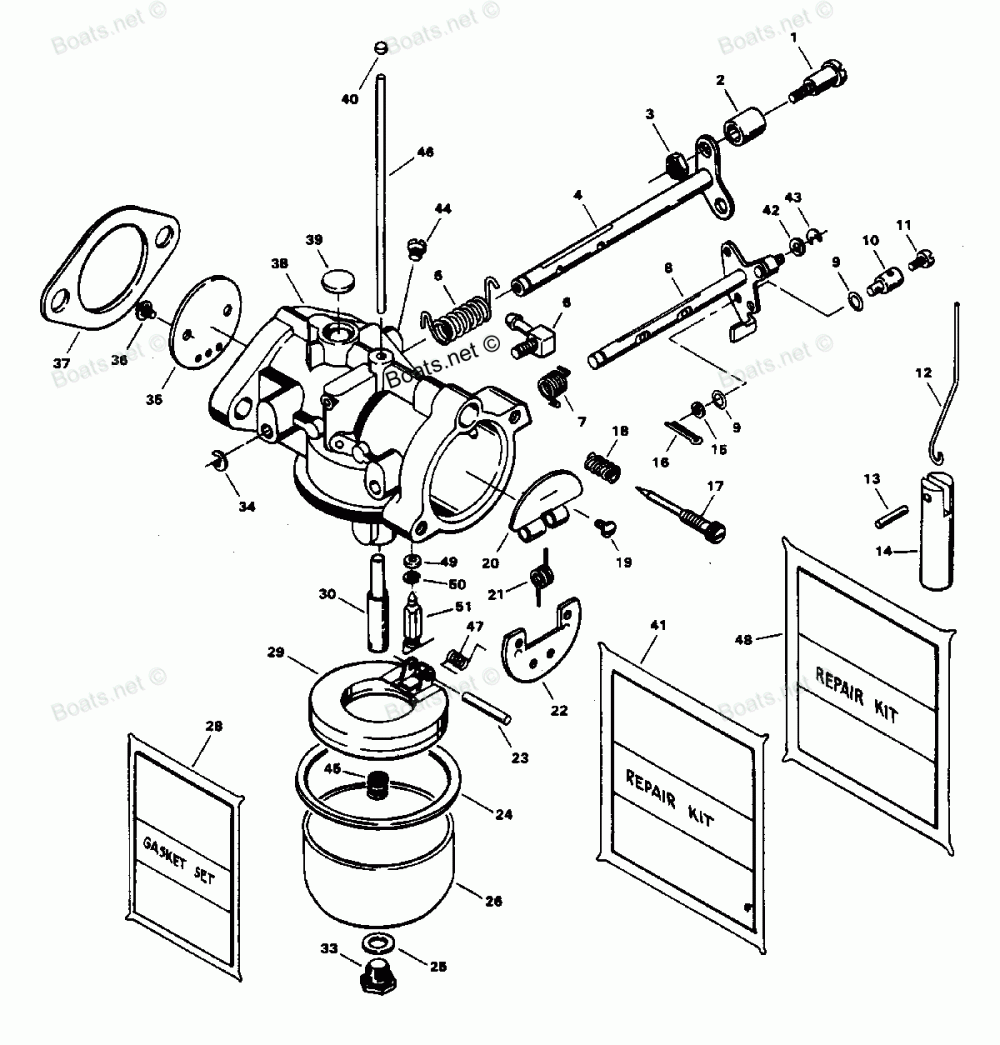

Carburetor Style 2

Force H0257H84E
Force
#oem кодцена
1
F333316
SHAFT, THROTTLE ROLLER
2
F92759
ROLLER, THROTTLE CAM FOLLOWER
3
F1997
LOCK NUT
4
F10132
THROTTLE SHAFT AND LEVER
5
F10144
THROTTLE SHAFT RETURN SPRING
6
F10156
Колено
7
F10143
CHOKE SHAFT RETURN SPRING
8
F10134
CHOKE SHAFT AND LEVER
9
F184579
SEAL, CHOKE ARM SWIVEL
10
F184033-1
SWIVEL, CHOKE ARM
11
F1059
FILL HD SCREW 6 - 32 X 1/4
12
F460925
Шток
13
F2033
GROOVE PIN
14
F391926-1
Плунжер
15
F8088
PLAIN WASHER
16
F1014
Шплинт
17
F10146
IDLE MIXTURE SCREW
18
F10141
IDLE MIXTURE SCREW SPRING
19
F10140
CHOKE SHUTTER RETAINING SCREW AND LOCKWASHER
20
F10129
CHOKE RELIEF VALVE
21
F10130
CHOKE RELIEF VALVE SPRING
22
F10128
CHOKE SHUTTER
23
F10136
FLOAT LEVER PIN
24
F10138
FUEL BOWL GASKET
25
F10090
FUEL BOWL RETAINING SCREW GASKET
26
F10127
FUEL BOWL
28
FK10139
GASKET SET.
29
F10135
Поплавок
30
F10137
MAIN NOZZLE
33
F10147
MAIN FUEL JET STD. .066 SEA LEVEL - 1250 FT.
34
F10131
E-RING, THROTTLE SHAFT RETAINING
35
F10133
THROTTLE SHUTTER
36
F10155
THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER
37
F40906-1
FLANGE GASKET
38
FK602061
CARBURETOR COMPLETE (WE-1)
39
F10153
BODY CHANNEL WELCH PLUG
40
F10152
BODY CHANNEL CUP PLUG
41
FK10151
REPAIR PARTS KIT
42
F8011
PLAIN WASHER (252H3G, 252B3G)
43
F90807
RETAINER, CHOKE ROD FOR 252H3G, 252B3G
44
F10148
JET, NOZZLE VENT
45
F10145
SPRING, NOZZLE COMPRESSION
46
F10176
TUBE, IDLE
47
F10142
SPRING, FLOAT SUPPORT
48
FK10120-1
KIT, VALVE SET REPAIR
49
F10171
SEAT VALVE
50
F10167
RING - RETAINING
51
F10170
VALVE ASSY - INLET
