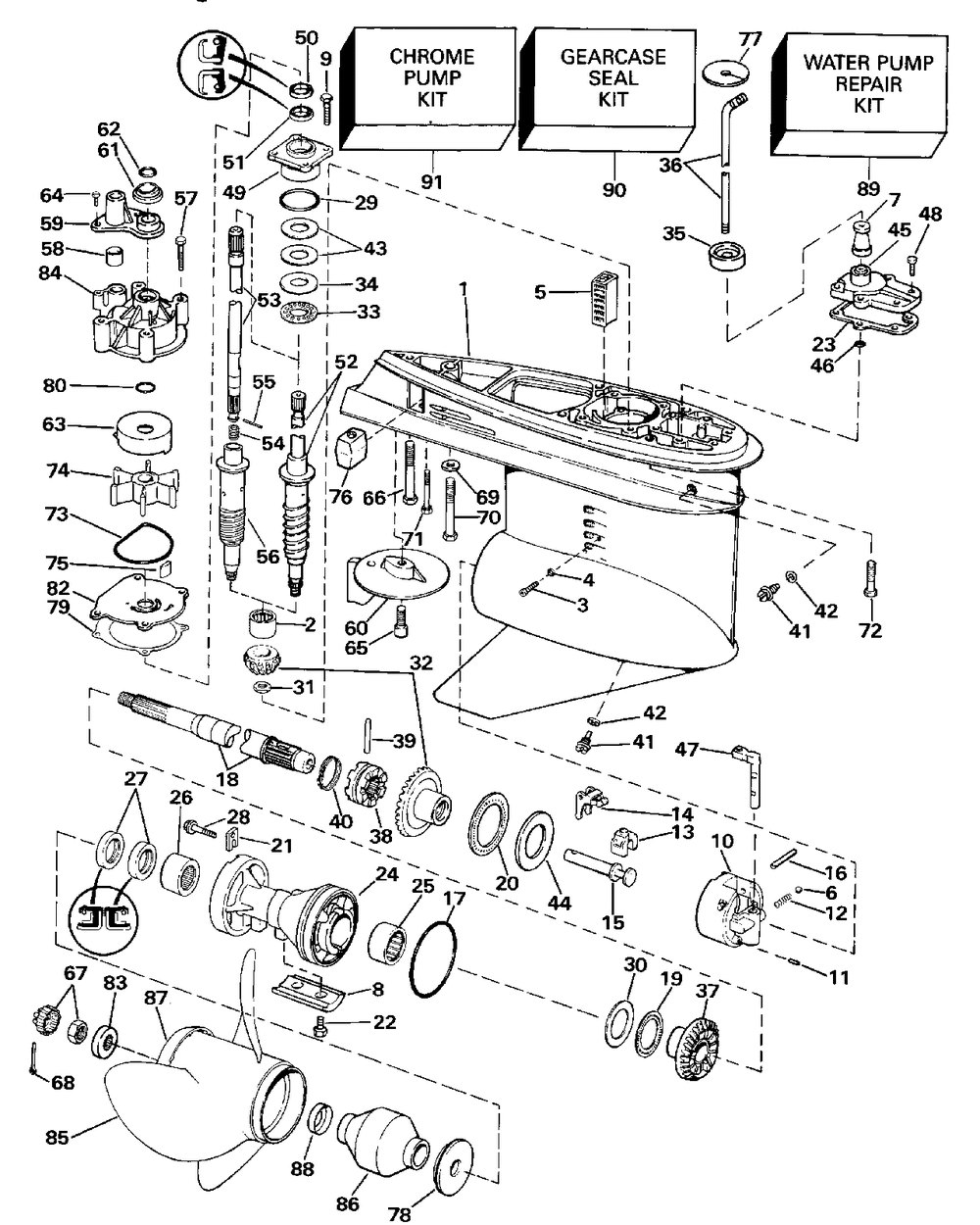

Gearcase late production

Evinrude E100WTLESM
Evinrude
#oem кодцена
1
0439973
Call Tech Svc/qipl ( Prop Shaft Bearing Hsg. With Retaining Tabs)
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0332584
Шайба
5
0321123
Screen, Water Intk
6
0160084
Шарик
7
0321122
Spacer-shift Rod ( 25 In. (635mm) Transom Models)
8
0431708
Анодная пластина
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0331880
Штифт
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
Уплотнительное кольцо
18
0395209
Prop Shaft Ay
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0333957
Retaining Tab
22
0908158
Винт
23
0352165
Прокладка
24
5000074
Hsg Ay, Propshaft ( Prop Shaft Bearing Hsg. With Retaining Tabs)
25
0382407
Подшипник игольчатый
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0350271
Screw, Brg Carrier
29
0354731
Уплотнительное кольцо
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0435123
Gearset, Fwd&pin V4
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395062)
36
0332122
Shift Rod-long ( 20 In. (508mm) Transom Models)
36
0332293
Shift Rod-xl ( 25 In. (635mm) Transom Models)
37
0332725
Gear-rev 12:27
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0333572
Уплотнительное кольцо
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0915954
Detent
48
0302325
Винт
49
0439476
Ds Brg Hsg&seal Ay
50
0329922
Oil Retainer
51
0329923
Oil Retainer
52
5000775
Kit Ayd/shaft-20 ( 20 In. (508mm) Transom Models)
52
5000776
Kit Ay, D/shaft-25 ( 25 In. (635mm) Transom Models)
53
5000626
Kit, Uppr D/s 25" ( 25 In. (635mm) Transom Models)
55
0311538
Pin, Roll ( 25 In. (635mm) Transom Models)
56
0345905
Driveshaft, Lower ( 25 In. (635mm) Transom Models)
57
0335221
Screw ( Also Included In Water Pump Repair Kit 395062)
58
0314008
Grommet ( Also Included In Water Pump Repair Kit 395062)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395062)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 395062)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit 395062)
63
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 395062)
65
0313715
Винт
66
0330263
Винт
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0306314
Lockwasher 4pk
70
0331998
Винт
71
0328096
Screw, Anode
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395062)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395062)
76
0436745
Anode&insert Ay
77
0322302
78
0333592
Thrust Bshg
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kits 395062 & 395060)
80
0332000
( Also Included In Water Pump Repair Kit 395062)
82
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
82
0435526
Cup & Plate Ay ( Chrome Plated)
83
0320570
Spacer Prop Nut
84
0435485
Housing Ay, Pump ( Also Included In Water Pump Repair Kit 395062)
85
0763453
Prop-al, 15.5 X 13
85
0765186
Prop Ay, Al 15x15v6
85
0765187
Prop Ay, Al 14.8x17
85
0765188
Prop Ay, Al 14.5x19
85
0765189
Prop Ay, Al 14.3x21
85
0763470
Prop Al 14.25 X 23
85
0390831
85
0763962
Ssp V6 15x15 Rh
85
0389925
85
0763914
Vipertbx14.75x17rh
85
0763918
Vipertbx14.75x19rh
85
0763922
Vipertbx14.5x21rh
85
0389019
85
0394752
85
0394753
85
0177264
Raker Ii Tbx 22rh
85
0177265
Raker Ii Tbx 24rh
85
0177266
Raker-2/tbx 26 Rh
85
0177267
Rakerii Tbx 28
86
0387157
Prop Hub, 15 Spline
87
0332394
Converg Ring, V6
88
0313926
Гильца
89
5001594
Рем.комплект водяного насоса
90
5006373
Kit Ay, Seal-gc
91
0435526
Cup & Plate Ay
433708
0434427
See Pricebook ( Not Shown 20 In. (508mm) Transom Models)
433709
0434428
See Pricebook ( Not Shown 25 In. (635mm) Transom Models)
