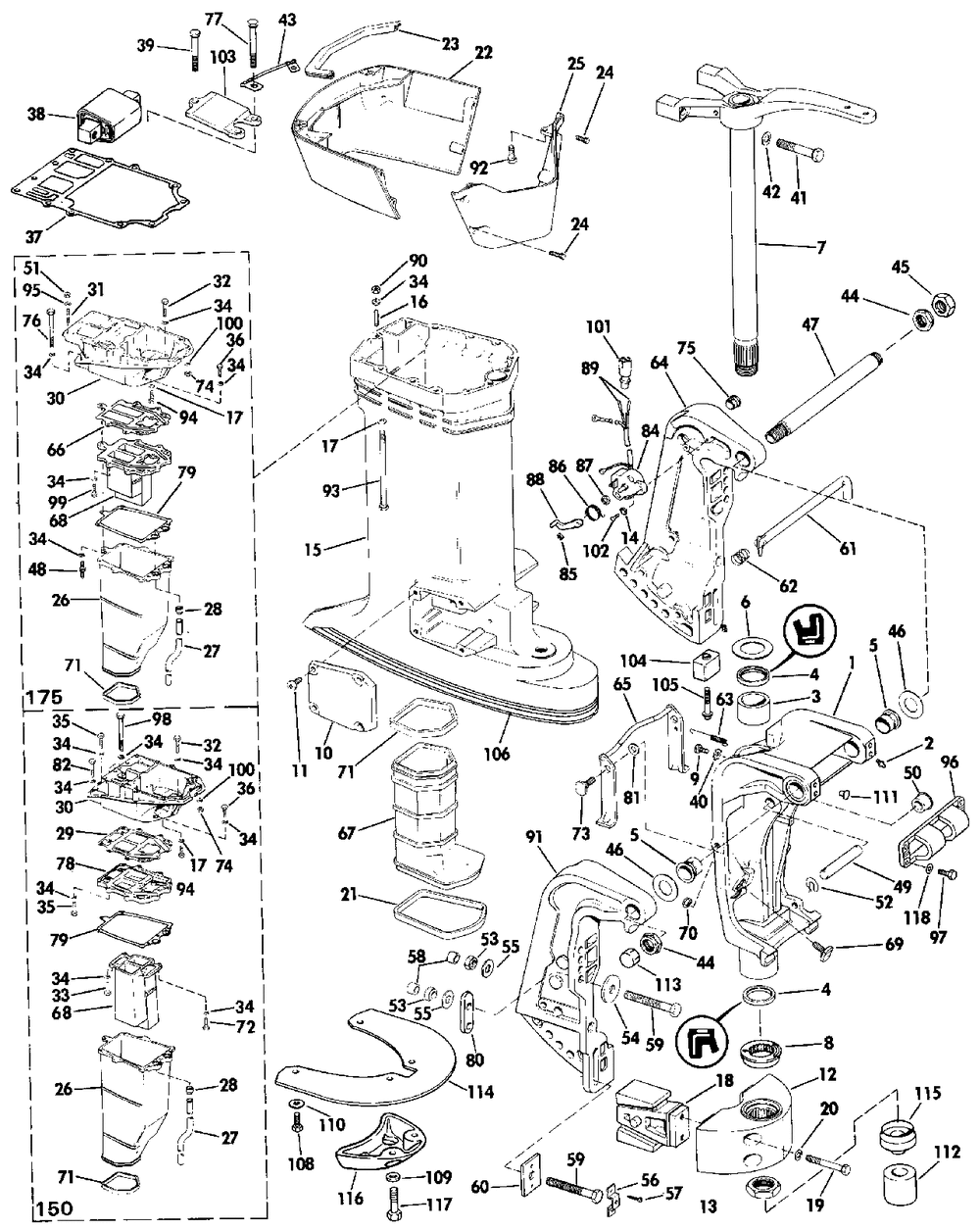

Струбцина

Evinrude E150TXESB
Evinrude
#oem кодцена
1
0432708
( 20 In. (508mm) Transom Models)
1
0432710
Swivel Brkt ( 25 In. (635mm) Transom Models)
2
0313607
Фитинг
3
0320962
Bushing Swiv Bk
4
0320937
Seal Swiv Brkt
5
0321035
Bushing Swiv Bk
6
0320866
Упорная шайба
7
0392518
Steer Arm & Shaft ( 20 In. (508mm) Transom Models)
7
0392519
Steer Arm & Shaft ( 25 In. (635mm) Transom Models)
8
0327696
Keeper
9
0306014
Винт
10
0338942
11
0322000
Винт
12
0340006
Bracket, Mount-20" ( 20 In. (508mm) Transom Models)
12
0338744
Bracket, Mount ( 25 In. (635mm) Transom Models)
13
0320746
Lock Nut
14
0328739
Шайба
15
0435432
Exhst Hsg Ay, 20" ( 20 In. (508mm) Transom Models)
15
0435318
Hsg&stud Ay, Exh. ( 25 In. (635mm) Transom Models)
16
0314956
Stud Int Max
17
0301250
Шайба
18
0434632
Mount Ay, Rubber
18
0434629
Mount Ay, Rubber
19
0328078
Винт
20
0306314
Lockwasher 4pk
21
0320961
Seal, G/c-innr Hsg
22
0390131
( 20 In. (508mm) Transom Models)
22
0983524
Cover & Seal Ay ( 25 In. (635mm) Transom Models)
23
0318258
( 20 In. (508mm) Transom Models)
23
0334824
Seal ( 25 In. (635mm) Transom Models)
24
0328694
Винт
25
0323800
Cvr-exh Hsg-frt
26
0327800
27
0346897
Tube, Water 20" ( 20 In. (508mm) Transom Models)
27
0346898
Tube, Water 25" ( 25 In. (635mm) Transom Models)
28
0305145
Уплотнитель резиновый
29
0324516
Gasket, Plt-adptr
30
0331033
Adapter, Ex Hsg
30
0434157
Adaptor Ay
31
0301185
Шпилька
32
0303459
Винт
33
0306778
Винт
34
0302290
Lockwasher 5 Pk
35
0306418
Винт
36
0306409
Винт
37
0335503
Прокладка
37
0323214
Gasket, Pwhd
38
0395539
Mount Ay, Mtr-uppr
39
0330930
Винт
40
0328701
Гровер
41
0335612
42
0322624
Шайба
43
0583967
44
0335554
Гайка
45
0322376
Nut-steering Wiper ( Recommended To Prevent Corrosion In Salt Water Usage.)
46
0910992
Упорная шайба
47
0321052
Tube, Tilt - Steel
47
0335553
48
0306778
Винт
49
0320792
Pin Tilt Cyl Up
50
0322481
Bushing-upr Tilt
51
0306422
Гайка
52
0321054
Spring Clip 2pk
53
0313623
Гайка
54
0307238
Washer 5 Pk
55
0320248
Washer 5 Pk
56
0318273
Седло
57
0319886
Screw Ret To Plate
58
0318572
Cap-tran Scr 4pk
59
0327053
3" Trnsm Bolt
59
0336676
4 3/4" Trnsm Bolt
59
0354101
6" Trnsm Bolt
60
0318272
Sq Plate 4pk
61
0436541
Rod Ay, Thrust
62
0321053
Spring Thrs Rod
63
0323142
64
0396309
65
0390442
66
0323292
Прокладка
67
0327796
Exhaust Hsg, Inner ( 20 In. (508mm) Transom Models)
67
0327797
Exhaust Hsg ( 25 In. (635mm) Transom Models)
68
0323220
Megaphone
69
0321499
Thrust Pad
70
0552938
Гайка
71
0320936
Seal, Ex Hsg
72
0319883
Screw Exh Cover
73
0329109
Винт
74
0306422
Гайка
75
0321243
Bushing Stern B
76
0303398
Винт
77
0330931
Винт
78
0322313
79
0323222
Прокладка
80
0321735
Support Stern Brkt
81
0330266
Шайба
82
0600014
Cap Screw
84
0583358
85
0511527
Седло
86
0511528
Spring-tilt Trim
87
0320689
Гайка
88
0512211
Рычаг
89
0511469
Pin(10)44-100-1414
90
0328742
Nut-stud
91
0395844
Stern Bracket Ay
92
0328694
Винт
93
0328698
Screw-exh Hsg
94
0302860
Винт
95
0309192
Шайба
96
0125543
Крепление
97
0125544
Винт
98
0315071
Винт
99
0306418
Винт
100
0306470
Стопорная шайба
101
0512746
Conn, 2 Pin Rcpt
102
0308825
Винт
103
0331022
Пластина
104
0433458
Anode & Screw Ay
105
0333350
Винт
106
0211388
Наклейка
106
0332731
Наклейка
108
0910741
Screw ( 25 In. (635mm) Transom Models)
109
0301250
Washer ( 25 In. (635mm) Transom Models)
110
0911201
Washer ( 25 In. (635mm) Transom Models)
111
0334076
Заглушка
112
0911312
Seal ( 25 In. (635mm) Transom Models)
113
0317894
Крышка
114
0345776
Deflector, Spray ( 25 In. (635mm) Transom Models)
115
0912233
Retainer-seal ( 25 In. (635mm) Transom Models)
116
0345776
Deflector, Spray ( 25 In. (635mm) Transom Models)
117
0910736
Screw ( 25 In. (635mm) Transom Models)
118
0125545
Шайба
