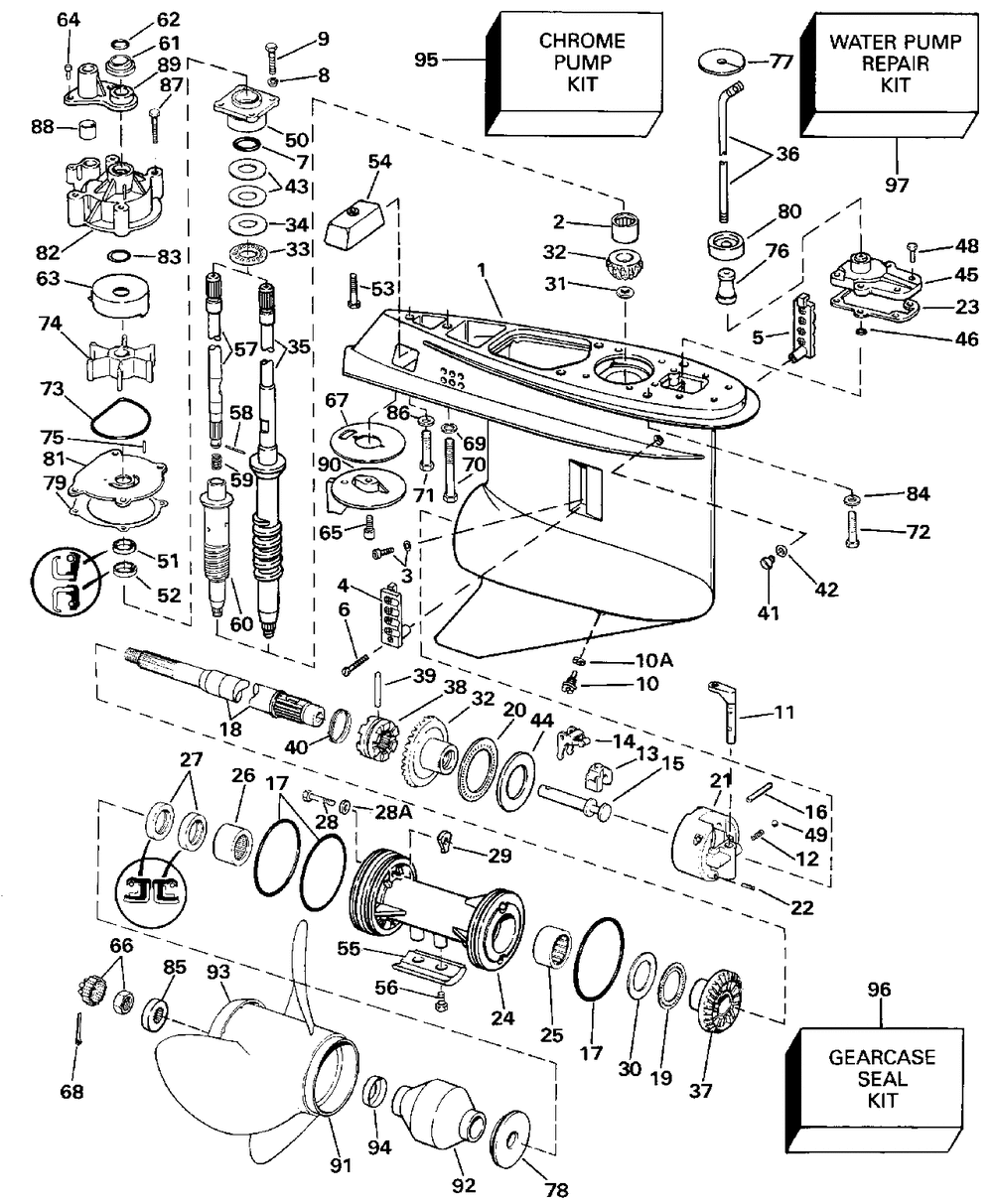

Редуктор

Evinrude E155WTLESM
Evinrude
#oem кодцена
1
0398191
See Pricebook ( For 20 Inch Shaft Use 434417. For 25 Inch Shaft Use 434418.)
2
0391471
Roller Brg
3
0324852
Retaining Screw
4
0331535
Водозаборная решетка
5
0396228
6
0314417
Screw, Slot-pan Hd
7
0354731
Уплотнительное кольцо
9
0317624
Винт
10
0318544
Drain Screw
11
0326807
Detent-shifter
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0326823
Shaft-shifter
16
0317274
Штифт
17
0326849
Уплотнительное кольцо
18
0395209
Prop Shaft Ay
19
0382408
Bearing Ay, Thrust
20
0391473
Подшипник
21
0431735
22
0331880
Штифт
23
0352165
Прокладка
24
0438032
25
0382407
Подшипник игольчатый
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0913432
Винт
29
0332091
Седло
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0394836
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
5000630
( 20 In. (508mm) Models Only)
36
0327658
Shift Rod ( 20 In. (508mm) Models Only)
36
0327659
Shift Rod ( 25 In. (635mm) Models Only)
37
0327661
Шестерня -обратный ход
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0333572
Уплотнительное кольцо
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0326733
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
48
0335020
Screw, 1/4-20
49
0160084
Шарик
50
0439476
Ds Brg Hsg&seal Ay
51
0329922
Oil Retainer
52
0329923
Oil Retainer
53
0328096
Screw, Anode
54
0397768
Анодная пластина
55
0431708
Анодная пластина
56
0908158
Винт
57
5000625
( 25 In. (635mm) Models Only)
58
0311538
Pin, Roll ( 25 In. (635mm) Models Only)
59
0335684
Spring ( 25 In. (635mm) Models Only)
60
0346005
( 25 In. (635mm) Models Only)
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 395062)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit 395062)
63
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 395062)
65
0313715
Винт
66
0398042
Prop Nut & Keeper
67
0331409
Уплотнение
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0331999
Винт
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395062)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395062)
76
0321122
Spacer-shift Rod ( 25 In. (635mm) Models Only)
77
0322302
78
0333592
Thrust Bshg
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kits 395060 & 395062)
80
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395062)
81
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
81
0435526
Cup & Plate Ay ( Chrome Plated)
82
0435485
Housing Ay, Pump ( Also Included In Water Pump Repair Kit 395062)
83
0332000
( Also Included In Water Pump Repair Kit 395062)
84
0330266
Шайба
85
0320570
Spacer Prop Nut
86
0326785
Шайба
87
0335221
Screw ( Also Included In Water Pump Repair Kit 395062)
88
0314008
Grommet ( Also Included In Water Pump Repair Kit 395062)
89
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395062)
90
0338742
Tab, Trim-std
91
0763453
Prop-al, 15.5 X 13
91
0765186
Prop Ay, Al 15x15v6
91
0765187
Prop Ay, Al 14.8x17
91
0765188
Prop Ay, Al 14.5x19
91
0765189
Prop Ay, Al 14.3x21
91
0763470
Prop Al 14.25 X 23
91
0390831
91
0389925
91
0763914
Vipertbx14.75x17rh
91
0763918
Vipertbx14.75x19rh
91
0763922
Vipertbx14.5x21rh
91
0389019
91
0390725
92
0387157
Prop Hub, 15 Spline
93
0332394
Converg Ring, V6
94
0313926
Гильца
95
0435526
Cup & Plate Ay
96
5006373
Kit Ay, Seal-gc
97
5001594
Рем.комплект водяного насоса
10A
0333572
Уплотнительное кольцо
28A
0328743
Шайба
332584
0332584
Washer 5pk ( Not Shown)
398132
0398132
( Not Shown 20 In. (508mm) Models Only)
398133
0398133
( Not Shown 25 In. (635mm) Models Only)
433634
5000634
( Not Shown 25 In. (635mm) Models Only)
