Карбюратор
Карбюратор

Карбюратор

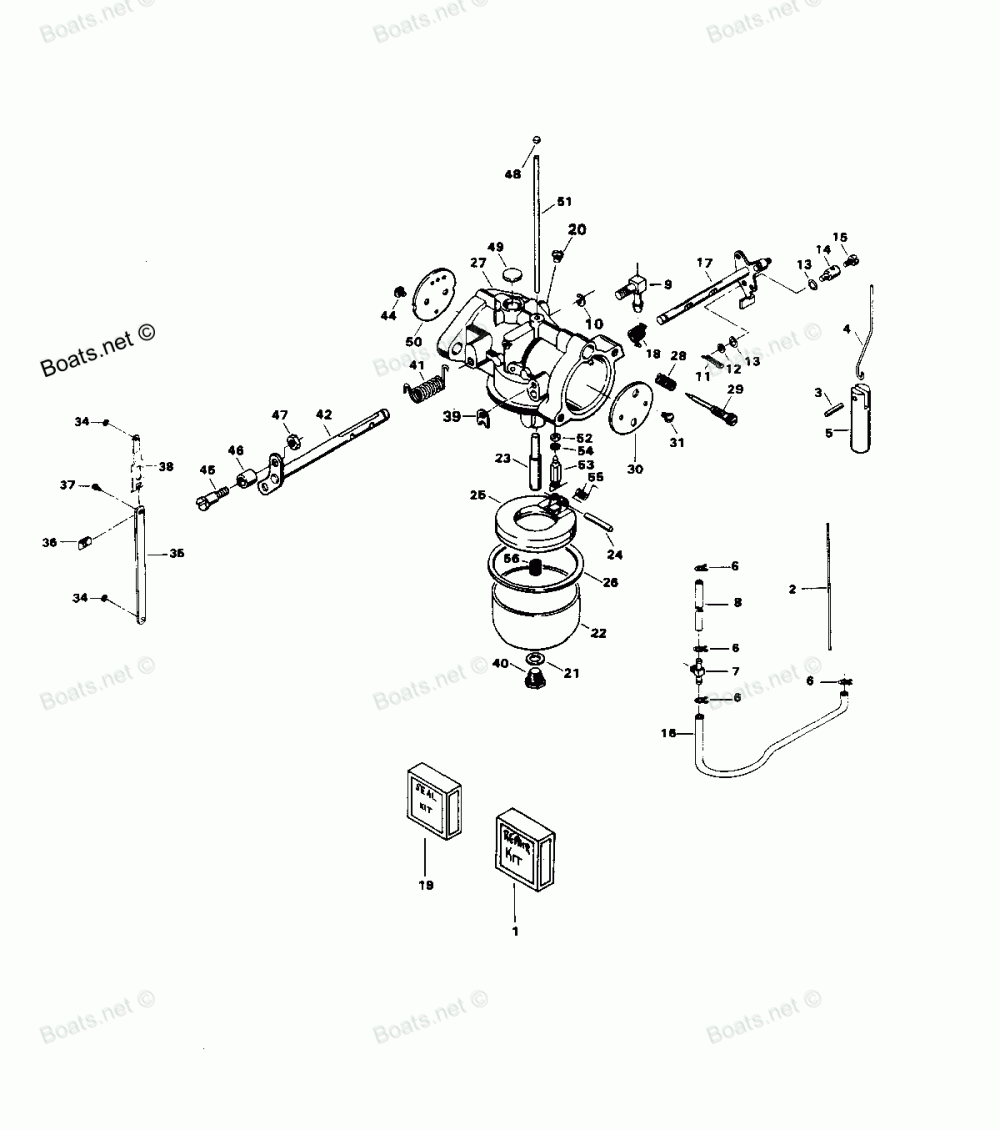

Force H0908H83A

Карбюратор

#

oem код

название

цена

1

REPAIR PARTS KIT.

REPAIR PARTS KIT.

2

LINK, CHOKE

LINK, CHOKE

3

GROOVE PIN

GROOVE PIN

4

CHOKE ROD

CHOKE ROD

5

Плунжер

Плунжер

6

Зажим

Зажим

7

FUEL FITTING (BOTTOM CARBURETOR)

FUEL FITTING (BOTTOM CARBURETOR)

8

Трубопровод

Трубопровод

9

ELBOW (TOP CARBURETOR)

ELBOW (TOP CARBURETOR)

10

Е-Кольцо

Е-Кольцо

11

Шплинт

Шплинт

12

PLAIN WASHER

PLAIN WASHER

13

O-RING SEAL

O-RING SEAL

14

SWIVEL, TOP CARBURETOR

SWIVEL, TOP CARBURETOR

15

FILL HD SCREW, 6 - 32 X 1/4

FILL HD SCREW, 6 - 32 X 1/4

16

Трубопровод

Трубопровод

17

CHOKE SHAFT AND LEVER

CHOKE SHAFT AND LEVER

18

CHOKE SHAFT RETURN SPRING

CHOKE SHAFT RETURN SPRING

19

VALVE SEAT KIT

VALVE SEAT KIT

20

JET - NOZZLE VENT

JET - NOZZLE VENT

21

FUEL BOWL RETAINING GASKET

FUEL BOWL RETAINING GASKET

-

SWIVEL, CHOKE ROD (BOTTOM CARBURETOR) (NOT SHOWN)

SWIVEL, CHOKE ROD (BOTTOM CARBURETOR) (NOT SHOWN)

-

GASKET SET (NOT SHOWN)

GASKET SET (NOT SHOWN)

22

FUEL BOWL

FUEL BOWL

23

MAIN NOZZLE

MAIN NOZZLE

24

FLOAT LEVER PIN

FLOAT LEVER PIN

25

Поплавок

Поплавок

26

FUEL BOWL GASKET

FUEL BOWL GASKET

27

CARBURETOR COMPLETE (WE-6-1) TOP

CARBURETOR COMPLETE (WE-6-1) TOP

-

CARBURETOR COMPLETE (WE-6-2) BOTTOM

CARBURETOR COMPLETE (WE-6-2) BOTTOM

28

IDLE MIXTURE SCREW SPRING

IDLE MIXTURE SCREW SPRING

29

IDLE MIXTURE SCREW

IDLE MIXTURE SCREW

30

CHOKE, SHUTTER

CHOKE, SHUTTER

31

CHOKE AND THROTTLE SHUTTER SCREW

CHOKE AND THROTTLE SHUTTER SCREW

34

Стопорное кольцо

Стопорное кольцо

35

THROTTLE TIE BAR W/SWIVEL

THROTTLE TIE BAR W/SWIVEL

36

TIE BAR RETAINER NUT

TIE BAR RETAINER NUT

37

FILL HD SCREW, 8 - 32 X 3/8

FILL HD SCREW, 8 - 32 X 3/8

38

TIE BAR END W/SWIVEL

TIE BAR END W/SWIVEL

39

CLIP, CHOKE SHAFT

CLIP, CHOKE SHAFT

40

MAIN FUEL JET STD. .086 SEA LEVEL

MAIN FUEL JET STD. .086 SEA LEVEL

-

MAIN FUEL JET OPT. .084 2500 - 5000 FT.

MAIN FUEL JET OPT. .084 2500 - 5000 FT.

-

MAIN FUEL JET OPT. .080 5000 - 7500 FT.

MAIN FUEL JET OPT. .080 5000 - 7500 FT.

-

MAIN FUEL JET OPT. .076 7500 FT. AND UP

MAIN FUEL JET OPT. .076 7500 FT. AND UP

41

THROTTLE SHAFT RETURN SPRING

THROTTLE SHAFT RETURN SPRING

42

THROTTLE SHAFT AND LEVER

THROTTLE SHAFT AND LEVER

44

Винт

Винт

45

THROTTLE ROLLER SHAFT

THROTTLE ROLLER SHAFT

46

THROTTLE ROLLER

THROTTLE ROLLER

47

STOP NUT, 8 - 32

STOP NUT, 8 - 32

48

BODY CHANNEL CUP PLUG

BODY CHANNEL CUP PLUG

49

BODY CHANNEL WELCH PLUG

BODY CHANNEL WELCH PLUG

50

THROTTLE SHUTTER

THROTTLE SHUTTER

51

IDLE TUBE

IDLE TUBE

52

VALVE SEAT

VALVE SEAT

53

Клапан

Клапан

54

RETAINING RING, VALVE

RETAINING RING, VALVE

55

SPRING, FLOAT SUPPORT

SPRING, FLOAT SUPPORT

56

SPRING, NOZZLE COMPRESSION

SPRING, NOZZLE COMPRESSION
