ТОПЛИВНЫЙ НАСОС
ТОПЛИВНЫЙ НАСОС

ТОПЛИВНЫЙ НАСОС

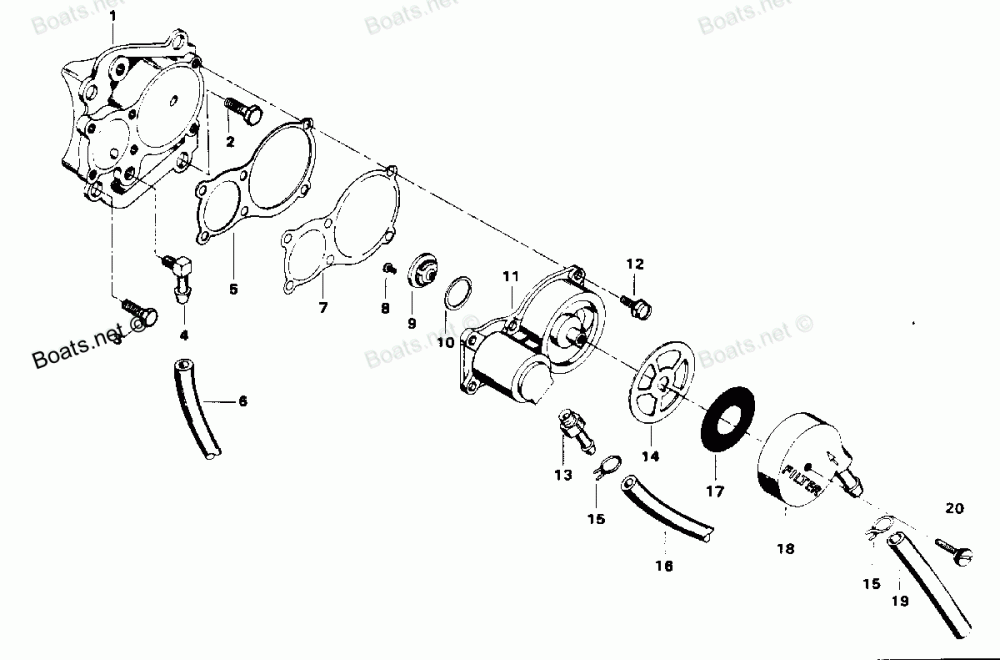

Force H0353H82P

ТОПЛИВНЫЙ НАСОС

#

oem код

название

цена

1

FUEL PUMP COVER

FUEL PUMP COVER

2

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

3

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

4

Колено

Колено

5

FUEL PUMP GASKET

FUEL PUMP GASKET

6

FUEL PUMP IMPULSE HOSE

FUEL PUMP IMPULSE HOSE

7

FUEL PUMP DIAPHRAGM

FUEL PUMP DIAPHRAGM

8

ROUND HD SCREW, 6 32 X 1/4

ROUND HD SCREW, 6 32 X 1/4

9

FUEL PUMP VALVE

FUEL PUMP VALVE

10

FUEL PUMP VALVE GASKET (CENTER VALVE)

FUEL PUMP VALVE GASKET (CENTER VALVE)

11

FUEL PUMP BODY

FUEL PUMP BODY

12

FILL HD SCREW 1/4 W/LOCKWASHER, 20 X 3/4

FILL HD SCREW 1/4 W/LOCKWASHER, 20 X 3/4

13

Колено

Колено

14

FUEL SEDIMENT BOWL GASKET

FUEL SEDIMENT BOWL GASKET

15

FUEL LINE CLAMPS

FUEL LINE CLAMPS

16

FUEL LINE, PUMP TO CARBURETOR

FUEL LINE, PUMP TO CARBURETOR

17

FUEL PUMP SCREEN

FUEL PUMP SCREEN

18

FUEL SEDIMENT BOWL

FUEL SEDIMENT BOWL

19

HOSE BUSHING TO FUEL PUMP

HOSE BUSHING TO FUEL PUMP

20

SCREW, FUEL BOWL

SCREW, FUEL BOWL
