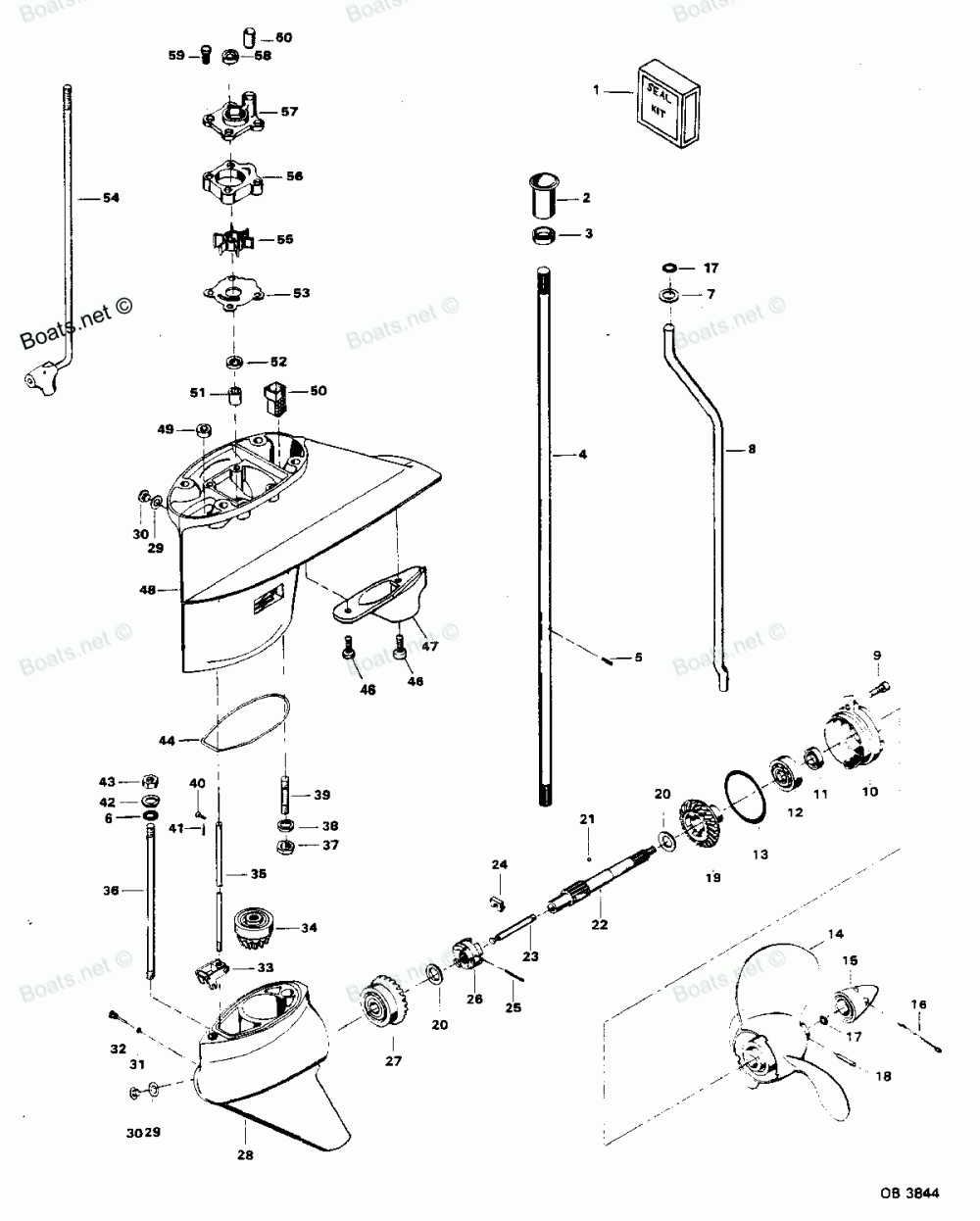

Gear Housing

Force H0353H82P

Gear Housing

#

oem код

название

цена

1

GEAR HOUSING SEAL KIT

GEAR HOUSING SEAL KIT

2

чехол

чехол

3

Седло

Седло

4

DRIVESHAFT

DRIVESHAFT

-

DRIVESHAFT

DRIVESHAFT

5

DRIVE PIN, WATER PUMP IMPELLER

DRIVE PIN, WATER PUMP IMPELLER

6

Уплотнение

Уплотнение

7

PLAIN WASHER

PLAIN WASHER

8

INLET WATER LINE (LONG LEG)

INLET WATER LINE (LONG LEG)

-

INLET WATER LINE (STD. LEG)

INLET WATER LINE (STD. LEG)

9

HEX SOCKET HD CAP SCREW, S.S., 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREW, S.S., 5/16 - 18 X 9/16

10

PROPELLER SHAFT BEARING CAGE

PROPELLER SHAFT BEARING CAGE

11

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

12

BALL BEARING, PROPELLER SHAFT

BALL BEARING, PROPELLER SHAFT

13

SEAL, PROPELLER SHAFT BEARING CAGE

SEAL, PROPELLER SHAFT BEARING CAGE

14

STANDARD PROP (ACCESSORY ITEM)

STANDARD PROP (ACCESSORY ITEM)

15

PROPELLER NUT

PROPELLER NUT

16

COTTER PIN, S.S., 1/8 - 1/2

COTTER PIN, S.S., 1/8 - 1/2

17

SEAL, PROPELLER NUT

SEAL, PROPELLER NUT

18

PROPELLER PIN, PACK OF 6

PROPELLER PIN, PACK OF 6

19

BEVEL GEAR REAR W/BEARING

BEVEL GEAR REAR W/BEARING

20

THRUST WASHER, BEVEL GEAR

THRUST WASHER, BEVEL GEAR

21

BALL, PROPELLER SHAFT

BALL, PROPELLER SHAFT

22

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

23

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

24

Вилка карданного вала

Вилка карданного вала

25

Пружинный Штифт

Пружинный Штифт

26

Муфта сцепления

Муфта сцепления

27

BEVEL GEAR FRONT W/BEARING

BEVEL GEAR FRONT W/BEARING

28

GEAR HOUSING LOWER W/THRUST BEARING CUP

GEAR HOUSING LOWER W/THRUST BEARING CUP

-

GEAR HOUSING COMPLETE (NOT SHOWN)

GEAR HOUSING COMPLETE (NOT SHOWN)

29

WASHER, GEAR HOUSING PLUG

WASHER, GEAR HOUSING PLUG

30

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

31

SEAL, GEAR SHIFT ARM PIN

SEAL, GEAR SHIFT ARM PIN

32

GEAR SHIFT ARM PIVOT PIN

GEAR SHIFT ARM PIVOT PIN

33

GEAR SHIFT ARM

GEAR SHIFT ARM

34

BEVEL PINION W/BEARING AND CUP

BEVEL PINION W/BEARING AND CUP

35

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

36

STUD, LONG

STUD, LONG

37

NUT, 3/8 - 16

NUT, 3/8 - 16

38

PLAIN WASHER

PLAIN WASHER

39

STUD, SHORT

STUD, SHORT

40

PIN, GEAR SHIFT ROD LOWER

PIN, GEAR SHIFT ROD LOWER

41

Шплинт

Шплинт

42

Стопорная шайба

Стопорная шайба

43

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

44

SEAL, GEAR HOUSING

SEAL, GEAR HOUSING

46

HEX HD M. SC. 1/4 - 20 X 7/8

HEX HD M. SC. 1/4 - 20 X 7/8

47

SNOUT, EXHAUST

SNOUT, EXHAUST

48

GEAR HOUSING UPPER

GEAR HOUSING UPPER

49

SEAL, SHIFT ROD LOWER

SEAL, SHIFT ROD LOWER

50

SCREEN, WATER INLET

SCREEN, WATER INLET

51

BEARING, DRIVESHAFT UPPER

BEARING, DRIVESHAFT UPPER

52

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

53

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

54

GEAR SHIFT INTERMEDIATE (LONG LEG)

GEAR SHIFT INTERMEDIATE (LONG LEG)

-

GEAR SHIFT ROD INTERMEDIATE (STD. LEG)

GEAR SHIFT ROD INTERMEDIATE (STD. LEG)

55

WATER PUMP IMPELLER

WATER PUMP IMPELLER

56

WATER PUMP BODY

WATER PUMP BODY

57

Крышка водяной помпы

Крышка водяной помпы

58

DRIVESHAFT SEAL

DRIVESHAFT SEAL

59

HEX HD SCREW, 1/4 - 20 X 1 - 1/4

HEX HD SCREW, 1/4 - 20 X 1 - 1/4

60

SEAL, INLET WATER LINE, LOWER

SEAL, INLET WATER LINE, LOWER
