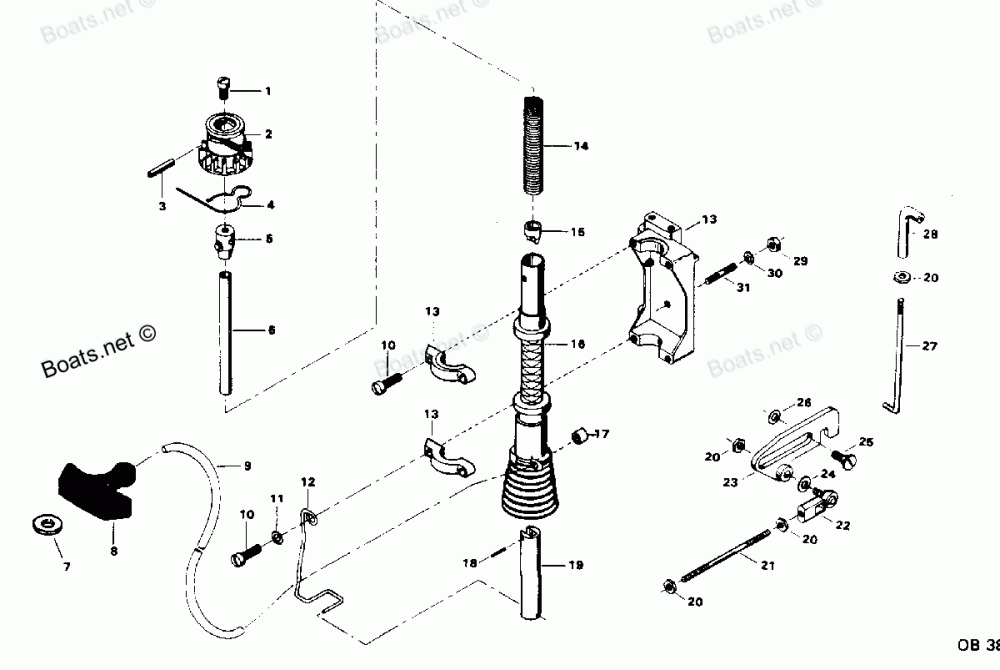

Hand Starter Каталог оригинальных запчастей для лодочных моторов Force H0353H82P (1982)

Hand Starter

Force H0353H82P

oem код

название

цена

F1097

FILL HD SCREW, 1/4 - 20 X 3/8

F487674

STARTER PINION GEAR

F40425

STARTER PINION PIN

F485424

SPRING, STARTER PINION

F901739

STARTER REWIND SPRING DRIVE

F328710

STARTER ROPE GUIDE POST

Шайба

STARTER ROPE HANDLE

Шнур Стартера

FILL HD SCREW, 1/4 - 20 X 7/8

F8060

EXTERNAL TOOTH LOCKWASHER

F328455

STATER ROPE GUIDE

A486427

STARTER MOUNTING BRACKET
W/CAPS AND ILLUS. 10

F901970

SPRING STARTER REWIND

F191737

RETAINER, STARTER SPRING

STARTER SPOOL

END, STARTER ROPE

Пружинный Штифт

STARTER RETAINER EXTENSION

HEX NUT, 10 - 32

LINK

BALL JOINT W/BEARING

STARTER INTERLOCK LOCK

F8058

INTERNAL TOOTH LOCKWASHER

F369887

INTERLOCK SCREW

F8028

PLAIN WASHER

F486531

STARTER INTERLOCK ROD

F485971

STARTER SPRING EXTENSION

HEX NUT, 5/16 - 18

SPRING LOCKWASHER

Шпилька

EMERGENCY STARTER ROPE (NOT SHOWN) W/HANDLE
