Motor Leg

Force H0858B82E

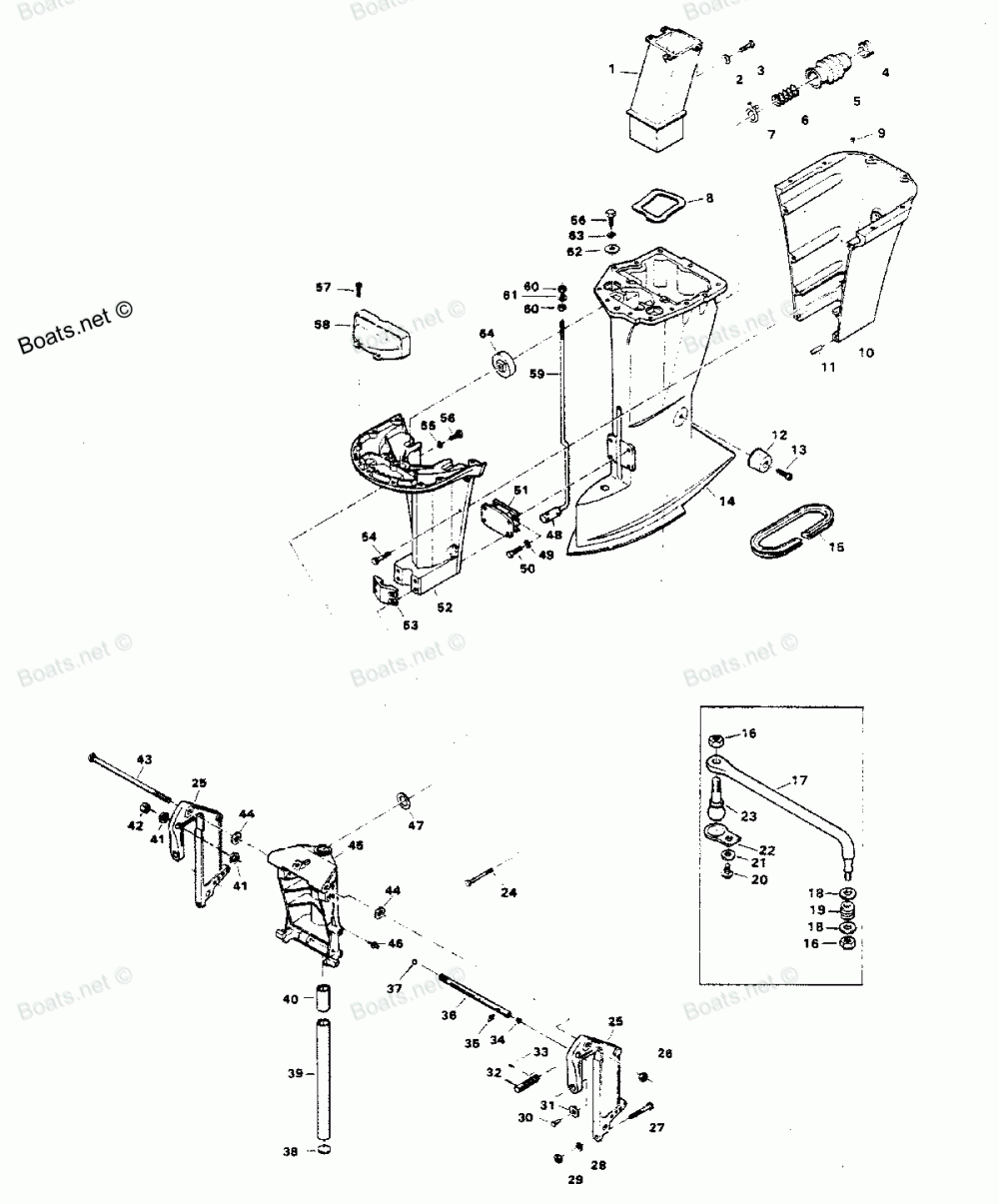

Motor Leg

#

oem код

название

цена

1

EXHAUST TUBE

EXHAUST TUBE

2

SPRING LOCKWASHER

SPRING LOCKWASHER

3

HEX SLOT HD SCREW, 1/4 - 20 X 3/4

HEX SLOT HD SCREW, 1/4 - 20 X 3/4

4

Вставка

Вставка

5

BOOT, IDLE EXHAUST

BOOT, IDLE EXHAUST

6

Пружина

Пружина

7

Зажим

Зажим

8

SEAL EXHAUST TUBE

SEAL EXHAUST TUBE

9

Заглушка

Заглушка

10

MOTOR LEG COVER REAR

MOTOR LEG COVER REAR

11

Пружинный Штифт

Пружинный Штифт

12

SHOCK MOUNT SIDE

SHOCK MOUNT SIDE

13

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 9/16

14

MOTOR LEG

MOTOR LEG

15

SEAL, MOTOR LEG

SEAL, MOTOR LEG

16

STOP NUT, 3/8 - 24

STOP NUT, 3/8 - 24

17

STEERING LINK

STEERING LINK

18

PLAIN WASHER

PLAIN WASHER

19

Пружина

Пружина

-

INSTALLATION INSTRUCTIONS (FOR 5H094 STEERING LINK KIT)

INSTALLATION INSTRUCTIONS (FOR 5H094 STEERING LINK KIT)

20

PAN HD SCREW, 8 - 32 X 1/4

PAN HD SCREW, 8 - 32 X 1/4

21

SPRING LOCKWASHER

SPRING LOCKWASHER

22

Седло

Седло

23

STEERING BALL STUD

STEERING BALL STUD

24

HEX BOLT, 5/16 - 18 X 1-3/4

HEX BOLT, 5/16 - 18 X 1-3/4

25

STERN BRACKET

STERN BRACKET

26

LOCK NUT, 1/2 - 20

LOCK NUT, 1/2 - 20

27

HEX HD SCREW, 3/8 - 16 X 3

HEX HD SCREW, 3/8 - 16 X 3

28

PLAIN WASHER

PLAIN WASHER

29

HEX NUT, 3/8 - 16

HEX NUT, 3/8 - 16

30

Шпилька

Шпилька

31

CLAMP SCREW FOOT

CLAMP SCREW FOOT

32

CLAMP SCREW

CLAMP SCREW

33

Пружинный Штифт

Пружинный Штифт

34

Заглушка

Заглушка

35

Масленка

Масленка

36

TUBE, STEERING SUPPORT

TUBE, STEERING SUPPORT

37

SEAL, STEERING SUPPORT TUBE

SEAL, STEERING SUPPORT TUBE

38

WELCH PLUG

WELCH PLUG

39

KINGPIN

KINGPIN

40

Подшипник

Подшипник

41

NUT, STEERING SUPPORT TUBE

NUT, STEERING SUPPORT TUBE

42

Крышка

Крышка

43

STERN BRACKET PIVOT BOLT

STERN BRACKET PIVOT BOLT

44

FRICTION WASHER

FRICTION WASHER

45

SWIVEL BRACKET

SWIVEL BRACKET

46

Масленка

Масленка

47

Шайба

Шайба

48

COUPLER, GEARSHIFT ROD UPPER

COUPLER, GEARSHIFT ROD UPPER

49

SPRING LOCKWASHER

SPRING LOCKWASHER

50

HEX BOLT, 5/16 - 18 X 7/8

HEX BOLT, 5/16 - 18 X 7/8

51

SHOCK MOUNT, LOWER

SHOCK MOUNT, LOWER

52

LEG COVER, FRONT

LEG COVER, FRONT

53

KINGPIN CAP

KINGPIN CAP

54

HEX HD SCREW, 1/4 - 20 X 1-1/4

HEX HD SCREW, 1/4 - 20 X 1-1/4

55

SPRING LOCKWASHER

SPRING LOCKWASHER

56

HEX HD SCREW, 3/8 - 16 X 3/4

HEX HD SCREW, 3/8 - 16 X 3/4

57

HEX HD SCREW, 10 - 24 X 1/2

HEX HD SCREW, 10 - 24 X 1/2

58

BAFFLE, AIR INTAKE

BAFFLE, AIR INTAKE

59

GEAR SHIFT ROD UPPER

GEAR SHIFT ROD UPPER

60

LOCK NUT, 5/16 - 18

LOCK NUT, 5/16 - 18

61

PLAIN WASHER

PLAIN WASHER

62

WASHER SHOCK MOUNT UPPER

WASHER SHOCK MOUNT UPPER

63

PLAIN WASHER

PLAIN WASHER

64

SHOCK MOUNT, UPPER

SHOCK MOUNT, UPPER
