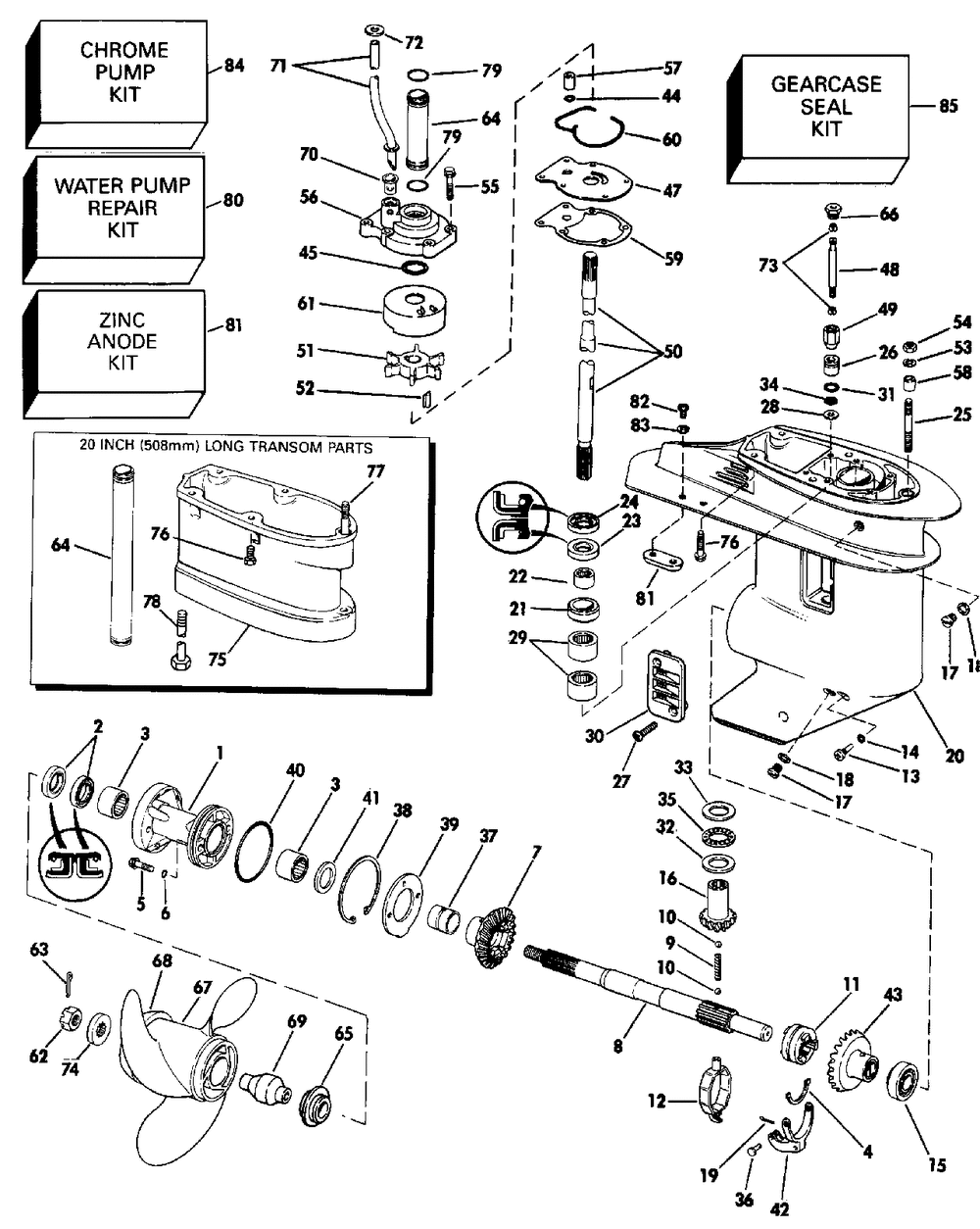

Редуктор

Evinrude E35RLESS
Evinrude
#oem кодцена
1
5008160
Корпус
2
0321453
Сальник
3
0376856
Brg Ay, Needle
4
0328311
Зажим
5
0319743
Sst Screw
6
0332584
Шайба
7
0327655
Gear, Rev 13:28
8
0439143
Вал гребново винта
9
0327070
Пружина
10
0316506
Шарик фиксирующий
11
0434765
Lever&shifter Ay
12
0390023
Yoke & Connector
13
0308376
Винт
14
0332584
Шайба
15
0386186
Roller Brg Ay
16
0328313
Pinion, Gear
17
0307551
Пробка сливная
18
0333572
Уплотнительное кольцо
19
0303049
Шплинт
20
0434030
Kit, G-case Hsg ( All 20/25/30/35 Except 15" Length Rope Start 20/25 Models Dose Not Include Driveshaft)
20
0434031
Gearcase Ay ( All 20/25 15" Length Rope Start Models Dose Not Include Driveshaft)
21
0322018
Bearing Hsg Dshaft
22
0386473
Подшипник
23
0321928
Oil Ret Brg Hsg Ds
24
0332261
Oil Retainer
25
0320173
Ff Stud
26
0326361
Втулка
27
0325539
Винт
28
0321738
Шайба
29
0376856
Brg Ay, Needle
32
0330441
Упорная шайба
33
0327716
Thrust Washer-upr
34
0301877
Кольцо
35
0388027
Thrust Brg Ay
36
0302504
Штифт
37
0319635
Ff Bushing Rev Gr
38
0319747
Ff Retaining Ring
39
0319746
Ff Retainer Plate
40
0338518
Уплотнительное кольцо
41
0319684
Ff Thrust Washer
42
0434765
Lever&shifter Ay
43
0392475
Gear & Bushing, Fwd
44
0301877
O Ring ( Also Included In Water Pump Repair Kit 393630)
45
0554545
O Ring ( Also Included In Water Pump Repair Kits 393630 & 393509)
47
0328755
Plate ( Also Included In Water Pump Repair Kit 393630)
48
0331479
Shift Rod-lower
49
0331465
Nut, Shift Connctr
50
0341636
Driveshaft, 15"
50
0341637
Driveshaft, 20" ( 20 Inch (508mm) Long Transom Parts)
51
0395289
Imp & Key ( Also Included In Water Pump Repair Kit 393630)
52
0344470
Key, Impeller-blk ( Also Included In Water Pump Repair Kit 393630)
53
0301250
Шайба
53
0306470
Lockwasher ( 20 Inch (508mm) Long Transom Parts)
54
0306422
Nut ( 20 Inch (508mm) Long Transom Parts)
55
0324960
Screw ( Also Included In Water Pump Repair Kit 393630)
56
0393632
Imp Hsg & Bush Ay
57
0328754
Втулка
58
0319785
Bushing ( 20 Inch (508mm) Long Transom Parts)
59
0325537
Gasket ( Also Included In Water Pump Repair Kits 393630 & 393509)
60
0328753
Seal ( Also Included In Water Pump Repair Kits 393630 & 393509)
61
0328751
Cup, Imp Hsg ( Also Included In Water Pump Repair Kit 393630)
62
0319891
Ff Prop Nut
63
0320785
Ff Cotter Pin 5pk
64
0326693
Spacer, Long ( 20 Inch (508mm) Long Transom Parts)
65
0335420
Bushing, Thrust
66
0325624
Connctr, Shft Rod
67
0387320
Al Prop 35hp 7p
67
0391064
Prop, Al 10x17
67
0765049
Prop, Al 10.5x11 Rh
67
0778863
Prop, Al/10.3x13
67
0765048
Prop, Al 11 X 9 Rh
67
0765176
Prop, Ss-10x11 3bld
67
0763486
Prop, Al 10 X 15
67
0765178
Prop, Sst 10x13
67
0765180
Prop Ay, Ss-10x15-3
68
0332542
Converging Ring
69
0392881
Bushing Ay
71
0395339
Wtr Tube Ay
71
0395340
Wtr Tube Ay ( 20 Inch (508mm) Long Transom Parts)
72
0330658
Washer ( 20 Inch (508mm) Long Transom Parts)
73
0325625
Keeper
74
0323943
Spacer Prop Nut
75
0392967
Ext, Stud & Screw ( 20 Inch (508mm) Long Transom Parts)
76
0328333
Винт
76
0339823
Screw ( 20 Inch (508mm) Long Transom Parts)
77
0320173
Ff Stud ( 20 Inch (508mm) Long Transom Parts)
78
0305283
Screw, G/c Extn ( 20 Inch (508mm) Long Transom Parts)
79
0311338
O Ring ( Also Included In Water Pump Repair Kits 393630 & 393509)
80
0393630
Wtr Pump Kit
81
0173029
Zinc Anode Kit Ob
82
0306643
Винт
82
0332226
Screw ( Optional)
83
0304454
Стопорная шайба
85
0396351
Комплект сальников редуктора
325541
0325541
Shift Rod-lng ( Not Shown 20 Inch (508mm) Long Transom Parts)
325974
0325974
Rubber Mount ( Not Shown 20 Inch (508mm) Long Transom Parts)
325975
0325975
Rubber Mount ( Not Shown 20 Inch (508mm) Long Transom Parts)
396707
0396707
Kit, G-case Extn ( Not Shown 20 Inch (508mm) Long Transom Parts)
433430
0434763
Gearcase Ay, Compl ( Not Shown All 20/25 15" Length Rope Start Models Dose Not Include Driveshaft)
433431
0434763
Gearcase Ay, Compl ( Not Shown All 20/25/30/35 Except 15" Length Rope Start 20/25 Models Dose Not Include Driveshaft)
