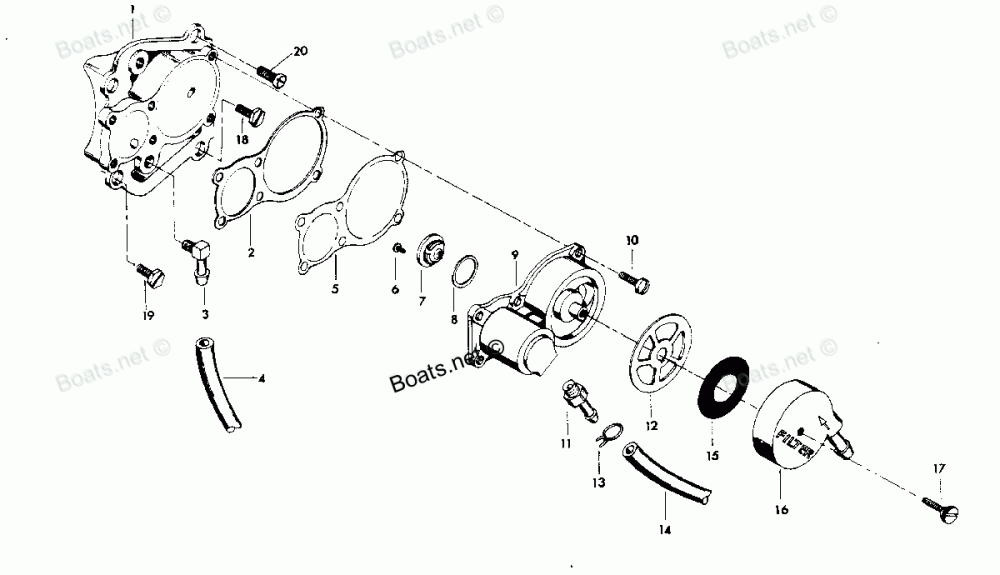

ТОПЛИВНЫЙ НАСОС
ТОПЛИВНЫЙ НАСОС

ТОПЛИВНЫЙ НАСОС

Force H0456H81M

ТОПЛИВНЫЙ НАСОС

#

oem код

название

цена

1

FUEL PUMP COVER

FUEL PUMP COVER

2

FUEL PUMP GASKET

FUEL PUMP GASKET

3

Колено

Колено

4

FUEL PUMP IMPULSE HOSE

FUEL PUMP IMPULSE HOSE

5

FUEL PUMP DIAPHRAGM

FUEL PUMP DIAPHRAGM

6

SLOTTED BINDING HD SCREW, 6 - 32 X 1/4

SLOTTED BINDING HD SCREW, 6 - 32 X 1/4

7

FUEL PUMP VALVE

FUEL PUMP VALVE

8

FUEL PUMP VALVE GASKET

FUEL PUMP VALVE GASKET

9

FUEL PUMP BODY

FUEL PUMP BODY

10

FILL HD SCREW W/SPRING LOCKWASHER, 1/4 - 20 X 3/4

FILL HD SCREW W/SPRING LOCKWASHER, 1/4 - 20 X 3/4

11

Колено

Колено

12

FUEL SEDIMENT BOWL GASKET

FUEL SEDIMENT BOWL GASKET

13

FUEL LINE CLAMPS

FUEL LINE CLAMPS

14

FUEL LINE, PUMP TO CARBURETOR

FUEL LINE, PUMP TO CARBURETOR

15

FUEL PUMP SCREEN

FUEL PUMP SCREEN

16

FUEL SEDIMENT BOWL

FUEL SEDIMENT BOWL

17

SCREW, FUEL BOWL

SCREW, FUEL BOWL

18

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

19

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

20

SLOTTED FILL HD SCREW, 1/4 - 20 X 5/8

SLOTTED FILL HD SCREW, 1/4 - 20 X 5/8
