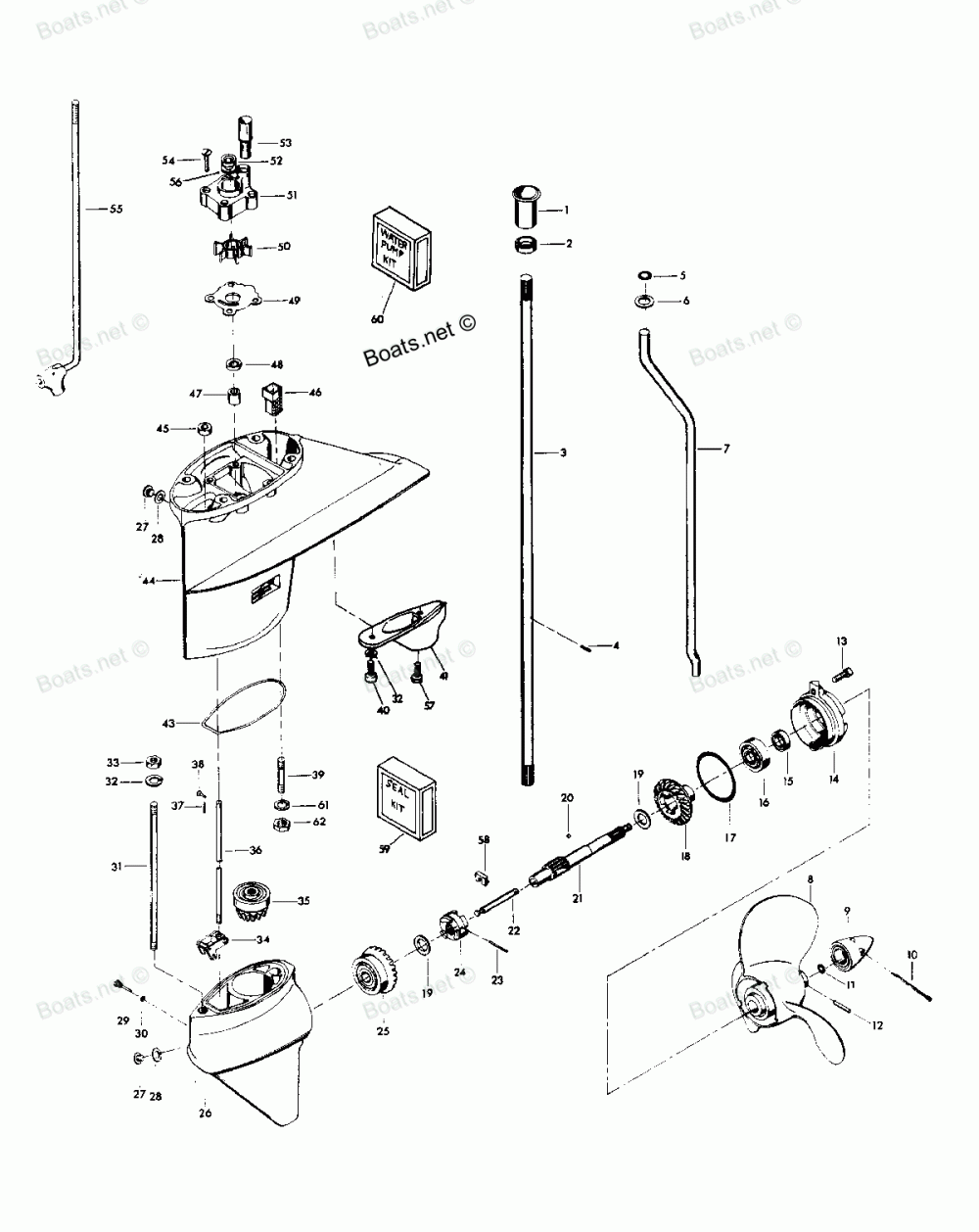

Gear Housing

Force H0507H81A

Gear Housing

#

oem код

название

цена

1

SEAL, DRIVESHAFT SPLINE

SEAL, DRIVESHAFT SPLINE

2

Седло

Седло

3

DRIVESHAFT

DRIVESHAFT

4

DRIVE PIN, WATER PUMP IMPELLER

DRIVE PIN, WATER PUMP IMPELLER

5

Уплотнение

Уплотнение

6

PLAIN WASHER

PLAIN WASHER

7

INLET WATER LINE

INLET WATER LINE

8

PROPELLER (ACCESSORY ITEM)

PROPELLER (ACCESSORY ITEM)

9

PROPELLER NUT

PROPELLER NUT

10

COTTER PIN, S.S., 1/8 - 1/2

COTTER PIN, S.S., 1/8 - 1/2

11

SEAL, PROPELLER NUT

SEAL, PROPELLER NUT

12

PROPELLER PIN, PACK OF 6

PROPELLER PIN, PACK OF 6

13

HEX SOCKET HD CAP SCREW, S.S., 5/16 - 18 X 9/16

HEX SOCKET HD CAP SCREW, S.S., 5/16 - 18 X 9/16

14

PROPELLER SHAFT BEARING CAGE.

PROPELLER SHAFT BEARING CAGE.

15

SEAL, PROPELLER SHAFT

SEAL, PROPELLER SHAFT

16

BALL BEARING, PROPELLER SHAFT

BALL BEARING, PROPELLER SHAFT

17

SEAL, PROPELLER SHAFT BEARING CAGE

SEAL, PROPELLER SHAFT BEARING CAGE

18

BEVEL GEAR REAR W/BEARING

BEVEL GEAR REAR W/BEARING

19

THRUST WASHER, BEVEL GEAR

THRUST WASHER, BEVEL GEAR

20

BALL, PROPELLER SHAFT

BALL, PROPELLER SHAFT

21

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT ASSEMBLY

22

GEAR SHIFT ARM PIN

GEAR SHIFT ARM PIN

23

Пружинный Штифт

Пружинный Штифт

24

Муфта сцепления

Муфта сцепления

25

BEVEL GEAR FRONT W/BEARING

BEVEL GEAR FRONT W/BEARING

26

GEAR HOUSING LOWER

GEAR HOUSING LOWER

-

GEAR HOUSING COMPLETE.

GEAR HOUSING COMPLETE.

27

PLUG, GEAR HOUSING

PLUG, GEAR HOUSING

28

WASHER, GEAR HOUSING PLUG

WASHER, GEAR HOUSING PLUG

29

GEAR SHIFT ARM PIVOT PIN

GEAR SHIFT ARM PIVOT PIN

30

SEAL, O-RING

SEAL, O-RING

31

STUD, LONG

STUD, LONG

32

Стопорная шайба

Стопорная шайба

33

HEX NUT, S.S., 3/8 - 16

HEX NUT, S.S., 3/8 - 16

34

GEAR SHIFT ARM ASSEMBLY

GEAR SHIFT ARM ASSEMBLY

35

BEVEL PINION W/BEARING

BEVEL PINION W/BEARING

36

GEAR SHIFT ROD LOWER

GEAR SHIFT ROD LOWER

37

Шплинт

Шплинт

38

PIN, GEAR SHIFT ROD LOWER

PIN, GEAR SHIFT ROD LOWER

39

STUD, SHORT

STUD, SHORT

40

RETAINER, SNOUT

RETAINER, SNOUT

41

EXHAUST, SNOUT

EXHAUST, SNOUT

43

SEAL, GEAR HOUSING

SEAL, GEAR HOUSING

44

GEAR HOUSING UPPER

GEAR HOUSING UPPER

45

SEAL, SHIFT ROD LOWER

SEAL, SHIFT ROD LOWER

46

SCREEN, WATER INLET

SCREEN, WATER INLET

47

BEARING, DRIVESHAFT UPPER

BEARING, DRIVESHAFT UPPER

48

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT

49

WATER PUMP BACK PLATE

WATER PUMP BACK PLATE

50

WATER PUMP IMPELLER

WATER PUMP IMPELLER

51

WATER PUMP BODY

WATER PUMP BODY

52

DRIVESHAFT SEAL - WATER PUMP

DRIVESHAFT SEAL - WATER PUMP

53

SEAL, INLET WATER LINE, LOWER

SEAL, INLET WATER LINE, LOWER

54

HEX HD SCREW, S.S., 1/4 - 20 X 1-1/4

HEX HD SCREW, S.S., 1/4 - 20 X 1-1/4

55

GEAR SHIFT ROD INTERMEDIATE

GEAR SHIFT ROD INTERMEDIATE

56

DISC, WATER PUMP

DISC, WATER PUMP

57

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1

HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1

58

Вилка карданного вала

Вилка карданного вала

59

GEAR HOUSING SEAL KIT.

GEAR HOUSING SEAL KIT.

60

Рем.комплект помпы

Рем.комплект помпы

-

SCREW 1/4 - 20 X 1-1/4

SCREW 1/4 - 20 X 1-1/4

-

Импиллер

Импиллер

-

BACK PLATE, WATER PUMP

BACK PLATE, WATER PUMP

-

DRIVE PIN

DRIVE PIN

-

WATER PUMP BODY

WATER PUMP BODY

61

PLAIN WASHER

PLAIN WASHER

62

ELASTIC STOP NUT 3/8 - 16

ELASTIC STOP NUT 3/8 - 16
