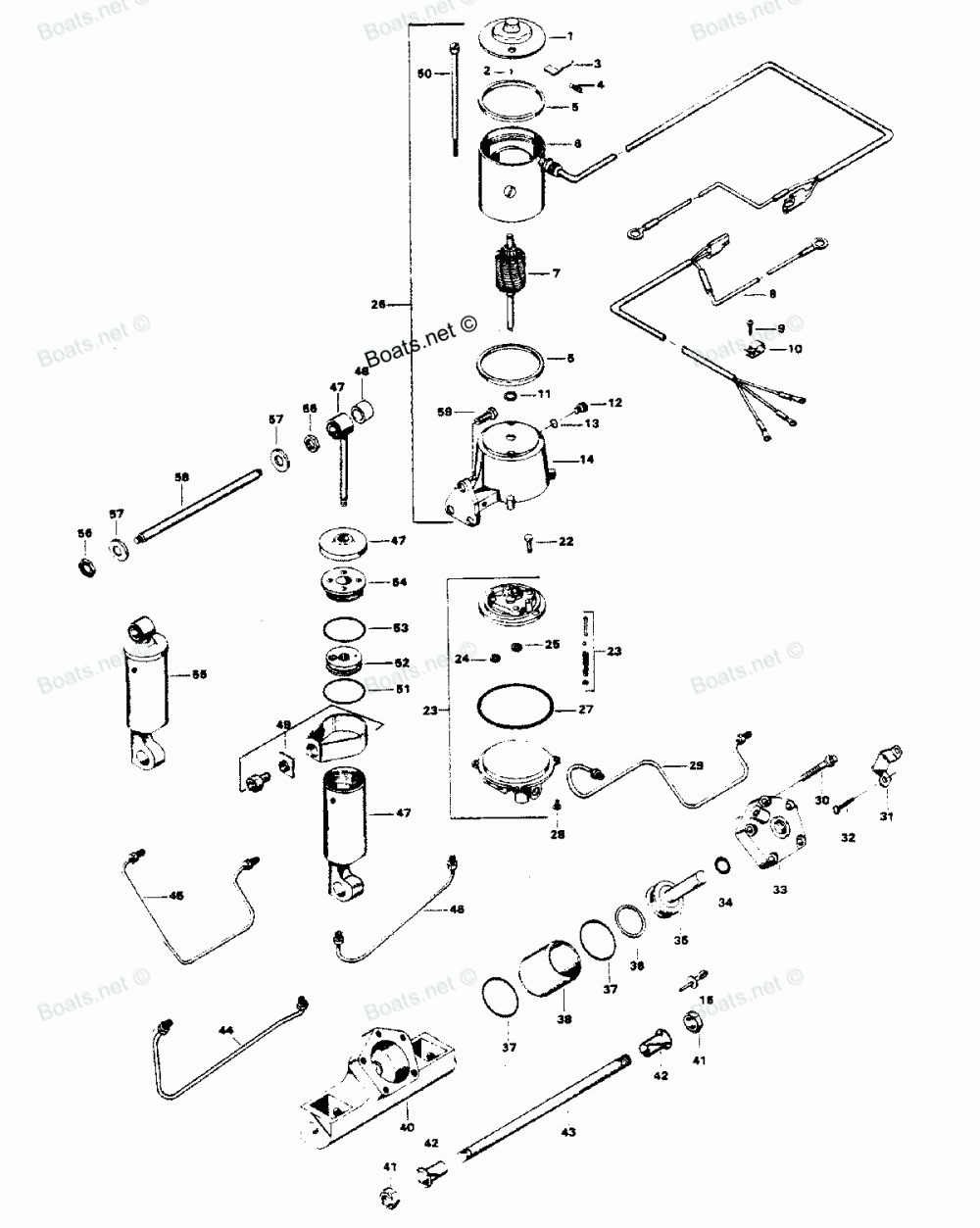

Power Trim Unit 758h1c, 758b1c Models

Force H0756H81G
Force
#oem кодцена
1
F17543
HEAD ASSEMBLY, COMMUTATOR END
2
F17539
Шарик
3
F17504
Щеточный комплект
4
F17500
Пружинка
5
F17557
Прокладка
6
F17556
FIELD AND FRAME ASSEMBLY
7
F17555
ARMATURE
8
F500843
Провод
9
F1741
THREAD FORMING SCREW, 8 X 3/4
10
F178446
Зажим
11
F17508
Упорная шайба
12
F17518
FILTER CAP
13
F17510
Уплотнительное кольцо
14
F17505
RESERVOIR AND BRACKET W/SEAL
15
F1966
PLUG, SWIVEL BRACKET
22
F1203
HEX CAP SCREW, 1/4 - 20 X 7/8
23
F17564
VALVE BODY AND PUMP
24
F17566
IDLE GEAR
25
F17565
DRIVE GEAR
26
F17563
MOTOR AND RESERVOIR
27
F17522
Уплотнительное кольцо
28
F1310
ROUND HD SCREW, 10 - 24 X 5/8
29
F449254
HYDRAULIC LINE, TRIM CYLINDER, UPPER
30
F1959
FERRY HD CAP SCREW, 1/4 - 20 X 1 3/4, STAINLESS STEEL
31
F449354
THRUST BRACKET
32
F1734
FILL HD MOUNTING SCREW AND LOCKWASHER, 1/4 - 20 X 1/2
33
FA449149
Крышка
34
F449342
SEAL, PISTON SHAFT
35
FA449015
ПОРШЕНЬ
36
F449278
PISTON SEAL
37
F40278
SEAL, CYLINDER
38
F449010
Цилиндр
40
F449545-2
CYLINDER HOUSING
41
F1963
ELASTIC STOP NUT, 5/8 - 18
42
F178362
Подшипник
43
F449632
Вал
44
F449253-1
HYDRAULIC LINE, TRIM CYLINDER, LOWER
45
F449758
HYDRAULIC LINE, LIFT CYLINDER, UPPER
46
F449754-1
HYDRAULIC LINE, LIFT CYLINDER, LOWER
47
FA17559
LIFT CYLINDER COMPLETE
48
F17577
ADAPTER FITTING PACKAGE
49
F17577
ADAPTER FITTING PACKAGE
50
F17577
ADAPTER FITTING PACKAGE
51
FA17561-1
Уплотнительное кольцо
52
F17562-1
PISTON ASSEMBLY
53
F17528
Уплотнительное кольцо
54
F17560
HEAD ASSEMBLY
55
FA178962
Амортизатор
56
F1931
STOP NUT, 1/2 - 20, STAINLESS STEEL
57
F1960
PLAIN WASHER
58
F449889
SHAFT, UPPER
59
F1822
HEX CAP SCREW, 5/16 - 18 X 7/8, STAINLESS STEEL
60
F17558
THRU-BOLT PACKAGE
61
F1877
TY-RAP (NOT SHOWN)
62
F178344
Втулка
