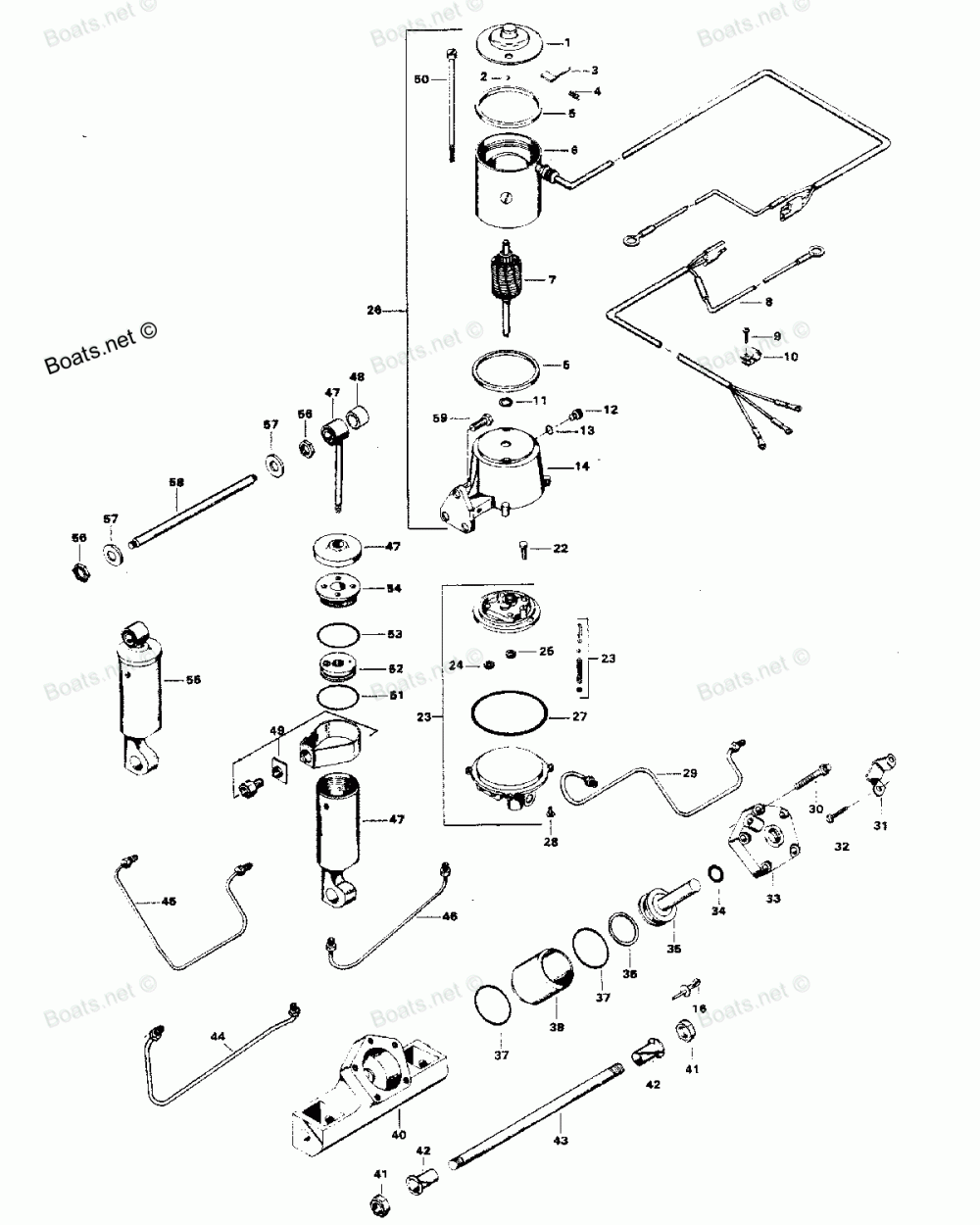

Power Trim Unit

Force H0858H81D
Force
#oem кодцена
1
F17543
HEAD ASSEMBLY, COMMUTATOR END
2
F17539
Шарик
3
F17504
Щеточный комплект
4
F17500
Пружинка
5
F17557
Прокладка
6
F17556
FIELD AND FRAME ASSEMBLY
7
F17555
ARMATURE
8
F500843
Провод
9
F1741
THREAD FORMING SCREW, 8 X 3/4
10
F178446
Зажим
11
F17508
Упорная шайба
12
F17518
FILTER CAP
13
F17510
Уплотнительное кольцо
14
F17505
RESERVOIR AND BRACKET W/SEAL
16
F1966
PLUG, SWIVEL BRACKET
22
F1203
HEX CAP SCREW, 1/4 - 20 X 7/8
23
F17564
VALVE BODY AND PUMP
24
F17566
IDLE GEAR
25
F17565
DRIVE GEAR
26
F17563
MOTOR AND RESERVOIR
27
F17522
Уплотнительное кольцо
28
F1310
ROUND HD SCREW, 10 - 24 X 5/8
29
F449254
HYDRAULIC LINE, TRIM CYLINDER, UPPER
30
F1959
FERRY HD CAP SCREW, 1/4 - 20 X 1-3/4, STAINLESS STEEL
31
F449354
THRUST BRACKET
32
F1734
FILL HD MOUNTING SCREW AND LOCKWASHER, 1/4 - 20 X 1/2
33
FA449149
COVER W/SEALS AND RETAINER
34
F449342
SEAL, PISTON SHAFT
35
FA449015
ПОРШЕНЬ
36
F449278
PISTON SEAL
37
F40278
SEAL, CYLINDER
38
F449010
Цилиндр
40
F449545-2
CYLINDER HOUSING
41
F1963
ELASTIC STOP NUT, 5/8 - 18
42
F178362
Подшипник
43
F449632
Вал
44
F449253-1
HYDRAULIC LINE, TRIM CYLINDER, LOWER
45
F449754-1
HYDRAULIC LINE, LIFT CYLINDER, LOWER
46
F449758
HYDRAULIC LINE, LIFT CYLINDER, UPPER
47
FA17559
LIFT CYLINDER COMPLETE
48
F178344
BUSHING, SHOCK ABSORBER UPPER
49
F17577
ADAPTER FITTING PACKAGE
50
F17558
THRU-BOLT PACKAGE
-
F1877
TY-RAP (NOT SHOWN)
51
F17561-1
Уплотнительное кольцо
52
F17562-1
PISTON ASSEMBLY
53
F17528
Уплотнительное кольцо
54
F17560
HEAD ASSEMBLY
55
FA178962
Амортизатор
56
F1931
STOP NUT, 1/2 - 20, STAINLESS STEEL
57
F1960
PLAIN WASHER
58
F449889
SHAFT, UPPER
59
F1822
HEX CAP SCREW, 5/16 - 18 X 7/8, STAINLESS STEEL
