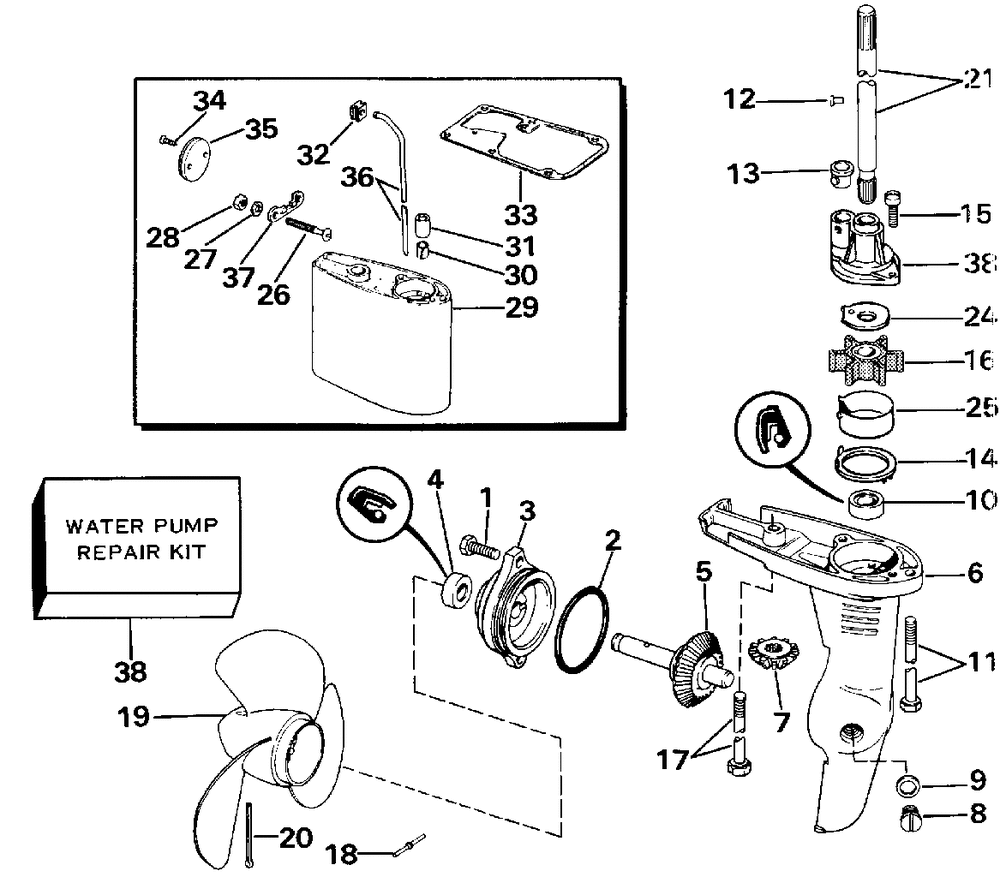

Редуктор

Evinrude EJR-ESE
Evinrude
#oem кодцена
1
0124341
Винт
2
0310327
Кольцо
5
0382222
Shaft & Gear
6
0389066
Gcase&bushing Ay
7
0313608
Шестерня
8
0307551
Пробка сливная
9
0333572
Уплотнительное кольцо
10
0327031
Уплотнение
11
0303398
Винт
11
0315221
Screw ( 5 In. Longer Parts)
12
0321130
Pin Impeller
13
0321129
Grommet Water Tube
14
0321126
Spacer, Water Pump
15
0321127
Screw Water Pump
16
0763735
Impeller (387361)
17
0302325
Винт
19
0125990
Pl Prop, 7.5x4 Lh
20
0313693
Шплинт
21
0313382
Driveshaft Std/15"
24
0763732
Пластина
25
0321128
Cup Impeller Hsg
26
0315225
Screw ( 5 In. Longer Parts)
27
0305940
Washer ( 5 In. Longer Parts)
28
0328740
Nut ( 5 In. Longer Parts)
29
0394477
G-case Ext Ay ( 5 In. Longer Parts)
30
0310674
Bushing, Flat-style ( 5 In. Longer Parts)
31
0326742
Sleeve ( 5 In. Longer Parts)
32
0310258
Grommet ( 5 In. Longer Parts)
33
0313494
Gasket ( 5 In. Longer Parts)
34
0310819
Screw ( 5 In. Longer Parts)
35
0310820
Transom Plate ( 5 In. Longer Parts)
36
0315218
Water Tube ( 5 In. Longer Parts)
37
0315224
Clamp ( 5 In. Longer Parts)
38
0763736
Рем.комплект помпы
389037
0389037
G/c 2hp 70-86 ( Not Shown)
