ТОПЛИВНЫЙ НАСОС Каталог оригинальных запчастей для лодочных моторов Force H0353H80M (1980)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Force
1980
H0353H80M

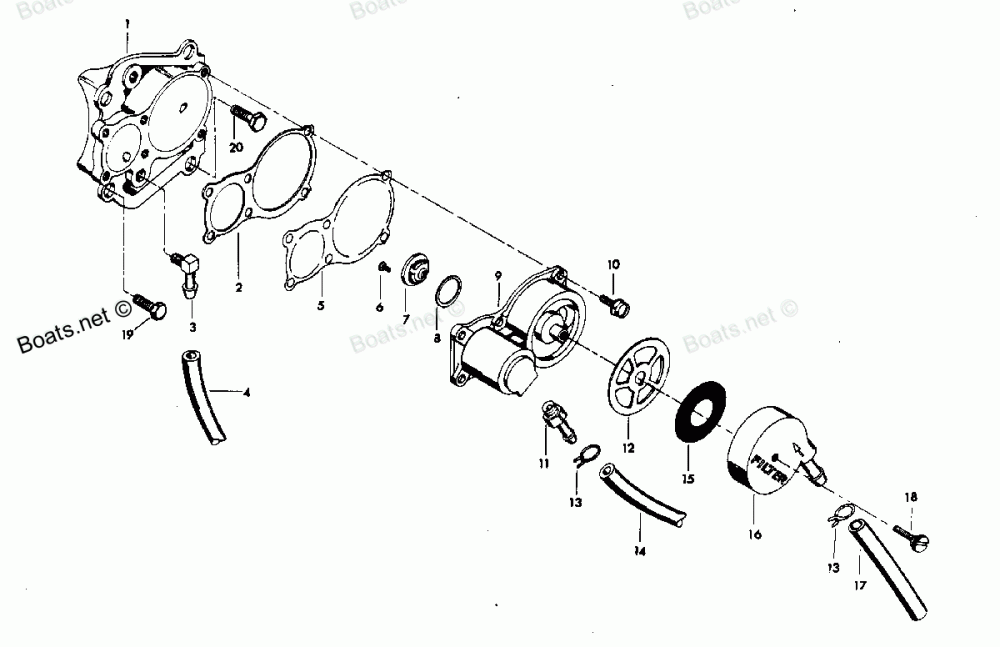

ТОПЛИВНЫЙ НАСОС
ТОПЛИВНЫЙ НАСОС

ТОПЛИВНЫЙ НАСОС

Force H0353H80M

ТОПЛИВНЫЙ НАСОС

#

oem код

название

цена

1

FUEL PUMP COVER

FUEL PUMP COVER

2

FUEL PUMP GASKET

FUEL PUMP GASKET

3

Колено

Колено

4

FUEL PUMP IMPULSE HOSE

FUEL PUMP IMPULSE HOSE

5

FUEL PUMP DIAPHRAGM

FUEL PUMP DIAPHRAGM

6

ROUND HD SCREW, 6 - 32 X 1/4

ROUND HD SCREW, 6 - 32 X 1/4

7

FUEL PUMP VALVE

FUEL PUMP VALVE

8

FUEL PUMP VALVE GASKET (CENTER VALVE)

FUEL PUMP VALVE GASKET (CENTER VALVE)

9

FUEL PUMP BODY W/VALVES

FUEL PUMP BODY W/VALVES

10

FILL HD SCREW W/LOCKWASHER

FILL HD SCREW W/LOCKWASHER

11

Колено

Колено

12

FUEL SEDIMENT BOWL GASKET

FUEL SEDIMENT BOWL GASKET

13

FUEL LINE CLAMPS

FUEL LINE CLAMPS

14

FUEL LINE, PUMP TO CARBURETOR

FUEL LINE, PUMP TO CARBURETOR

15

FUEL PUMP SCREEN

FUEL PUMP SCREEN

16

FUEL SEDIMENT BOWL

FUEL SEDIMENT BOWL

17

HOSE BUSHING TO FUEL PUMP

HOSE BUSHING TO FUEL PUMP

18

SCREW, FUEL BOWL

SCREW, FUEL BOWL

19

HEX CAP SCREW, 1/4 - 20 X 5/8

HEX CAP SCREW, 1/4 - 20 X 5/8

20

HEX HD SCREW, 1/4 - 20 X 5/8

HEX HD SCREW, 1/4 - 20 X 5/8

-

Зажим

Зажим
