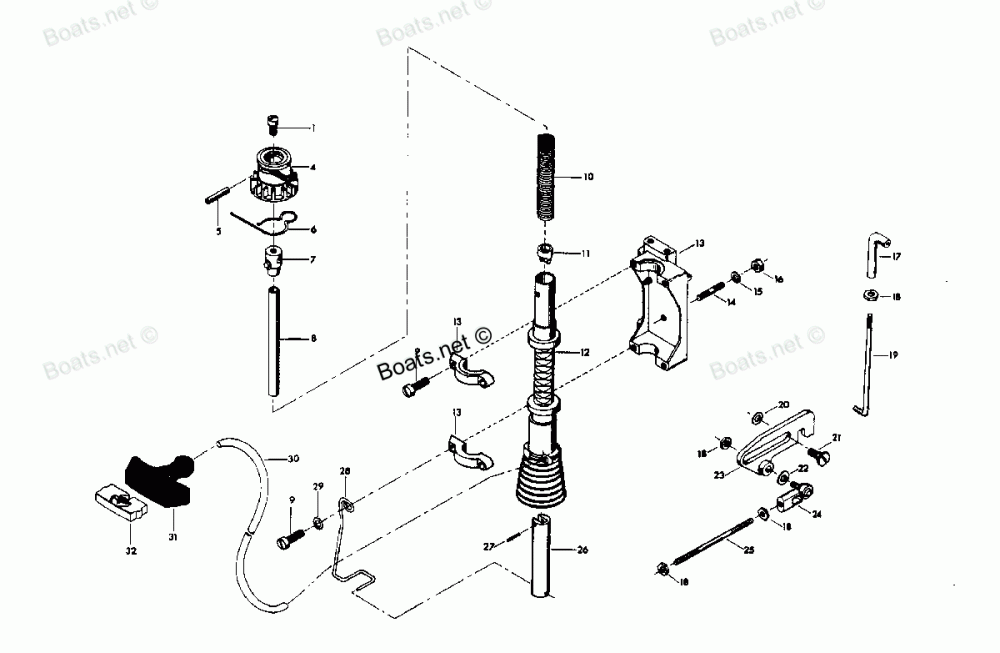

Hand Starter

Force H0353H80M
Force
#oem кодцена
1
F1097
FILL HD SCREW, 1/4 - 20 X 3/8
4
F487674
STARTER PINION GEAR
5
F40425
STARTER PINION PIN
6
F485424
SPRING, STARTER PINION
7
F901739
STARTER REWIND SPRING DRIVE
8
F328710
STARTER ROPE GUIDE POST
9
F1111
FILL HD SCREW, 1/4 - 20 X 7/8
10
F901970
SPRING STARTER REWIND
11
F191737
RETAINER, STARTER SPRING
12
F328239
STARTER POOL
13
2A486427
STARTER MOUNTING BRACKET W/CAPS AND SCREWS
14
F307211
Шпилька
15
F8096
SPRING LOCKWASHER
16
F1515
HEX NUT, 5/16 - 18
17
F485971
STARTER SPRING EXTENSION
18
F1513
HEX NUT, 10 - 32
19
F486531
STARTER INTERLOCK ROD
20
F8028
PLAIN WASHER
21
F369887
INTERLOCK SCREW
22
F8058
INTERNAL TOOTH LOCKWASHER
23
F485781
STARTER INTERLOCK LOCK
24
8177471
BALL JOINT W/BEARING
25
F478502
LINK
26
F191971
STARTER RETAINER EXTENSION
27
F8540
Пружинный Штифт
28
F328455
STARTER ROPE GUIDE
29
F8060
EXTERNAL TOOTH LOCKWASHER
30
F328232
Шнур Стартера
31
F286132
STARTER ROPE HANDLE
32
817938A1
STARTER ROPE HANDLE RETAINER
-
FA27232
EMERGENCY STARTER ROPE (NOT SHOWN) W/HANDLE
33
F24333
END, STARTER ROPE
