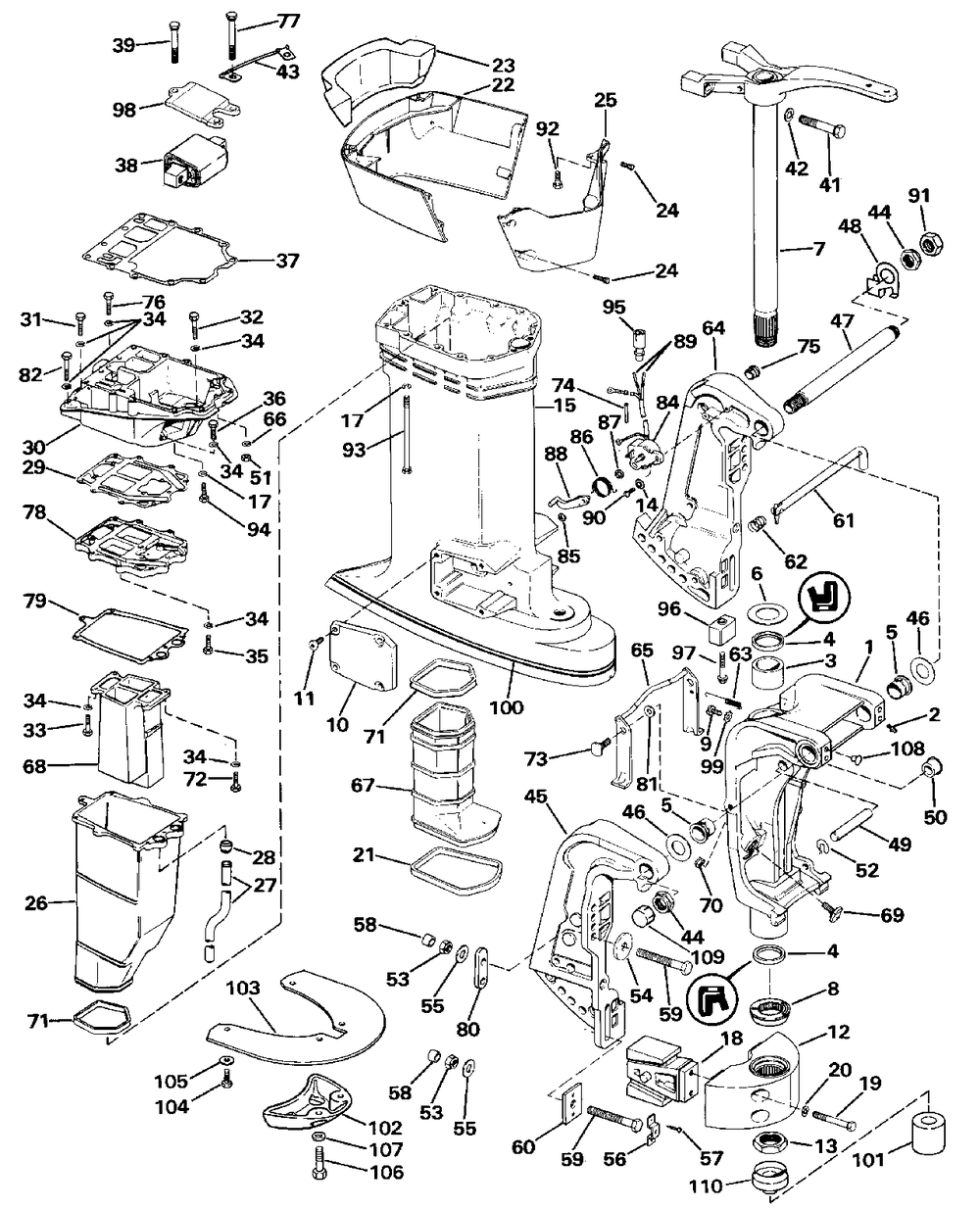

Струбцина

Evinrude E155WTXZ
Evinrude
#oem кодцена
2
0313607
Фитинг
3
0320962
Bushing Swiv Bk
4
0320937
Seal Swiv Brkt
5
0321035
Bushing Swiv Bk
6
0320866
Упорная шайба
7
0392518
Steer Arm & Shaft ( 20 In. (508mm) Transom Models Only)
7
0392519
Steer Arm & Shaft ( 25 In. (635mm) Transom Models Only)
8
0327696
Keeper
9
0306014
Винт
11
0322000
Винт
12
0340006
Bracket, Mount-20" ( 20 In. (508mm) Transom Models Only)
12
0911519
Bracket ( 25 In. (635mm) Transom Models Only)
13
0320746
Lock Nut
14
0328739
Шайба
15
0435432
Exhst Hsg Ay, 20" ( 20 In. (508mm) Transom Models Only)
15
0435318
Hsg&stud Ay, Exh. ( 25 In. (635mm) Transom Models Only)
17
0301250
Шайба
18
0434632
Mount Ay, Rubber
19
0328078
Винт
20
0306314
Lockwasher 4pk
21
0320961
Seal, G/c-innr Hsg
22
0983524
Cover & Seal Ay
23
0334824
Уплотнение
24
0328694
Винт
25
0323800
Cvr-exh Hsg-frt
27
0346898
Tube, Water 25" ( 25 In. (635mm) Transom Models Only)
28
0305145
Уплотнитель резиновый
29
0324516
Gasket, Plt-adptr
30
0331033
Adapter, Ex Hsg
31
0306418
Винт
32
0303459
Винт
33
0306778
Винт
34
0302290
Lockwasher 5 Pk
35
0306418
Винт
36
0306409
Винт
37
0335503
Прокладка
38
0395539
Mount Ay, Mtr-uppr
39
0330930
Винт
42
0322624
Шайба
44
0323599
Locknut
45
0333304
Stern Bracket-stbd
46
0910992
Упорная шайба
47
0321052
Tube, Tilt - Steel
48
0352105
Зажим
49
0320792
Pin Tilt Cyl Up
50
0322481
Bushing-upr Tilt
51
0306422
Гайка
52
0321054
Spring Clip 2pk
53
0313623
Гайка
54
0307238
Washer 5 Pk
55
0320248
Washer 5 Pk
56
0318273
Седло
57
0319886
Screw Ret To Plate
58
0318572
Cap-tran Scr 4pk
59
0336676
4 3/4" Trnsm Bolt
59
0354101
6" Trnsm Bolt
60
0318272
Sq Plate 4pk
61
0436541
Rod Ay, Thrust
62
0321053
Spring Thrs Rod
66
0301250
Шайба
67
0327796
Exhaust Hsg, Inner ( 20 In. (508mm) Transom Models Only)
67
0327797
Exhaust Hsg ( 25 In. (635mm) Transom Models Only)
69
0321499
Thrust Pad
70
0552938
Гайка
71
0320936
Seal, Ex Hsg
72
0319883
Screw Exh Cover
73
0329109
Винт
76
0315071
Винт
77
0330931
Винт
80
0321735
Support Stern Brkt
81
0330266
Шайба
82
0600014
Cap Screw
85
0511527
Седло
86
0511528
Spring-tilt Trim
87
0320689
Гайка
88
0512211
Рычаг
89
0511469
Pin(10)44-100-1414
90
0308825
Винт
91
0322376
Nut-steering Wiper ( Recommended To Prevent Corrosion In Salt Water Usage.)
92
0328694
Винт
93
0328698
Screw-exh Hsg
94
0302860
Винт
95
0325698
Штуцер
96
0433458
Anode & Screw Ay
97
0333350
Винт
98
0331022
Пластина
99
0328701
Гровер
100
0333960
Наклейка
101
0911312
Seal ( 25 In. (635mm) Transom Models Only)
102
0345776
Deflector, Spray ( 25 In. (635mm) Transom Models Only)
103
0345776
Deflector, Spray ( 25 In. (635mm) Transom Models Only)
104
0910741
Screw ( 25 In. (635mm) Transom Models Only)
105
0911201
Washer ( 25 In. (635mm) Transom Models Only)
106
0910736
Screw ( 25 In. (635mm) Transom Models Only)
107
0301250
Washer ( 25 In. (635mm) Transom Models Only)
108
0334076
Заглушка
109
0317894
Крышка
110
0912233
Retainer-seal ( 25 In. (635mm) Transom Models Only)
