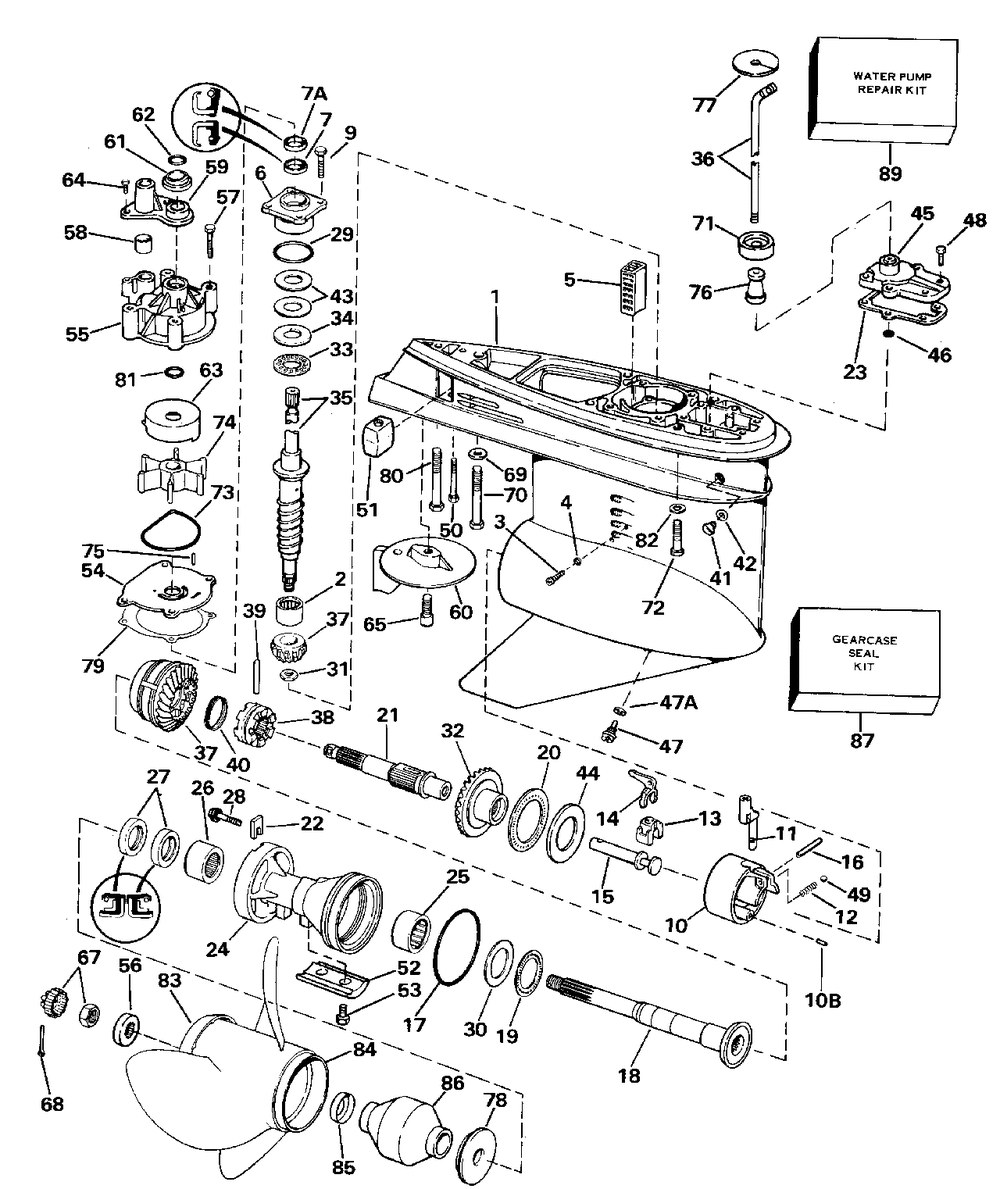

Корпус редуктора

Evinrude E200STLCEB
Evinrude
#oem кодцена
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0332584
Шайба
5
0321123
Screen, Water Intk
6
0439476
Ds Brg Hsg&seal Ay
7
0329923
Oil Retainer
9
0317624
Винт
10
0431693
Housing Ay
11
0916189
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0334160
Lever-shifter
15
0334143
Shaft-shifter
16
0319627
Палец
17
0305123
Уплотнительное кольцо
18
0431943
Prop Shaft
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0438251
Shaft Ay, Clutch
22
0333957
Retaining Tab
23
0352165
Прокладка
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0350271
Screw, Brg Carrier
29
0354731
Уплотнительное кольцо
30
0313447
Шайба
31
0314730
Nut Pinion
32
0431703
Gear Ay-reverse
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
5000775
Kit Ayd/shaft-20 ( 20 In. Transom Only)
35
5000776
Kit Ay, D/shaft-25 ( 25 In. Transom Only)
36
0329864
Shift Rod - 20" ( 20 In. Transom Only)
36
0329865
Shift Rod, 25" ( 25 In. Transom Only)
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0333572
Уплотнительное кольцо
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0318544
Drain Screw
48
0302325
Винт
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395062 Stainless Steel)
54
0435526
Cup & Plate Ay ( Chrome Plated)
55
0435485
Housing Ay, Pump
56
0320570
Spacer Prop Nut
57
0335221
Screw ( Also Included In Water Pump Repair Kit 395062)
58
0314008
Grommet ( Also Included In Water Pump Repair Kit 395062)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395062)
60
0338743
Tab, Trim-c/r
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 395062)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit 395062)
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395062 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 395062)
65
0313715
Винт
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395062)
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395062)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395062)
76
0321122
Spacer-shift Rod
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kits 395060 & 395062)
7A
0329922
Oil Retainer
80
0330263
Винт
82
0330266
Шайба
84
0763919
Vipertbx14.75x19lh
84
0763923
Vipertbx14.5x21-lh
84
0390823
Sst L.h. 23"
84
0763915
Vipertbx14.75x17lh
85
0313926
Гильца
86
0387157
Prop Hub, 15 Spline
87
5006373
Kit Ay, Seal-gc
89
5001594
Рем.комплект водяного насоса
10B
0331880
Штифт
47A
0333572
Уплотнительное кольцо
