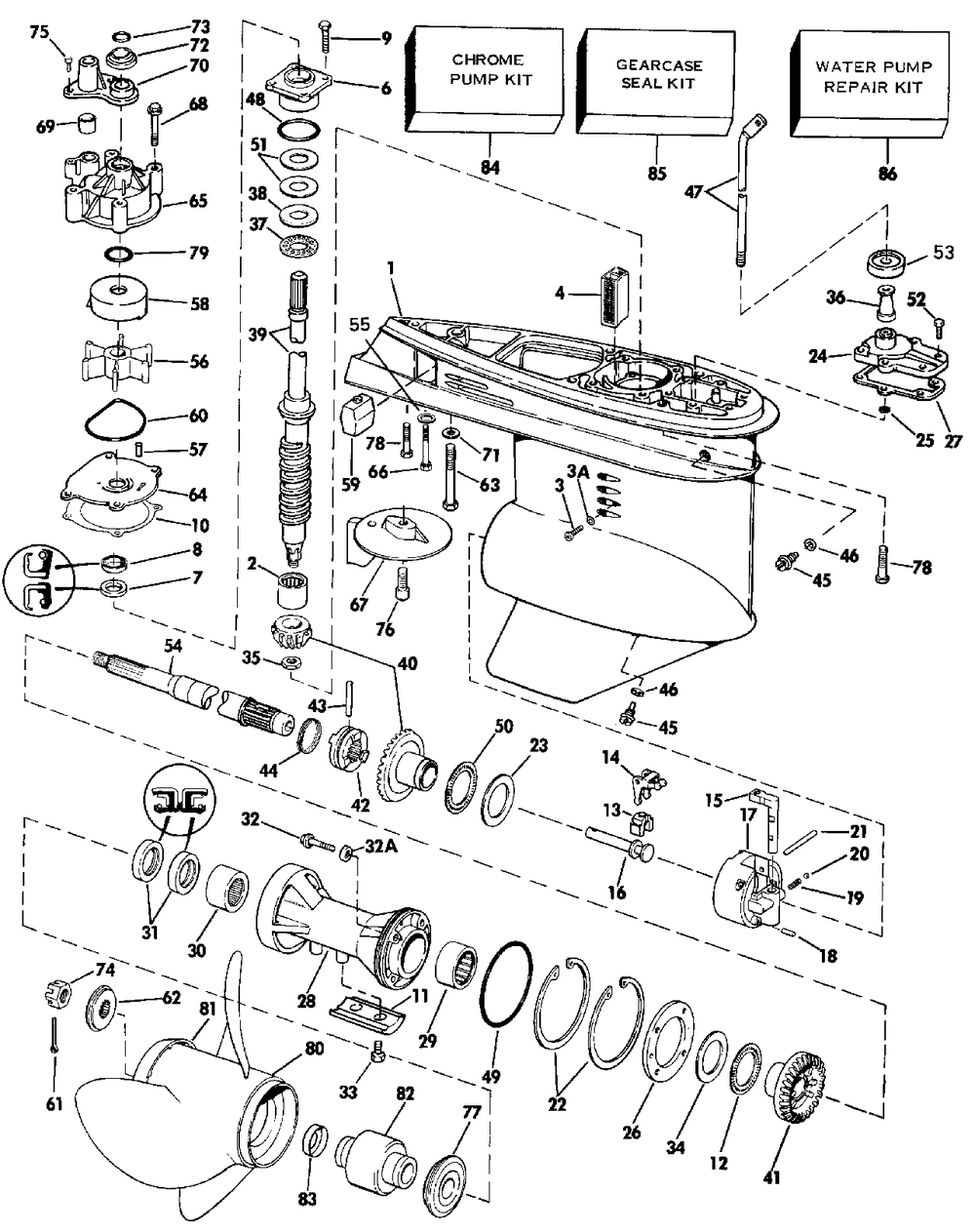

Редуктор

Evinrude E90TLCEM
Evinrude
#oem кодцена
1
0431642
G-case&brg Ay, V4
2
0384195
Ndle Brg, Bh-1820
3
0324852
Retaining Screw
4
0323466
Screen-wtr Intake
6
0439476
Ds Brg Hsg&seal Ay
7
0329923
Oil Retainer
8
0329922
Oil Retainer
9
0317624
Винт
10
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kits 395062 & 395060)
11
0431708
Анодная пластина
12
0382408
Bearing Ay, Thrust
13
0334163
Cradle-shift
14
0324037
Shifter Lever
15
0915954
Detent
16
0322941
Shaft-shifter
17
0391365
Brg Hgs, Pin&spring
18
0331880
Штифт
19
0326666
Пружина
20
0327345
Ball, Detent
21
0320145
Штифт
22
0313445
Прокладка
23
0324766
Упорная шайба
24
5006241
Cover Ay, Shift Rod
25
0318372
Уплотнительное кольцо
26
0314732
Пластина
27
0352165
Прокладка
28
0397087
Ps Brg Hsg&seal Ay
29
0382407
Подшипник игольчатый
30
0379504
Needle Brg Ay
31
0330137
Seal, Drl 5-pk
32
0316563
Винт
33
0908158
Винт
34
0314731
Упорная шайба
35
0314730
Nut Pinion
36
0321122
Spacer-shift Rod ( 25 In. (635mm) Transom Models)
37
0387656
Thrust Brg Ay
38
0327656
Упорная шайба
39
5000777
Kit Ay, 2pc D/shaft ( 20 In. (508mm) Transom Models)
39
5000778
Kit Ay, D-shaft 2pc ( 25 In. (635mm) Transom Models)
3A
0332584
Шайба
42
0323664
Shifter-clutch Dog
43
0313448
Штифт
44
0324369
Пружина
45
0318544
Drain Screw
46
0333572
Уплотнительное кольцо
47
0332120
Shift Rod-long ( 20 In. (508mm) Transom Models)
47
0332121
Shift Rod-x-long ( 25 In. (635mm) Transom Models)
48
0354731
Уплотнительное кольцо
49
0313446
Уплотнительное кольцо
50
0385043
Thrust Brg Ay
51
0323362
Shim-pinion-003
51
0323361
Shim-pinion-004
51
0314745
Shim 005
52
0302325
Винт
53
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395062)
54
0436888
Вал гребново винта
55
0303886
Washer ( 90/110 Models)
56
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395062)
57
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395062)
58
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
59
0435526
Cup & Plate Ay ( Chrome Plated)
59
0327482
Filler Block ( 90/110 Models)
59
0436745
Anode&insert Ay ( 88 Models)
60
0331353
Seal ( Also Included In Water Pump Repair Kit 395062)
61
0314502
Шплинт
62
0315810
Проставка
63
0331998
Винт
64
0435027
Cup & Plate Ay ( Stainless Steel Also Included In Water Pump Repair Kit 395062)
64
0435526
Cup & Plate Ay ( Chrome Plated)
65
0435485
Housing Ay, Pump
66
0328096
Screw, Anode
66
0322000
Screw ( 90/110 Models)
67
0338742
Tab, Trim-std
68
0335221
Screw ( Also Included In Water Pump Repair Kit 395062)
69
0314008
Grommet ( Also Included In Water Pump Repair Kit 395062)
70
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395062)
71
0330265
Шайба
72
0320943
Grommet ( Also Included In Water Pump Repair Kit 395062)
73
0310585
O Ring ( Also Included In Water Pump Repair Kit 395062)
74
0314503
Гайка гребного винта
75
0306643
Screw ( Also Included In Water Pump Repair Kit 395062)
76
0313715
Винт
77
0127084
Bushing, Thrust
78
0331999
Винт
80
0765181
Prop, Al 13.75x13
80
0765182
Винт гребной алюминиевый 13,5 х 15
80
0765183
Prop, Al 13.25x17
80
0765184
Prop Ay, Al 13.2x19
80
0765185
Prop Ay, Al 13.2x21
80
0763929
Viper V413.875x15
80
0763930
Viperv4 13.875x17
80
0763931
Viperv4 13.875x19
80
0763957
Ssp V4 13.75x13
80
0389792
Sst V-4 11"
81
0332393
Converging Ring, V4
83
0313926
Гильца
84
0435526
Cup & Plate Ay
85
5006373
Kit Ay, Seal-gc
86
5001594
Рем.комплект водяного насоса
32A
0332583
Washer, Dlr 5-pk
