Корпус редуктора-Стандартное вращение Каталог оригинальных запчастей для лодочных моторов Evinrude E150CXCCA (1988)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1988
E150CXCCA
Корпус редуктора-Стандартное вращение

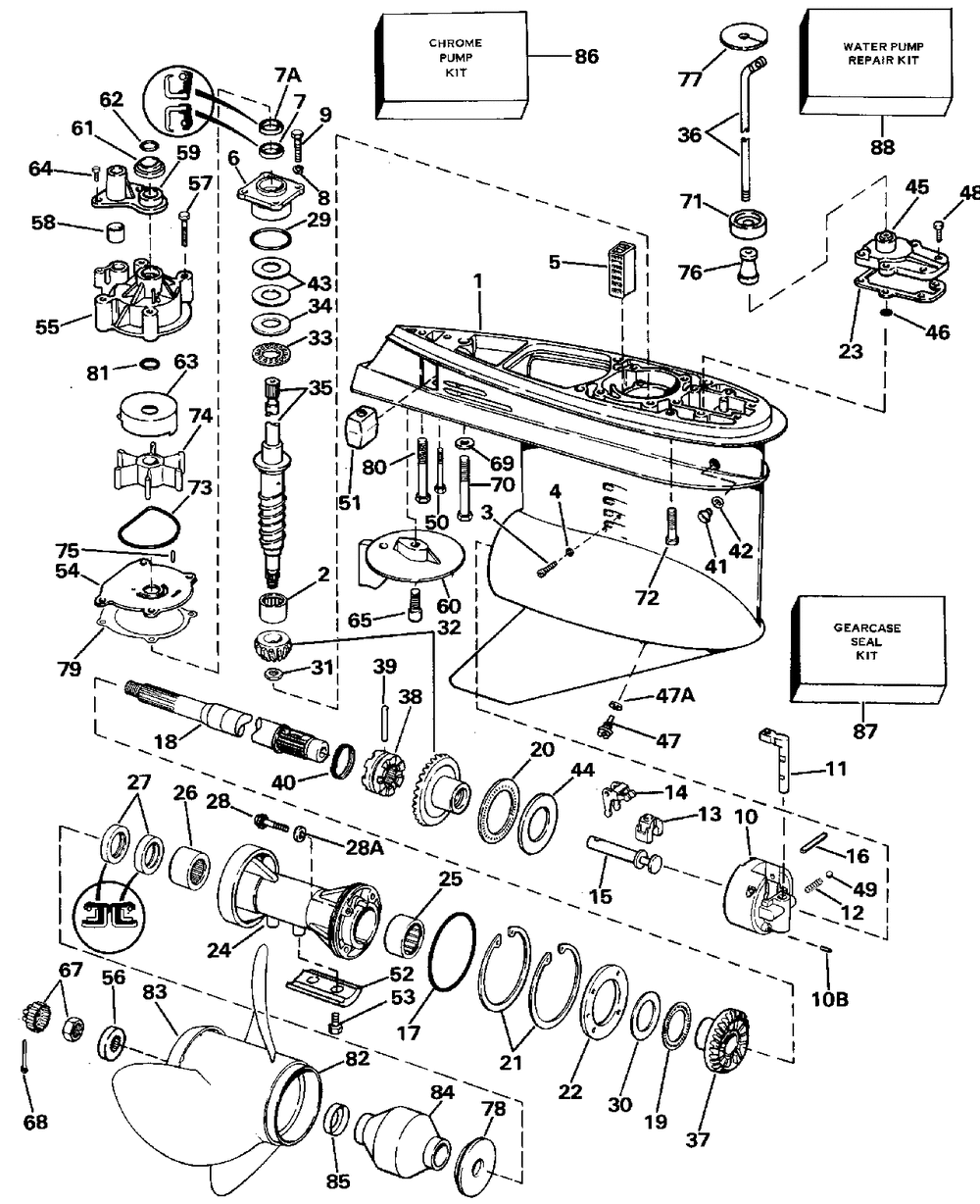

Корпус редуктора-Стандартное вращение

Корпус редуктора-Стандартное вращение

Evinrude E150CXCCA

oem код

название

цена

Kit Ay, Grc&hsg

Roller Brg Ay

Retaining Screw

Шайба

Screen, Water Intk

Ds Brg Hsg&seal Ay

Oil Retainer

Шайба

Screw Brg Hsg

Hsg.& Bearing Ay

Detent

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

Уплотнительное кольцо

Prop Shaft Ay

Bearing Ay, Thrust

Thrust Brg-fwd Gr

Стопорное кольцо

Прокладка

Brg Hsg, Ndl, Seal

Подшипник игольчатый

Needle Brg Ay

Уплотнение

Винт

Уплотнительное кольцо

Упорная шайба

Nut Pinion

Thrust Brg Ay

Упорная шайба

Kit Ayd/shaft-20 ( 20 In. (508mm) Transom Models Only)

5000776

Kit Ay, D/shaft-25 ( 25 In. (635mm) Transom Models Only)

0324407

Shift Rod-long ( 20 In. (508mm) Transom Models Only)

Gear-reverse V6

Shifter-clutch Dog

Штифт

Пружина

Drain Screw

Уплотнительное кольцо

Shim-pinion-003

Shim-pinion-004

Shim 005

Упорная шайба

Cover Ay, Shift Rod

Уплотнительное кольцо

Drain Screw

Винт

Шарик

Screw, Anode

Anode&insert Ay

Анодная пластина

Винт

Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395060 Stainless Steel)

0435526

Cup & Plate Ay ( Chrome Plated)

0435485

Housing Ay, Pump

0320570

Spacer Prop Nut

0335221

Screw ( Also Included In Water Pump Repair Kit 395060)

0314008

Grommet ( Also Included In Water Pump Repair Kit 395060)

0338893

Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395060)

0338742

Tab, Trim-std

0320943

Grommet ( Also Included In Water Pump Repair Kit 395060)

0310585

O Ring ( Also Included In Water Pump Repair Kit 395060)

0435027

Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395060 Stainless Steel)

0435526

Cup & Plate Ay ( Chrome Plated)

0306643

Screw ( Also Included In Water Pump Repair Kit 395060)

Винт

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395060)

0331999

Винт

0331353

Seal ( Also Included In Water Pump Repair Kit 395060)

5001593

Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395060)

0331107

Imp Key ( Also Included In Water Pump Repair Kit 395060)

0321122

Spacer-shift Rod ( 25 In. (635mm) Transom Models Only)

0333592

Thrust Bshg

0127084

Bushing, Thrust

0338484

Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit 395060 Also Included In Gearcase Seal Kit 396353)

Oil Retainer

Винт

Prop-al, 15.5 X 13

Prop Ay, Al 15x15v6

Prop Ay, Al 14.8x17

Prop Ay, Al 14.5x19

Prop Ay, Al 14.3x21

Prop Al 14.25 X 23

Vipertbx14.5x21rh

Vipertbx14.75x17rh

Prop

Converg Ring, V6

Prop Hub, 15 Spline

Prop Hub Shtr

Гильца

Cup & Plate Ay

Kit Ay, Seal-gc

Рем.комплект водяного насоса

10B

0331880

Штифт

28A

0332583

Washer, Dlr 5-pk

47A

0333572

Уплотнительное кольцо

0321174

0983141

See Pricebook ( Use Part Number 435020 For Outboards, Sea Drives And Stringer S.d. Use Part Number 986980 For Omc Cobra.)

0324408

( 25 In. (635mm) Transom Models Only)

0322302

0332000

( Also Included In Water Pump Repair Kit 395060)

Vipertbx14.75x19rh

Shooter-25p

398012

See Pricebook ( Not Shown 20 In. (508mm) Transom Models Only)

398013

0434418

See Pricebook ( Not Shown 25 In. (635mm) Transom Models Only)
