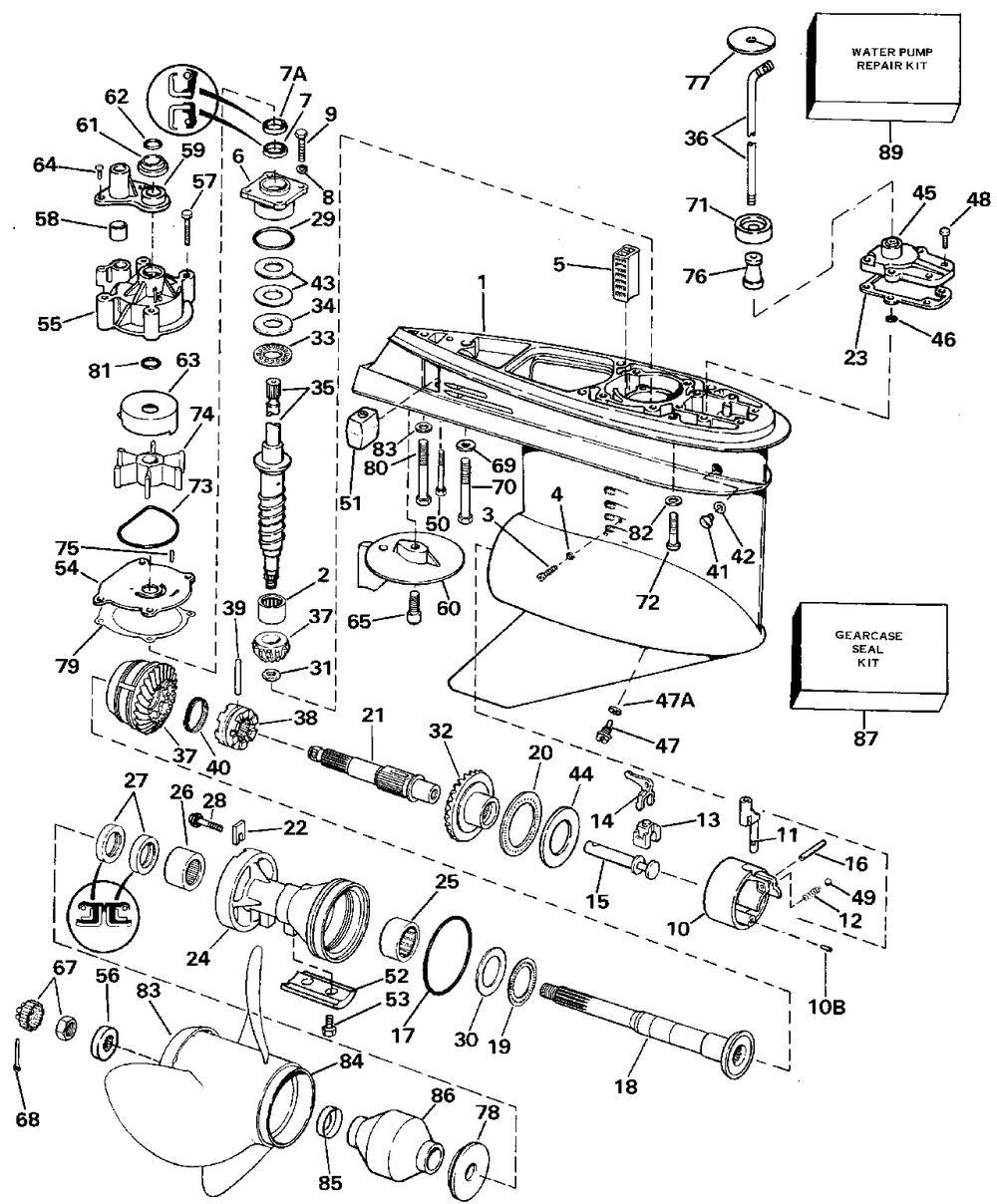

Корпус редуктора

Evinrude E225PXCCE
Evinrude
#oem кодцена
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0332584
Шайба
5
0321123
Screen, Water Intk
6
0439476
Ds Brg Hsg&seal Ay
7
0329923
Oil Retainer
8
0301250
Шайба
9
0316534
Screw Brg Hsg
10
0431693
Housing Ay
11
0916189
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0334160
Lever-shifter
15
0334143
Shaft-shifter
16
0319627
Палец
17
0305123
Уплотнительное кольцо
18
0431943
Prop Shaft
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0438251
Shaft Ay, Clutch
22
0333957
Retaining Tab
23
0352165
Прокладка
25
0431926
Brg Ay, Needle
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0350271
Screw, Brg Carrier
29
0354731
Уплотнительное кольцо
30
0313447
Шайба
31
0314730
Nut Pinion
32
0431703
Gear Ay-reverse
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
5000776
Kit Ay, D/shaft-25
35
5000775
Kit Ayd/shaft-20
36
0329865
Shift Rod, 25"
36
0329864
Shift Rod - 20"
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0333572
Уплотнительное кольцо
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0318544
Drain Screw
48
0302335
Крепление
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395060 Stainless Steel)
54
0435526
Cup & Plate Ay ( Chrome Plated)
55
0435485
Housing Ay, Pump
56
0320570
Spacer Prop Nut
57
0335221
Screw ( Also Included In Water Pump Repair Kit 395060)
58
0314008
Grommet ( Also Included In Water Pump Repair Kit 395060)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 395060)
60
0338743
Tab, Trim-c/r
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 395060)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit 395060)
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit 395060 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 395060)
65
0313715
Винт
67
0390842
Exh Cvr&plug
68
0306394
Cotter Pin 10 Pk
70
0331998
Винт
71
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 395060)
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 395060)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 395060)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 395060)
76
0321122
Spacer-shift Rod
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit 395060 Also Included In Gearcase Seal Kit 396353)
7A
0329922
Oil Retainer
80
0330263
Винт
82
0330266
Шайба
84
0763919
Vipertbx14.75x19lh
84
0763923
Vipertbx14.5x21-lh
84
0390823
Sst L.h. 23"
84
0763915
Vipertbx14.75x17lh
85
0313926
Гильца
86
0387157
Prop Hub, 15 Spline
87
5006373
Kit Ay, Seal-gc
89
5001594
Рем.комплект водяного насоса
10B
0331880
Штифт
47A
0333572
Уплотнительное кольцо
24
5000073
37
0431801
See Pricebook ( Use Part Number 434064 For Outboards And Sea Drive.)
38
0337774
Shifter-clutch Dog
77
0322302
78
0333592
Thrust Bshg
81
0332000
( Also Included In Water Pump Repair Kit 395060)
84
0394214
84
0394215
84
0398502
84
0398503
84
0398504
84
0398505
84
0398506
431907
0431907
See Pricebook ( Replaced By 435476 Gearcase And 435761 Upper Drive Shaft Ay. And If Required 329865 Shift Rod.)
433186
0433186
See Pricebook ( Not Shown Replaced By 435476 Gearcase And 435760 Upper Driveshaft Kit And If Required 329864 Shift Rod)
