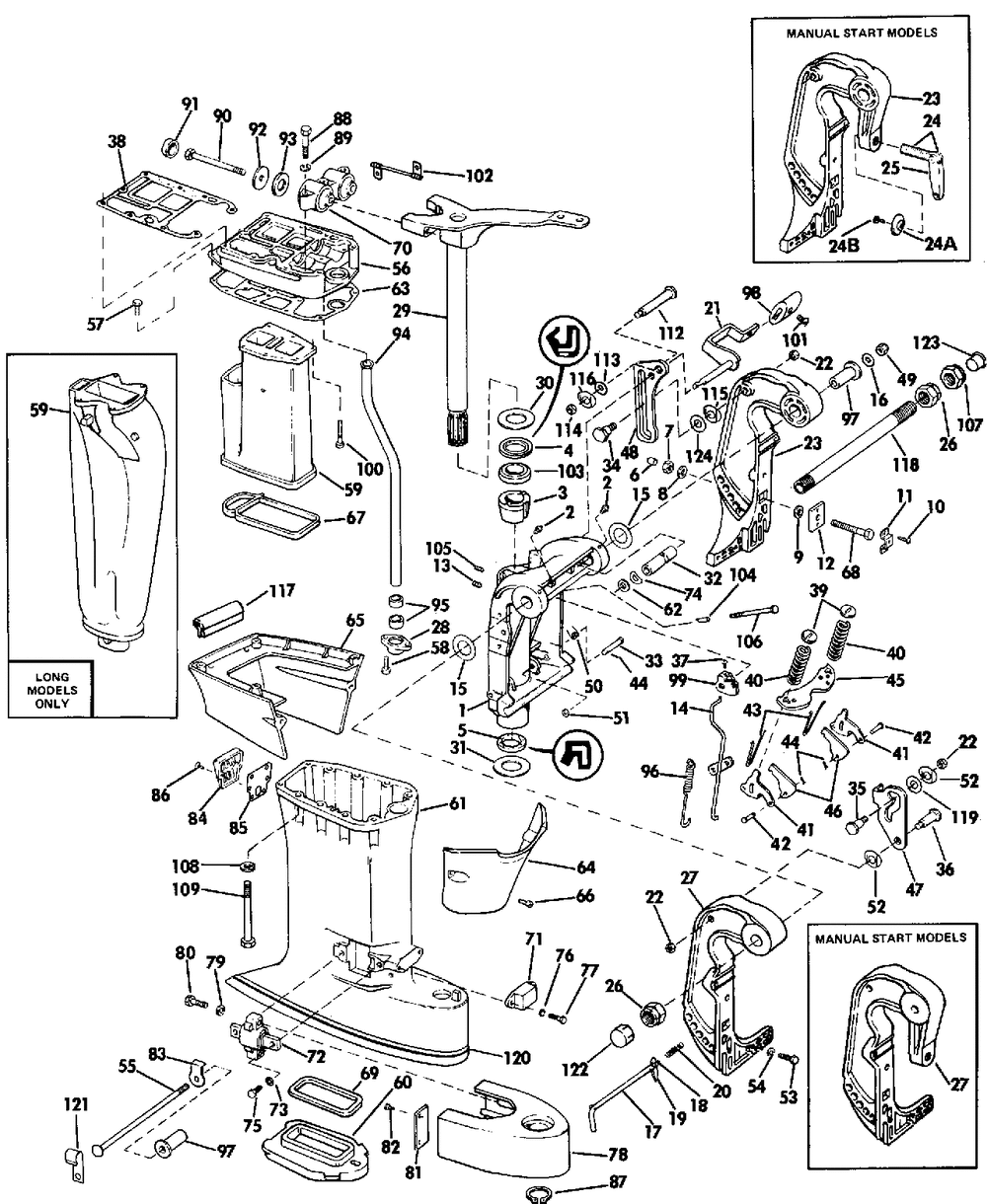

Струбцина Каталог оригинальных запчастей для лодочных моторов Evinrude E40ARLCCS (1988)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1988
E40ARLCCS
Струбцина
Струбцина

Струбцина

Evinrude E40ARLCCS

oem код

название

цена

0318229

Swivel Brkt ( Te Models Manual Start Models)

0318230

Swivel Brkt ( Te Models Manual Start Models)

0313607

Фитинг

0319253

Lub Fitting ( 40ttl Models)

0313880

Bushing ( Electric Start Models)

0317412

Bushing ( Te Models Manual Start Models 40ttl Models)

Уплотнение

Уплотнение

Cap-tran Scr 4pk

Гайка

Washer 5 Pk

Washer 5 Pk

Screw Ret To Plate

Седло

Sq Plate 4pk

Screw ( Te Models Manual Start Models 40ttl Models)

0387531

Rod&brkt Ay ( Models Without Power Trim And Tilt)

0317782

Упорная шайба

0314099

Washer ( Te Models Manual Start Models)

Штанга

Retainer Strn

Пружина

Lever&shaft ( Models Without Power Trim And Tilt)

0313838

Гайка

0319932

Stern Brkt Port ( Electric Start Models)

C-screw Kit

Clampscrew Kit

Kit, Handle&rivet

Locknut

Stern Brkt Stbd ( Electric Start Models)

Cvr-wtr Tube

Pivot Shaft&arm

Pivot Shaft&arm

Упорная шайба

Упорная шайба

Bushing ( Models Without Power Trim And Tilt)

0315961

Pin-link ( Models Without Power Trim And Tilt)

Винт

Винт

Винт

Screw-bellcrk ( Models Without Power Trim And Tilt)

0351018

Gasket, Pwhd-adapt

0314007

Cup ( Models Without Power Trim And Tilt)

0313817

Spring ( Models Without Power Trim And Tilt)

0315964

Link Lock Lvr ( Models Without Power Trim And Tilt)

0315962

Pin-link ( Models Without Power Trim And Tilt)

0315965

Retainer ( Models Without Power Trim And Tilt)

0302858

Cotter Pin ( Models Without Power Trim And Tilt)

0321234

Plate Reverse Lock ( Models Without Power Trim And Tilt)

0333871

Lever-locking ( Models Without Power Trim And Tilt)

0332199

Stop Link ( Models With Power Trim And Tilt)

0397210

Stop Link & Pin ( Models Without Power Trim And Tilt)

0332198

Stop Link ( Models With Power Trim And Tilt)

0313990

Nut ( Te Models Manual Start Models)

0315967

Spring-link ( Models Without Power Trim And Tilt)

0552499

Washer ( Models Without Power Trim And Tilt)

0553766

Washer ( Models Without Power Trim And Tilt)

0552940

Винт

0306470

Стопорная шайба

0327997

Bolt ( Te Models Manual Start Models)

Винт

Винт

Housing, Exhaust

Housing, Exhaust

Washer ( Models Without Power Trim And Tilt)

0351019

Gasket, Adptr-hsg

0350796

Cover Exh Hsg Frnt ( Models Without Power Trim And Tilt)

0323612

Cover ( Models With Power Trim And Tilt)

0315955

Seal-exh Hsg

0318573

3 1/2" Trnsm Bolt ( Models Without Power Trim And Tilt)

0336676

4 3/4" Trnsm Bolt ( Models Without Power Trim And Tilt As Required For Special Applications)

0354101

6" Trnsm Bolt ( Models Without Power Trim And Tilt As Required For Special Applications)

Seal-exh Hsg

Mount Ay, Rubber

Rubber Mt Low

Rubber Mt Ay-lwr

Стопорная шайба

Spring Washer ( Models Without Power Trim And Tilt)

Винт

Lockwasher 5 Pk

Винт

Стопорная шайба

Screw Mt Brkt

Cvr Mt Brkt

Screw Cover

Washer-tilt Pin ( Te Models Manual Start Models)

Cvr Exh Relef

Gasket, Ex Rlf Cvr

Винт

Retain Ring

Винт

Стопорная шайба

Винт

Амортизатор ударов

Retaining Washer

Шайба

Washer, Wtr Tube

Spring ( Models Without Power Trim And Tilt)

0325914

Bushing ( Te Models Manual Start Models)

0329012

Knob-tilt Lock ( Models Without Power Trim And Tilt)

0319904

Bellcrank Tiltlock ( Models Without Power Trim And Tilt)

100

0326469

Винт

101

0318238

Screw ( Models Without Power Trim And Tilt)

102

0582494

Lead Ay, Bonding

103

0317415

Thrust Ring ( Te Models Manual Start Models 40ttl Models)

104

0317418

Pin ( Te Models Manual Start Models 40ttl Models)

105

0317416

Scrw Thrst Rg ( Te Models Manual Start Models 40ttl Models)

106

0317525

Screw-string ( Te Models Manual Start Models 40ttl Models)

107

0322376

Nut-steering Wiper ( Recommended To Prevent Corrosion In Salt Water Use)

108

0309192

Шайба

109

0133022

Винт

112

0329156

Screw ( Models With Power Trim And Tilt)

113

0319278

Washer ( Models With Power Trim And Tilt)

114

0313990

Nut ( Models With Power Trim And Tilt)

115

0553766

Washer ( Models With Power Trim And Tilt)

116

0553766

Washer ( Models With Power Trim And Tilt)

118

0351896

Tube, Tilt Sst

119

0303864

Шайба

120

0210666

Наклейка

120

0332643

Наклейка

121

0310928

Clamp 'j'

122

0317894

Крышка

123

0318173

Заглушка

124

0303864

Шайба

24A

0434757

Plate&screw Ay

24B

Plate&screw Ay

Bracket, Swivel

( Manual Start Models)

0391939

( Manual Start Models)

Housing, Exhaust

Винт

172912

( Not Shown Models Without Power Trim And Tilt)
