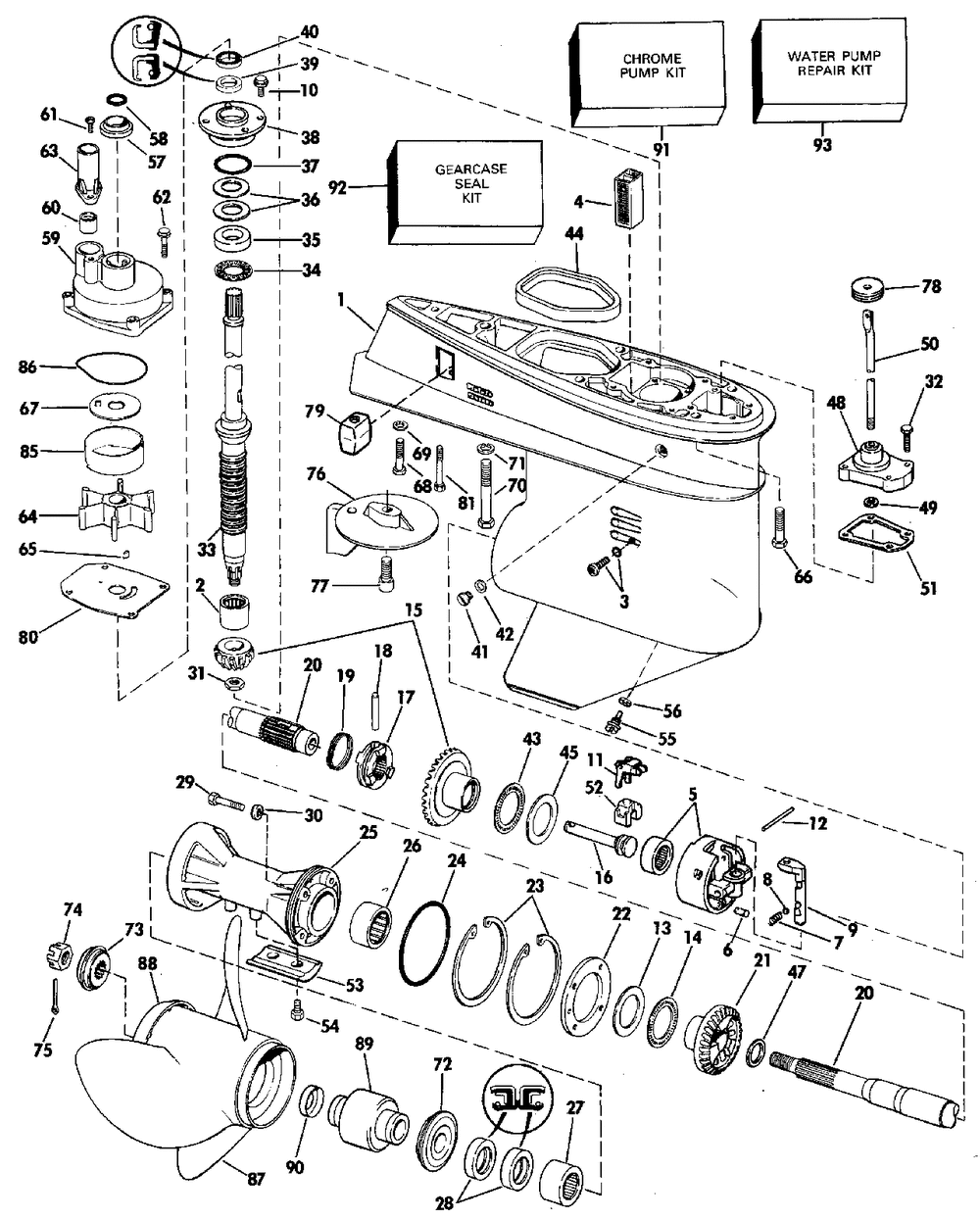

Редуктор

Evinrude E60TLCCR
Evinrude
#oem кодцена
1
5005458
Корпус редуктора
2
0382343
Подшипник
3
0324852
Retaining Screw
4
0314175
Водозаборная решетка
5
0391365
Brg Hgs, Pin&spring
6
0331880
Штифт
7
0326666
Пружина
8
0327345
Ball, Detent
9
0326670
Detent
10
0909386
Screw-ret Plate
11
0324037
Shifter Lever
12
0320145
Штифт
13
0313447
Шайба
14
0382408
Bearing Ay, Thrust
15
0397338
Gearset, Fwd&pin
16
0326668
Вал
17
0318303
Рычаг переключения
18
0313448
Штифт
19
0324369
Пружина
20
0439185
Вал гребново винта
21
0318304
Reverse Gear
22
0313453
Plate, Retainer
23
0313445
Прокладка
24
0313446
Уплотнительное кольцо
25
0434391
P-shft Brg Hsg Ay
26
0382407
Подшипник игольчатый
27
0379504
Needle Brg Ay
28
0330137
Seal, Drl 5-pk
29
0320041
Screw Brg Hsg
30
0332584
Шайба
31
0313339
Гайка
32
0302325
Винт
33
0391378
D-shaft-lng
34
0385068
Подшипник опорный
36
0323889
Shim-pinion .003
36
0323890
Shim-pinion .004
36
0317232
Shim 005
37
0313754
Уплотнительное кольцо
38
0385087
Dr Shft Brgseal3/4
39
0321466
Oil Ret 5 Pk
40
0332205
Oil Retainer
41
0307551
Пробка сливная
42
0333572
Уплотнительное кольцо
43
0385043
Thrust Brg Ay
44
0324937
Уплотнение
45
0324766
Упорная шайба
47
0316484
Упорная шайба
48
0388651
Cvr&bush Ay-rod
49
0318372
Уплотнительное кольцо
50
0327337
Shift Rod-long
51
0314082
Gasket 5 Pk
52
0334163
Cradle-shift
53
0431708
Анодная пластина
54
0332320
Винт
55
0318544
Drain Screw
56
0333572
Уплотнительное кольцо
57
0341732
Grommet ( Also Included In Water Pump Repair Kit 396726)
58
0326649
O-ring ( Also Included In Water Pump Repair Kit 396726 Also Included In Gearcase Seal Kit 396349)
59
0432955
Wtr Pump Kit
60
0314008
Grommet ( Also Included In Water Pump Repair Kit 396726)
61
0908158
Screw ( Also Included In Water Pump Repair Kit 396726)
62
0331979
Screw ( Also Included In Water Pump Repair Kit 396726)
63
0319276
Guide Tube
64
0396725
Imp & Key Ay ( Also Included In Water Pump Repair Kit 396726)
65
0331901
Key, Impeller-wht ( Also Included In Water Pump Repair Kit 396726)
66
0308843
Screw ( Also Included In Water Pump Repair Kit 396726)
67
0321940
Plate-imp Hsg ( Also Included In Water Pump Repair Kit 396726)
68
0306503
Винт
69
0306470
Стопорная шайба
70
0313697
Винт
71
0306314
Lockwasher 4pk
72
0127084
Bushing, Thrust
73
0315810
Проставка
74
0314503
Гайка гребного винта
75
0314502
Шплинт
76
0338742
Tab, Trim-std
77
0313715
Винт
78
0321452
Уплотнитель резиновый
79
0436745
Anode&insert Ay
80
0341038
Imp Hsg Plate ( Also Included In Water Pump Repair Kit 396726)
81
0328096
Screw, Anode
85
0324980
Liner-imp Hsg ( Also Included In Water Pump Repair Kit 396726)
86
0324981
Seal-imp Hsg ( Also Included In Water Pump Repair Kit 396726)
87
0763300
Prop Al, 14 X 9
87
0763301
Prop, Al 14 X 11
87
0765181
Prop, Al 13.75x13
87
0765182
Винт гребной алюминиевый 13,5 х 15
87
0765184
Prop Ay, Al 13.2x19
87
0765185
Prop Ay, Al 13.2x21
87
0390895
87
0763957
Ssp V4 13.75x13
87
0763930
Viperv4 13.875x17
87
0763931
Viperv4 13.875x19
87
0389512
87
0389514
Sst V-4 23"
87
0389792
Sst V-4 11"
87
0763929
Viper V413.875x15
87
0765183
Prop, Al 13.25x17
88
0332393
Converging Ring, V4
89
0384977
90
0313926
Гильца
91
0389145
Chrome Pump Kit
92
5000309
Kit Ay, Seal-grc
93
0396726
See Pricebook ( Use 438602 On 49cid Models From 1979 Thru 1988 Use 432955 On 56cid Models From 1986 Thru 1994)
93
0396729
See Pricebook ( Use 438602 For Service Of 1974-1978 Models Use 432955 For Service Of Other 3 Cycle Models)
332584
0332584
Washer 5pk ( Not Shown)
396730
0396730
( Not Shown)
