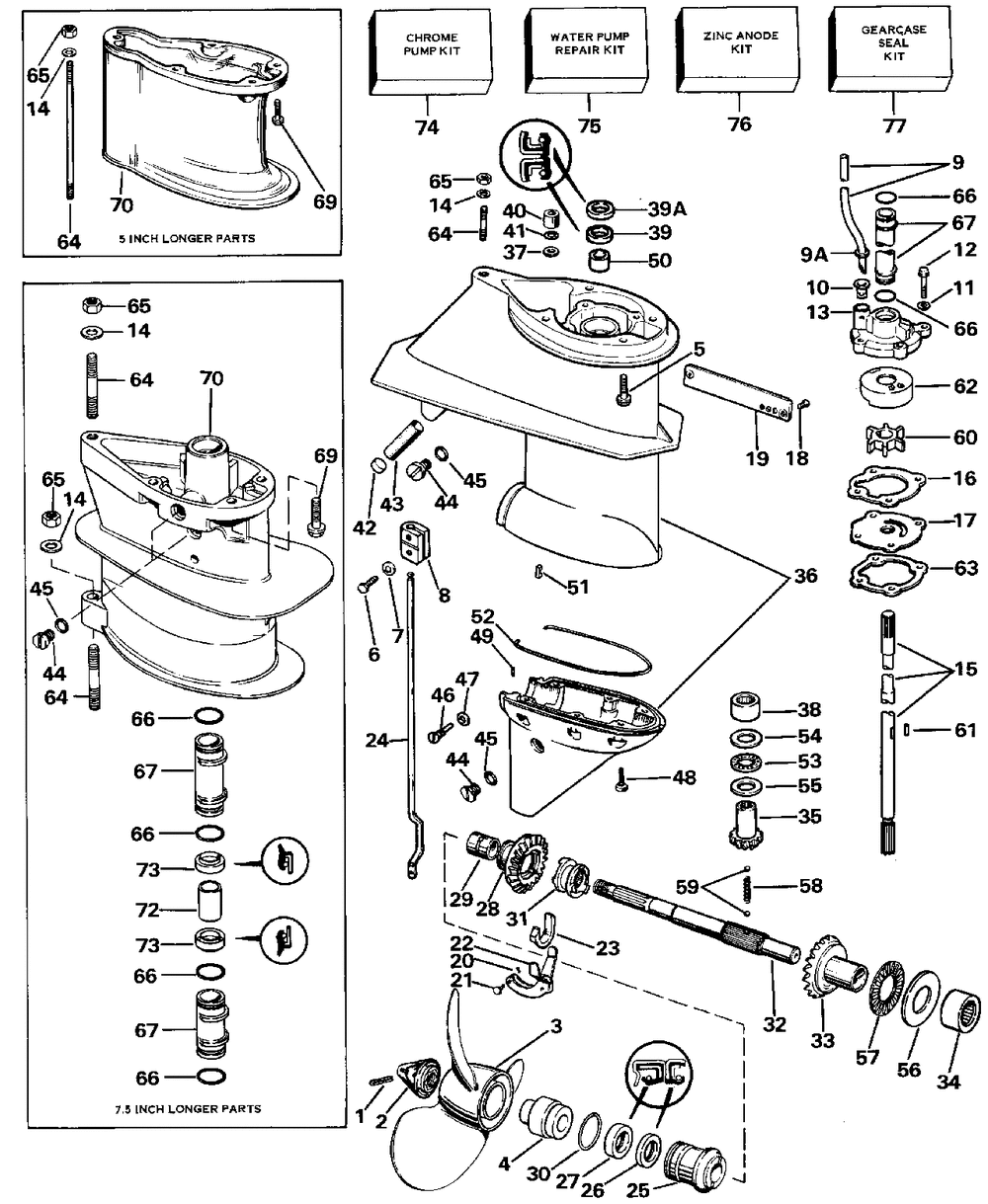

Редуктор

Evinrude U25RWA
Evinrude
#oem кодцена
1
0306394
Cotter Pin 10 Pk
2
0390294
Гайка гребного винта
3
0389067
Al Prop 25hp 7p
3
0763585
Prop, Al 9x9 3bld
3
0763589
Prop Al. 9x10
3
0763584
Prop Al. 9.25x11
3
0389321
3
0763590
Prop Ay, Al 9.25x12
3
0395232
4
0389281
Prop Hub 25 Hp ( Use Only With Propeller P/n 389067)
5
0328333
Винт
6
0304024
Screw ( 5 Inch Longer Models Only)
7
0301551
Lockwasher ( 5 Inch Longer Models Only)
8
0303794
Connector, Shft Rod
8
0304081
Connector, Shft Rod ( 5 Inch Longer Models Only)
9
0395339
Wtr Tube Ay
9
0395340
Wtr Tube Ay ( 5 Inch Longer Models Only)
10
0302497
Grommet ( Also Included In Water Pump Repair Kit 395271)
11
0328702
Washer ( Also Included In Water Pump Repair Kit 395271)
12
0324960
Screw ( Also Included In Water Pump Repair Kit 395271)
13
0330560
Imp Hsg
14
0312687
Washer ( 5 Inch Longer Models Only)
15
0341650
Driveshaft, 15"
15
0341649
Driveshaft, 20" ( 5 Inch Longer Models Only)
16
0329390
Gasket ( Also Included In Water Pump Repair Kit 395271)
17
0324564
Plate ( Also Included In Water Pump Repair Kit 395271 Chrome Plated)
17
0765642
Plate ( Also Included In Water Pump Repair Kit 395271 Stainless Steel)
18
0303587
Винт
19
0302505
Крышка
20
0306376
Шплинт
21
0302504
Штифт
22
0375755
Lever & Pin A
23
0325014
Зажим
24
0303098
Shift Rod, Low-std
25
0389045
Gcase Head&seal Ay
25
0303257
Shift Rod, Low-long ( 5 Inch Longer Models Only)
26
0321459
Oil Retainer
27
0321787
Seal Prop Shaft
28
0325258
Gear-reverse, 3lug
29
0303997
Втулка
30
0321921
Уплотнительное кольцо
31
0325263
Муфта переключения скоростей
32
0344231
33
0390295
Gear&bush-fwd, 3lug
34
0389472
Bearing-fwd Gear
35
0324457
Pinion-driveshaft
36
0432810
G-case & Brg
37
0304764
Прокладка
38
0376856
Brg Ay, Needle
39
0321459
Oil Retainer
40
0304765
Втулка
41
0301877
Кольцо
42
0300314
Заглушка
43
0302757
Водозаборная решетка
44
0307551
Пробка сливная
45
0333572
Уплотнительное кольцо
46
0308376
Винт
47
0332584
Шайба
48
0330562
Винт
49
0300611
Центрирующая втулка
50
0386071
Подшипник
51
0317728
53
0388027
Thrust Brg Ay
54
0319667
Ff Thrust Washer
55
0322688
Thrust Washer-lwr
56
0324459
Упорная шайба
57
0389470
Подшипник опорный
58
0316505
Пружина
59
0316506
Шарик фиксирующий
60
0395289
Imp & Key ( Also Included In Water Pump Repair Kit 395271)
61
0344470
Key, Impeller-blk ( Also Included In Water Pump Repair Kit 395271)
62
0328773
Cup-chrome ( Also Included In Water Pump Repair Kit 395271 Chrome Plated)
62
0328751
Cup, Imp Hsg ( Also Included In Water Pump Repair Kit 395271 Stainless Steel)
63
0324449
Gasket-impellr 5pk ( Also Included In Gearcase Seal Kit 396352 Also Included In Water Pump Repair Kit 395271)
64
0330060
Шпилька
65
0552938
Nut ( 5 Inch Longer Models Only)
66
0301967
O Ring ( Also Included In Water Pump Repair Kit 395271 5 Inch Longer Models Only)
67
0324453
Проставка
67
0324455
Spacer ( 5 Inch Longer Models Only)
69
0328333
Screw ( 5 Inch Longer Models Only)
70
0328336
Extension ( 5 Inch Longer Models Only)
74
0394392
75
0395270
Kit Ay, Wtr Pump
76
0173029
Zinc Anode Kit Ob
77
0396352
Комплект сальников редуктора
9A
0330658
Washer ( 5 Inch Longer Models Only)
39A
0330327
Oil Retainer
304454
0304454
Lockwasher ( Not Shown)
306643
0306643
Screw ( Not Shown)
325974
0325974
Rubber Mount ( Not Shown 5 Inch Longer Models Only)
325975
0325975
Rubber Mount ( Not Shown 5 Inch Longer Models Only)
332226
0332226
Screw ( Not Shown Optional)
396262
0396262
( Not Shown 5 Inch Longer Models Only)
398156
0432811
See Pricebook ( Not Shown Standard Length Models Only 5 Inch Longer Models Only Does Not Include Driveshaft)
