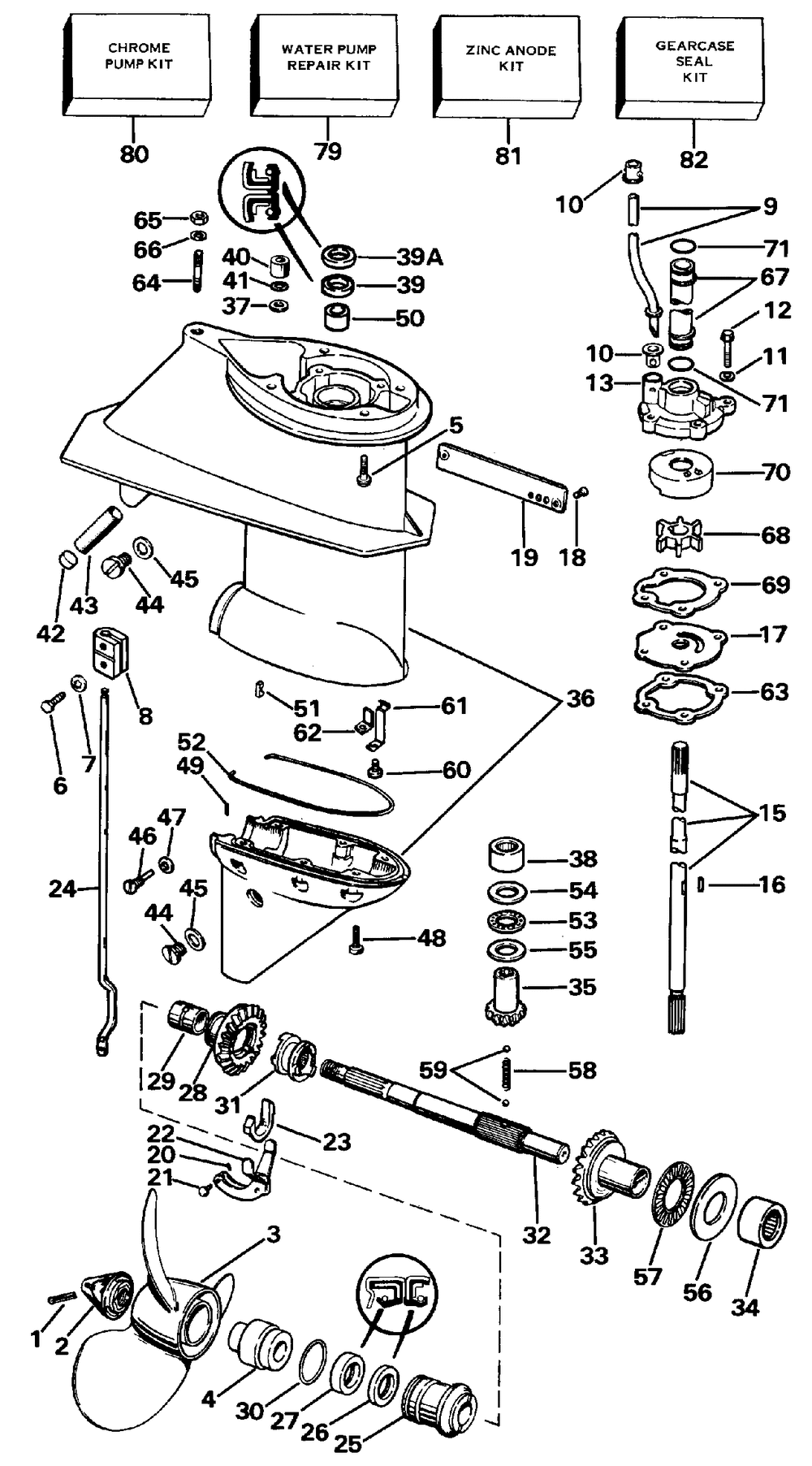

Редуктор

Evinrude VE14RCCS
Evinrude
#oem кодцена
1
0306394
Cotter Pin 10 Pk
2
0390294
Гайка гребного винта
3
0763585
Prop, Al 9x9 3bld
3
0763589
Prop Al. 9x10
3
0763584
Prop Al. 9.25x11
3
0389321
3
0763590
Prop Ay, Al 9.25x12
4
0389281
Prop Hub 25 Hp
5
0328333
Винт
6
0304024
Винт
7
0301551
Стопорная шайба
8
0303794
Connector, Shft Rod
9
0329363
Water Tube
10
0302497
Grommet ( Also Included In Water Pump Repair Kit 395271)
11
0328702
Washer ( Also Included In Water Pump Repair Kit 395271)
12
0324960
Screw ( Also Included In Water Pump Repair Kit 395271)
13
0330560
Imp Hsg ( Also Included In Water Pump Repair Kit 395271)
15
0329393
Driveshaft
16
0344470
Key, Impeller-blk ( Also Included In Water Pump Repair Kit 395271)
17
0324564
Plate ( Chrome Plated)
17
0765642
Plate ( Also Included In Water Pump Repair Kit 395271 Stainless Steel)
18
0303587
Screw ( Also Included In Water Pump Repair Kit 395271)
19
0302505
Крышка
20
0306376
Шплинт
21
0302504
Штифт
22
0375755
Lever & Pin A
23
0325014
Зажим
24
0329387
Shift Rod-lower
25
0389045
Gcase Head&seal Ay
26
0321459
Oil Retainer
27
0321787
Seal Prop Shaft
28
0329389
Шестерня -обратный ход
29
0303997
Bushing ( Also Included In Water Pump Repair Kit 395271)
30
0321921
Уплотнительное кольцо
31
0325263
Муфта переключения скоростей
32
0344231
33
0394121
Gear & Bushing Ay
34
0389472
Bearing-fwd Gear
35
0329392
Pinion-driveshaft
36
0432810
G-case & Brg
37
0304764
Gasket ( Stainless Steel)
38
0376856
Brg Ay, Needle
39
0321459
Oil Retainer
40
0304765
Втулка
41
0301877
Кольцо
42
0300314
Заглушка
43
0302757
Водозаборная решетка
44
0307551
Пробка сливная
45
0333572
Уплотнительное кольцо
46
0308376
Винт
47
0332584
Шайба
48
0330562
Винт
49
0300611
Центрирующая втулка
50
0386071
Подшипник
51
0317728
53
0388027
Thrust Brg Ay
54
0319667
Ff Thrust Washer
55
0322688
Thrust Washer-lwr
56
0324459
Упорная шайба
57
0389470
Подшипник опорный
58
0316505
Пружина
59
0316506
Шарик фиксирующий
60
0306478
Винт
61
0303466
Пружина
62
0303700
Пружина
63
0324449
Gasket-impellr 5pk ( Also Included In Water Pump Repair Kit 395271 Also Included In Gearcase Seal Kit 396352)
64
0330060
Шпилька
65
0552938
Гайка
66
0312687
Шайба
67
0329366
Проставка
68
0395289
Imp & Key ( Also Included In Water Pump Repair Kit 395271)
69
0329390
Gasket ( Also Included In Water Pump Repair Kit 395271 Also Included In Gearcase Seal Kit 396352)
70
0328773
Cup-chrome ( Chrome Plated)
70
0328751
Cup, Imp Hsg ( Also Included In Water Pump Repair Kit 395271 Also Included In Gearcase Seal Kit 396352)
71
0301967
O Ring ( Also Included In Water Pump Repair Kit 395271)
79
0395270
Kit Ay, Wtr Pump
80
0394392
81
0173029
Zinc Anode Kit Ob
82
0396352
Комплект сальников редуктора
39A
0330327
Oil Retainer
304454
0304454
Lockwasher ( Not Shown)
306643
0306643
Screw ( Not Shown)
398158
0398158
( Does Not Include Driveshaft)
