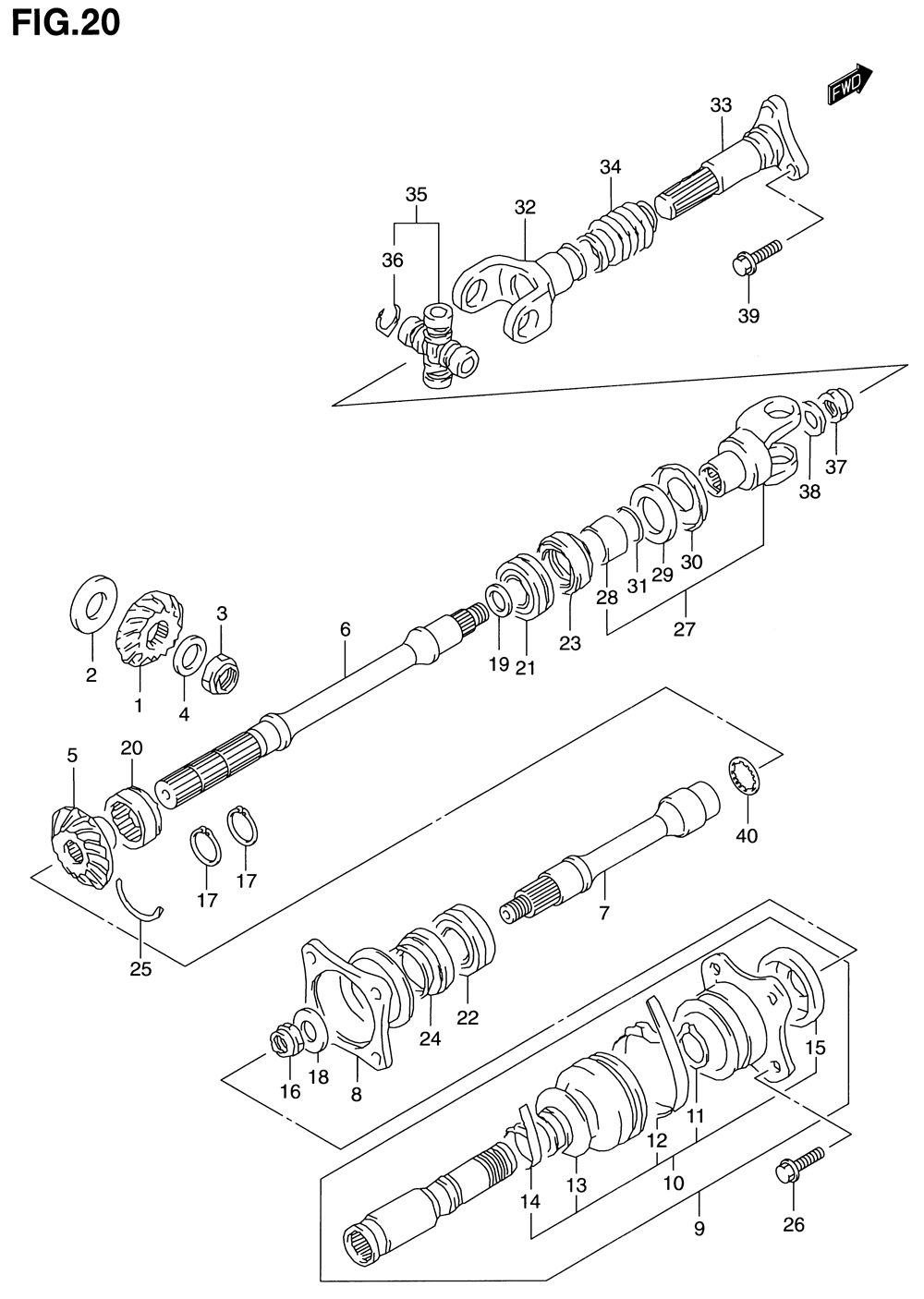

Secondary drive (model y)

Suzuki LT-A500F Quad Master

oem код

название

цена

1-1

24911-44D30

Gear, Sec Drive Bevel

24935-19810

Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)

09140-20012

Гайка

09181-20223

Washer (20x32x1.0)

5-1

24921-09F60

Gear, Sec Driven Bevel

24961-09F52

Shaft, Sec Driven Fr

24970-09F52

Shaft, Sec Driven Output Rear

27140-44D10

Flange, Rr Output Joint

27200-44D00

Joint Assy, Rear Output

.boot Set, Joint

..ring, Snap

.clamp, Outer

..boot

.clamp, Inner

..seal Plate

Nut, Sec Driven Bevel Couplin

08331-3124A

СТОПОРНОЕ КОЛЬЦО

09160-16026

Washer, Fr Drive Output Yoke

19-1

09181-25051

Shim, Sec Driven Gear

19-2

09181-25052

Shim, Sec Driven Gear

19-3

09181-25053

Shim, Sec Driven Gear

19-4

09181-25054

Shim, Sec Driven Gear

19-5

09181-25162

Shim 0.8

19-6

09181-25056

Shim, Sec Driven Gear

19-7

09181-25164

Shim 0.9

19-8

09181-25058

Shim, Sec Driven Gear

19-9

09181-25167

Washer, 5th Drive

19-10

09181-25060

Shim, Sec Driven Gear

19-11

09181-25061

Shim, Sec Driven Gear

19-12

09181-25062

Shim, Sec Driven Gear

19-13

09181-25063

Shim, Sec Driven Gear

09263-30050

Brg, Sec Driven Gear, Mdl

09267-25014

Brg, Sec Driven Output Sft Fr (25x52x20.625x52x20.6)

09283-34008

Oil Seal, Driven Sft, Fr (34x52x934x52x9)

09390-50002

Ring, Sec Driven Brg, Mdl

09106-08095

Bolt (8x16)

27130-19B10

Yoke, Fr Drive Bevel Gr

.collar

.plate, Oil Seal

.plate

.o Ring (d:1.0, Id:28)

Yoke, Prop Sft Joint

Вал гребного винта

Boot, Prop Shaft

Joint Set, Universal Rr

09380-25005

.circlip

01550-1020A

Bolt, Bal Sprocket

09167-24002

Washer, Sec Driven Shaft

24935-03811

Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
