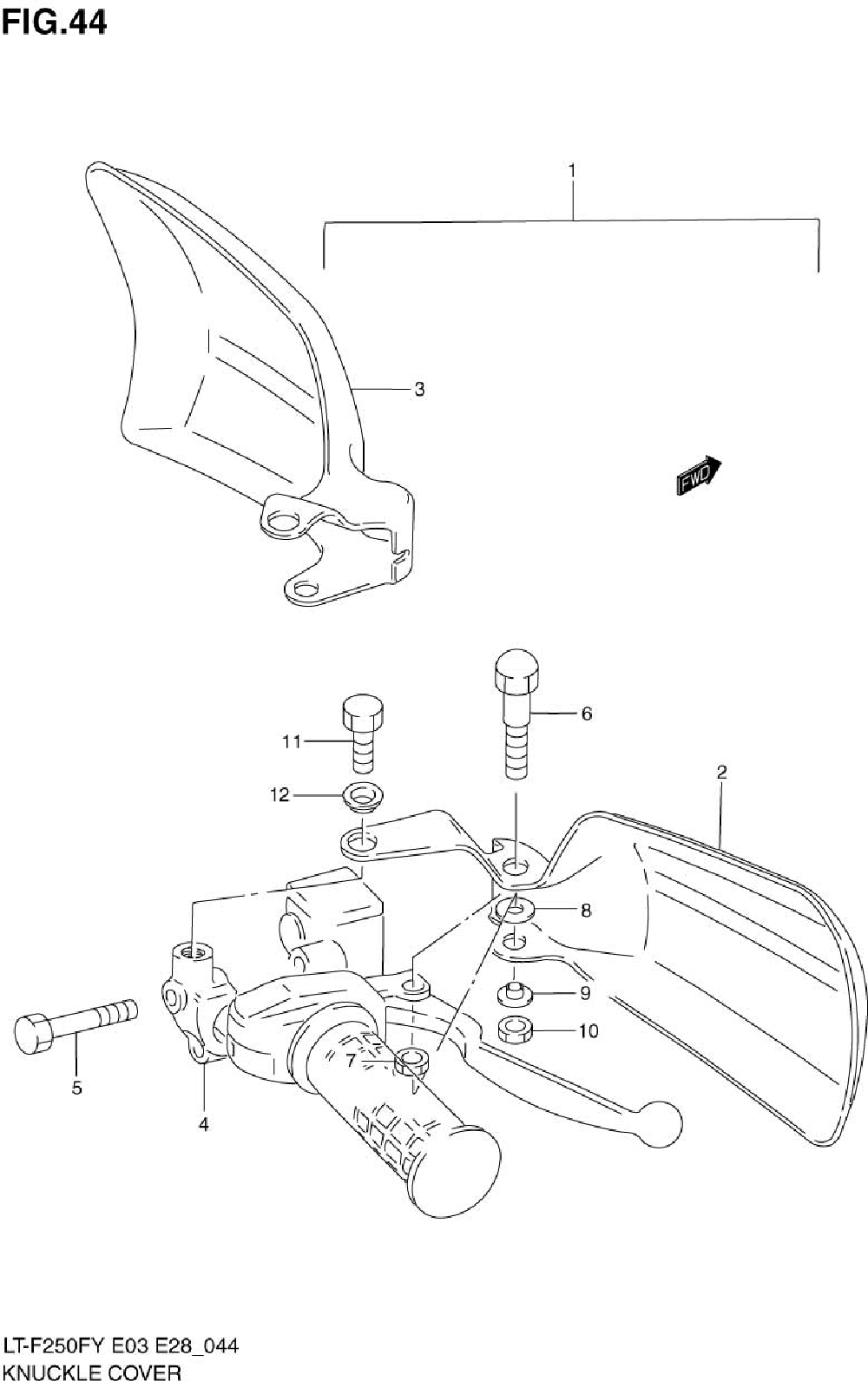

Knuckle cover (optional)

Suzuki LT-F250F Quad Runner 4WD

Knuckle cover (optional)

#

oem код

название

цена

2-2

57341-19B50-Y9N

.cover, Knuckle Rh (green)

.cover, Knuckle Rh (green)

2-3

57341-19B50-Y9P

.cover, Knuckle Rh (red)

.cover, Knuckle Rh (red)

3-1

57541-19B50-Z34

.cover, Knuckle Lh (brown)

.cover, Knuckle Lh (brown)

3-2

57541-19B50-Y9N

.cover, Knuckle Lh (green)

.cover, Knuckle Lh (green)

3-3

57541-19B50-Y9P

.cover, Knuckle Lh (red)

.cover, Knuckle Lh (red)

4

.holder

.holder

5

Болт

Болт

6

Винт

Винт

7

Гайка

Гайка

8

Шайба

Шайба

9

Washer, Cover Side

Washer, Cover Side

11

.bolt, Mirror Stay

.bolt, Mirror Stay

12

Шайба

Шайба

1-1

57300-19811-Z34

1-2

57300-19811-Y9N

Cover Set, Knuckle (green)

Cover Set, Knuckle (green)

1-3

57300-19811-Y9P

1-4

57300-19811-YT8

1-5

57300-19811-YT9

2-1

57341-19B50-Z34

.cover, Knuckle Rh (brown)

.cover, Knuckle Rh (brown)
