Редуктор Каталог оригинальных запчастей для лодочных моторов Evinrude E110TLCDF (1986)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1986
E110TLCDF

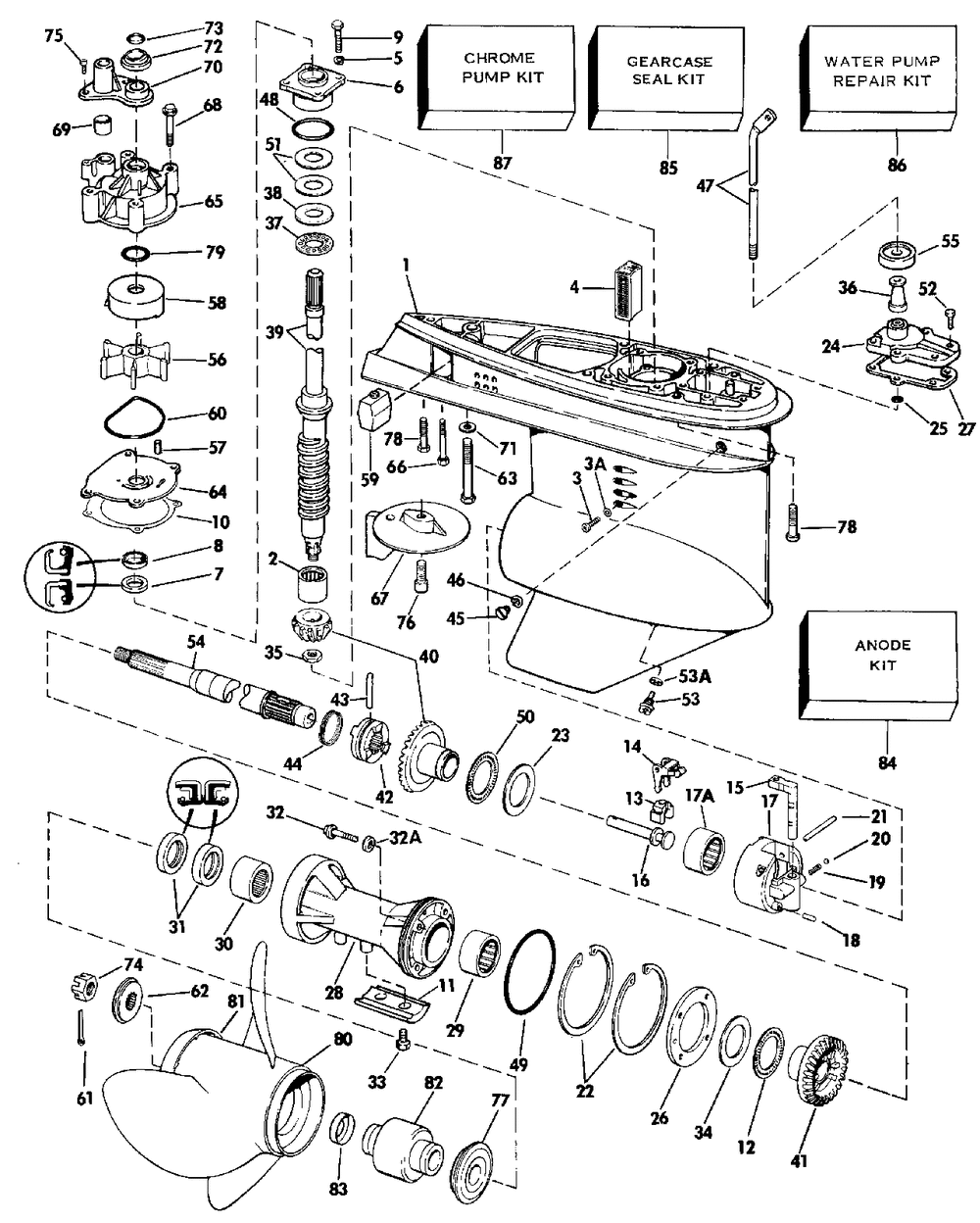

Редуктор
Редуктор

Редуктор

Evinrude E110TLCDF

oem код

название

цена

G-case&brg Ay, V4

Ndle Brg, Bh-1820

Retaining Screw

Screen-wtr Intake

Шайба

Ds Brg Hsg&seal Ay

Oil Retainer

Oil Retainer

Screw Brg Hsg

Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit #395062 Also Included In Gearcase Seal Kit #396354)

Анодная пластина

Bearing Ay, Thrust

Cradle-shift

Shifter Lever

Detent

Shaft-shifter

Brg Hgs, Pin&spring

Штифт

Пружина

Ball, Detent

Штифт

Прокладка

Упорная шайба

Cover Ay, Shift Rod

Уплотнительное кольцо

Пластина

Прокладка

Ps Brg Hsg&seal Ay

Подшипник игольчатый

Needle Brg Ay

Seal, Drl 5-pk

Винт

Винт

Упорная шайба

Nut Pinion

Spacer-shift Rod ( 635mm (25 Inch) Transom Models)

0387656

Thrust Brg Ay

0327656

Упорная шайба

5000777

Kit Ay, 2pc D/shaft ( 508 Mm (20 Inch) Transom Models)

5000778

Kit Ay, D-shaft 2pc ( 635mm (25 Inch) Transom Models)

Шайба

See Pricebook

Gear, Reverse V4

Shifter-clutch Dog

Штифт

Пружина

Пробка сливная

Washer-10 Pk

Уплотнительное кольцо

0332120

Shift Rod-long ( 508 Mm (20 Inch) Transom Models All Models Except 110tlcdf)

0323269

( 508 Mm (20 Inch) Transom Models 110tlcdf Model Only)

0332121

Shift Rod-x-long ( 635mm (25 Inch) Transom Models)

0354731

Уплотнительное кольцо

0313446

Уплотнительное кольцо

Thrust Brg Ay

Shim-pinion-003

Shim-pinion-004

Shim 005

Винт

Drain Screw

Вал гребново винта

Grommet Exh Hsg ( Also Included In Water Pump Repair Kit #395062)

5001593

Kit Ay, Impeller ( Also Included In Water Pump Repair Kit #395062)

0331107

Imp Key ( Also Included In Water Pump Repair Kit #395062)

0435027

Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)

0435526

Cup & Plate Ay ( Chrome Plated)

0436745

Anode&insert Ay

0331353

Seal ( Also Included In Water Pump Repair Kit #395062)

Шплинт

Проставка

Винт

Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)

0435526

Cup & Plate Ay ( Chrome Plated)

Housing Ay, Pump

Screw, Anode

Tab, Trim-std

Screw ( Also Included In Water Pump Repair Kit #395062)

0314008

Grommet ( Also Included In Water Pump Repair Kit #395062)

0338893

Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit #395062)

0330265

Шайба

0320943

Grommet ( Also Included In Water Pump Repair Kit #395062)

0310585

O Ring ( Also Included In Water Pump Repair Kit #395062)

0314503

Гайка гребного винта

0306643

Screw ( Also Included In Water Pump Repair Kit #395062)

Винт

Bushing, Thrust

Винт

( Also Included In Water Pump Repair Kit #395062)

0763301

Prop, Al 14 X 11

0765181

Prop, Al 13.75x13

0765182

Винт гребной алюминиевый 13,5 х 15

Prop, Al 13.25x17

Prop Ay, Al 13.2x19

Prop Ay, Al 13.2x21

Viper V413.875x15

Viperv4 13.875x17

Viperv4 13.875x19

Sst V-4 23"

Ssp V4 13.75x13

Sst V-4 11"

Converging Ring, V4

Гильца

Anode Kit

Kit Ay, Seal-gc

Рем.комплект водяного насоса

0435526

Cup & Plate Ay

17A

0382407

Подшипник игольчатый

32A

0332583

Washer, Dlr 5-pk

53A

0311598

Washer-10 Pk

53A

0333572

Уплотнительное кольцо

328096

0328096

Screw, Anode ( Not Shown)

393023

0436745

Anode&insert Ay ( Not Shown)

397085

0398182

See Pricebook ( Not Shown 508 Mm (20 Inch) Transom Models All Models Except 110tlcdf)

397086

0398183

See Pricebook ( Not Shown 635mm (25 Inch) Transom Models)

397945

0397945

See Pricebook ( Replaced By 435474 Gearcase And 435760 Upper Drive Shaft Ay., And If Required 332120 Shift Rod)
