Струбцина Каталог оригинальных запчастей для лодочных моторов Evinrude E65WMLCDR (1986)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1986
E65WMLCDR
Струбцина
Струбцина

Струбцина

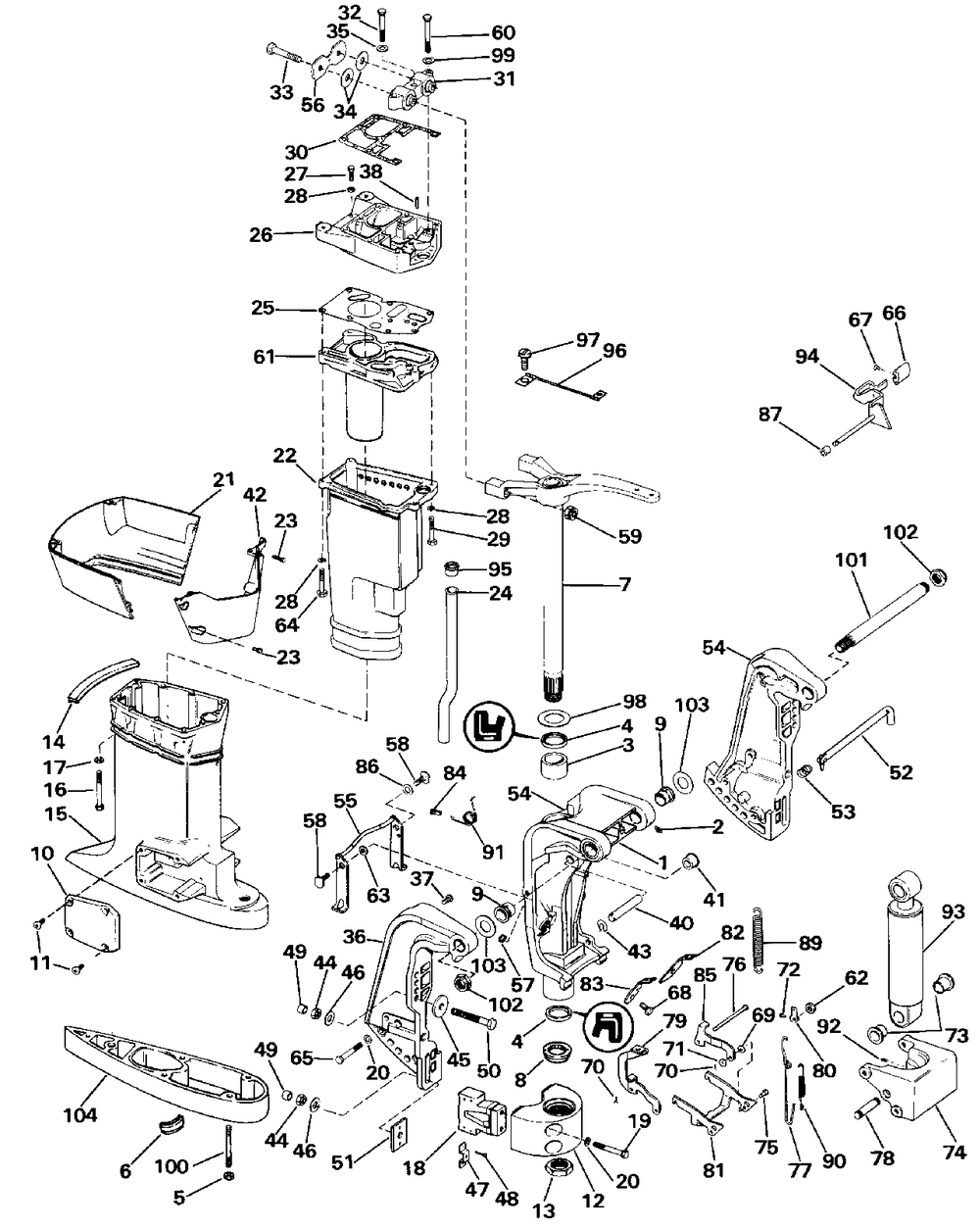

Evinrude E65WMLCDR

Струбцина

#

oem код

название

цена

1

See Pricebook

See Pricebook

2

Фитинг

Фитинг

3

Bushing Swiv Bk

Bushing Swiv Bk

4

Seal Swiv Brkt

Seal Swiv Brkt

7

Steer Arm & Shaft

Steer Arm & Shaft

8

Keeper

Keeper

9

Bushing Swiv Bk

Bushing Swiv Bk

10

11

Винт

Винт

12

13

Lock Nut

Lock Nut

14

15

Exh Hsg

Exh Hsg

16

Винт

Винт

17

Стопорная шайба

Стопорная шайба

18

19

Винт

Винт

20

Стопорная шайба

Стопорная шайба

21

Крышка

Крышка

22

23

Винт

Винт

24

Water Tube

Water Tube

25

Прокладка

Прокладка

26

27

Винт

Винт

28

Lockwasher 5 Pk

Lockwasher 5 Pk

29

Винт

Винт

30

Прокладка

Прокладка

31

Mount Ay, Rubber

Mount Ay, Rubber

32

Винт

Винт

33

Винт

Винт

34

Шайба

Шайба

35

Шайба

Шайба

36

Stern Bracket Ay

Stern Bracket Ay

37

Винт

Винт

38

40

Pin Tilt Cyl Up

Pin Tilt Cyl Up

41

Bushing-upr Tilt

Bushing-upr Tilt

42

43

Spring Clip 2pk

Spring Clip 2pk

44

Гайка

Гайка

45

Washer 5 Pk

Washer 5 Pk

46

Washer 5 Pk

Washer 5 Pk

47

Седло

Седло

48

Screw Ret To Plate

Screw Ret To Plate

49

Cap-tran Scr 4pk

Cap-tran Scr 4pk

50

3 1/2" Trnsm Bolt

3 1/2" Trnsm Bolt

50

4 3/4" Trnsm Bolt ( As Required)

4 3/4" Trnsm Bolt ( As Required)

51

Sq Plate 4pk

Sq Plate 4pk

52

Rod Ay, Thrust

Rod Ay, Thrust

53

Spring Thrs Rod

Spring Thrs Rod

54

55

56

Retaining Plate

Retaining Plate

57

Locknut

Locknut

58

Винт

Винт

59

Locknut

Locknut

60

Винт

Винт

61

62

Spacer-shaft

Spacer-shaft

63

Шайба

Шайба

64

Винт

Винт

65

Винт

Винт

65

Винт

Винт

66

Knob-tilt Lock ( Wmlc Model Only)

Knob-tilt Lock ( Wmlc Model Only)

67

Screw ( Wmlc Model Only)

Screw ( Wmlc Model Only)

68

Screw Brkt To Arm ( Wmlc Model Only)

Screw Brkt To Arm ( Wmlc Model Only)

69

Washer ( Wmlc Model Only)

Washer ( Wmlc Model Only)

70

Cotter Pin ( Wmlc Model Only)

Cotter Pin ( Wmlc Model Only)

71

Washer ( Wmlc Model Only)

Washer ( Wmlc Model Only)

72

Screw-bellcrk ( Wmlc Model Only)

Screw-bellcrk ( Wmlc Model Only)

73

Bushing Tilt Cy ( Wmlc Model Only)

Bushing Tilt Cy ( Wmlc Model Only)

74

Spacer ( Wmlc Model Only)

Spacer ( Wmlc Model Only)

75

Pin ( Wmlc Model Only)

Pin ( Wmlc Model Only)

76

Pin ( Wmlc Model Only)

Pin ( Wmlc Model Only)

77

Rod ( Wmlc Model Only)

Rod ( Wmlc Model Only)

78

Pin ( Wmlc Model Only)

Pin ( Wmlc Model Only)

79

Link Rev Lock Stbd ( Wmlc Model Only)

Link Rev Lock Stbd ( Wmlc Model Only)

80

( Wmlc Model Only)

( Wmlc Model Only)

81

Locking Lever ( Wmlc Model Only)

Locking Lever ( Wmlc Model Only)

82

Retainer ( Wmlc Model Only)

Retainer ( Wmlc Model Only)

83

Retainer ( Wmlc Model Only)

Retainer ( Wmlc Model Only)

84

Retainer, Trail Lk

Retainer, Trail Lk

85

Link Reverse Lock ( Wmlc Model Only)

Link Reverse Lock ( Wmlc Model Only)

86

Washer ( Wmlc Model Only)

Washer ( Wmlc Model Only)

87

Spacer Handle ( Wmlc Model Only)

Spacer Handle ( Wmlc Model Only)

89

Spring ( Wmlc Model Only)

Spring ( Wmlc Model Only)

90

Spring Trail Lock ( Wmlc Model Only)

Spring Trail Lock ( Wmlc Model Only)

91

Пружина

Пружина

92

Screw-brkt-gr Hsg

Screw-brkt-gr Hsg

93

Shock Absorber ( Wmlc Model Only)

Shock Absorber ( Wmlc Model Only)

94

Lever & Shaft Ay ( Wmlc Model Only)

Lever & Shaft Ay ( Wmlc Model Only)

95

Уплотнение

Уплотнение

96

Lead Ay, Bonding

Lead Ay, Bonding

97

98

Упорная шайба

Упорная шайба

99

Стопорная шайба

Стопорная шайба

101

Tube, Tilt - Steel

Tube, Tilt - Steel

102

Locknut

Locknut

103

Упорная шайба

Упорная шайба
