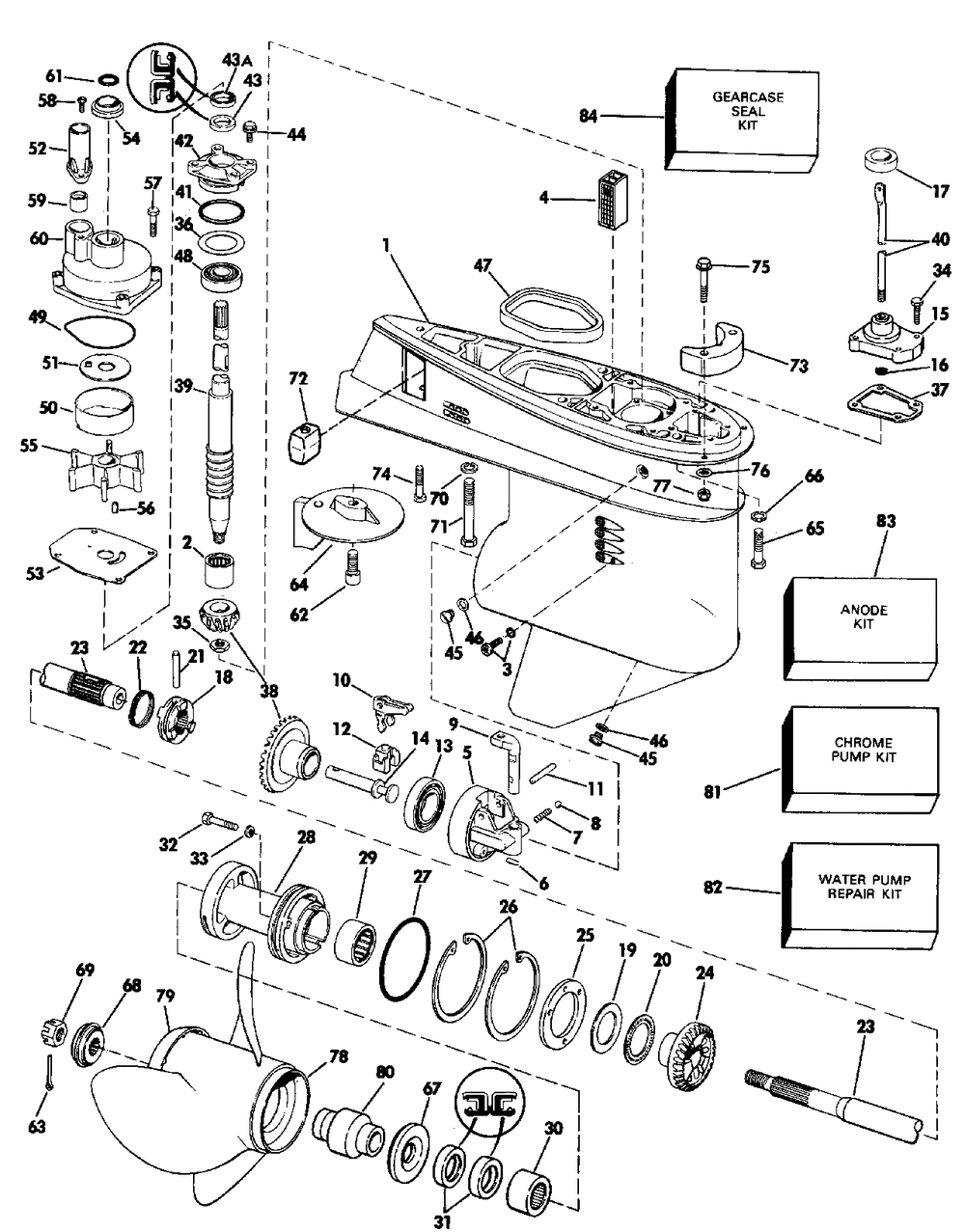

Gearcase - 15" transom

Evinrude E75ECDC
Evinrude
#oem кодцена
1
0392196
2
0386766
Needle Brg Ds Lowr
3
0324852
Retaining Screw
4
0320042
Screen Water Intke
5
0387066
Brg Hsg&pin Ay
6
0331880
Штифт
7
0312870
Пружина
8
0160084
Шарик
9
0322636
Detent-shifter
10
0320120
Shift Lever
11
0320145
Штифт
12
0334163
Cradle-shift
13
3854249
Bearing Ay, Roller
14
0320172
Shaft Shifter
15
0387336
Cvr&bush Ay Shftrd
16
0318372
Уплотнительное кольцо
17
0305762
Уплотнительное Кольцо
18
0319895
Shifter Clutch Dog
19
0320115
Упорная шайба
20
0386719
Thrust Brg Ay
21
0320310
Pin Clutch Dog
22
0320311
Пружина
23
0386659
Гребной вал
24
0320113
Reverse Gear
25
0320304
Retainer Plate
26
0320309
Ret Ring Brg Hsg
27
0320303
O Ring Brg Hsg
28
0386920
29
0386764
Подшипник игольчатый
30
0386765
Подшипник игольчатый вала винта
31
0321467
Уплотнение
32
0320041
Screw Brg Hsg
33
0332584
Шайба
34
0302325
Винт
35
0313339
Гайка
36
0320166
Shim Dshaft .003
36
0320167
Shim Dshaft .004
36
0320168
Shim Dshaft .005
36
0320169
Shim Dshaft .006
36
0320170
Shim Dshaft .007
37
0314082
Gasket 5 Pk
38
0397421
Gearset & Tag Ay
39
0391377
40
0320127
Shift Rod Std
41
0302588
O Ring 5 Pk
42
0387067
Housing&seal Ay
43
0321466
Oil Ret 5 Pk
44
0909386
Screw-ret Plate
45
0307551
Пробка сливная
46
0311598
Washer-10 Pk
46
0333572
Уплотнительное кольцо
47
0324937
Уплотнение
48
0385175
Roller Brg Ay
49
0324981
Seal-imp Hsg ( Also Included In Water Pump Repair Kit #396729 Also Included In Gearcase Seal Kit #396355)
50
0324980
Liner-imp Hsg ( Also Included In Water Pump Repair Kit #396729)
51
0321940
Plate-imp Hsg
52
0319276
Guide Tube
53
0341038
Imp Hsg Plate ( Also Included In Water Pump Repair Kit #396729)
54
0341732
Grommet ( Also Included In Water Pump Repair Kit #396729)
55
0396725
Imp & Key Ay ( Also Included In Water Pump Repair Kit #396729)
56
0331901
Key, Impeller-wht ( Also Included In Water Pump Repair Kit #396729)
57
0331979
Винт
58
0908158
Screw ( Also Included In Water Pump Repair Kit #396729)
59
0314008
Grommet ( Also Included In Water Pump Repair Kit #396729)
60
0432955
Wtr Pump Kit
61
0326649
O-ring ( Also Included In Water Pump Repair Kit #396729)
62
0320040
Screw Trim Tab
63
0314502
Шплинт
64
0338742
Tab, Trim-std
65
0552968
Винт
66
0307708
Стопорная шайба
67
0320305
Thrust Bushing
68
0315810
Проставка
69
0314503
Гайка гребного винта
70
0306314
Lockwasher 4pk
72
0436745
Anode&insert Ay
73
0392462
Анодная пластина
74
0328096
Screw, Anode
75
0324430
Screw-imp Hsg
76
0307555
Стопорная шайба
77
0313022
Гайка
78
0763488
Prop, Al 13 X 11
78
0763461
Prop Al 12.5 X 13
78
0778774
Prop, Al 12.25 X 15
78
0763462
Prop, Al 12 X 17
78
0176423
78
0391014
78
0763896
Ss Prop 12 1/2x13
78
0763897
Ss Prop 12 1/4x15
78
0763898
Ss Prop 12x17
78
0390852
78
0391015
79
0332543
Converg Ring, 45x
80
0386787
Prop Hub 50 & 75
81
0389145
Chrome Pump Kit
82
0396726
See Pricebook ( Use 438602 On 49cid Models From 1979 Thru 1988 Use 432955 On 56cid Models From 1986 Thru 1994)
82
0396729
See Pricebook ( Use 438602 For Service Of 1974-1978 Models Use 432955 For Service Of Other 3 Cycle Models)
83
0392461
Anode Kit
84
0396355
Seal Kit G-case
43A
0332205
Oil Retainer
332584
0332584
Шайба
396731
0396731
( Not Shown)
