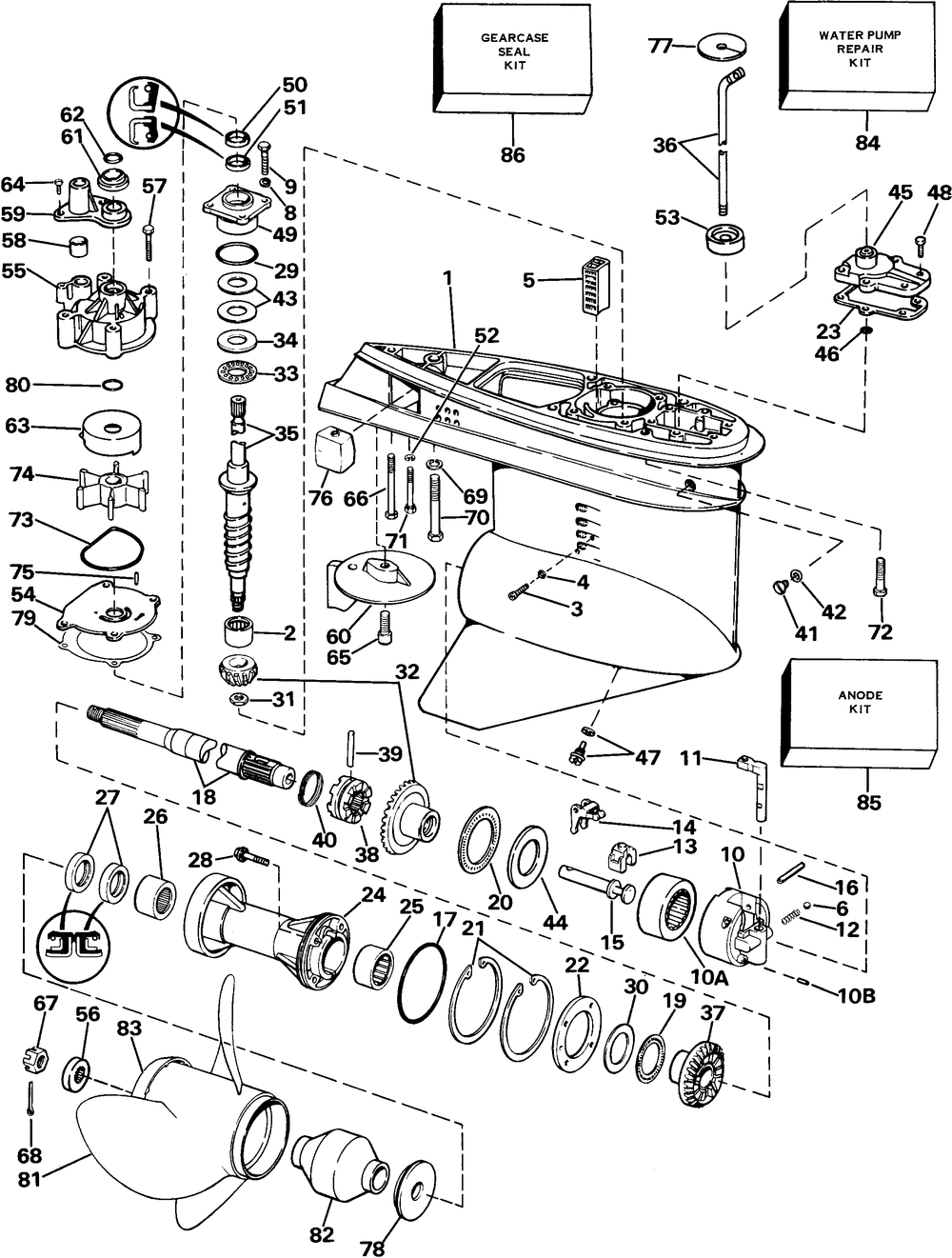

Редуктор

Evinrude E100WTLCOC
Evinrude
#oem кодцена
1
0438050
Kit Ay, Grc&hsg
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0307853
Seal, Screw
5
0321123
Screen, Water Intk
6
0160084
Шарик
8
0301250
Шайба
9
0316534
Screw Brg Hsg
10
0389455
Hsg.& Bearing Ay
11
0915954
Detent
12
0312870
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
Уплотнительное кольцо
18
0395209
Prop Shaft Ay
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0321171
Стопорное кольцо
22
0321174
23
0352165
Прокладка
24
0397094
Brg Hsg, Ndl, Seal
25
0382407
Подшипник игольчатый
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0316563
Винт
29
0354731
Уплотнительное кольцо
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0398101
Gear Kit, 12:27
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
5000775
Kit Ayd/shaft-20
36
0329558
Shift Rod-long
37
0398101
Gear Kit, 12:27
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0307551
Пробка сливная
42
0311598
Washer-10 Pk
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0318544
Drain Screw
48
0302325
Винт
49
0439476
Ds Brg Hsg&seal Ay
50
0329922
Oil Retainer
51
0329923
Oil Retainer
52
0328743
Шайба
53
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit #395062)
54
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)
54
0435526
Cup & Plate Ay ( Chrome Plated)
55
0435485
Housing Ay, Pump ( Also Included In Water Pump Repair Kit #395062)
56
0320570
Spacer Prop Nut
57
0335221
Screw ( Also Included In Water Pump Repair Kit #395062)
58
0314008
Grommet ( Also Included In Water Pump Repair Kit #395062)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit #395062)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Also Included In Water Pump Repair Kit #395062)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit #395062)
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit #395062)
65
0313715
Винт
66
0330263
Винт
67
0398042
Prop Nut & Keeper
68
0309955
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0328096
Screw, Anode
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit #395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit #395062)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit #395062)
76
0436745
Anode&insert Ay
77
0322302
78
0333592
Thrust Bshg
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit #395062 Also Included In Gearcase Seal Kit #396353)
80
0332000
81
0763453
Prop-al, 15.5 X 13
81
0765186
Prop Ay, Al 15x15v6
81
0765187
Prop Ay, Al 14.8x17
81
0765188
Prop Ay, Al 14.5x19
81
0765189
Prop Ay, Al 14.3x21
81
0763470
Prop Al 14.25 X 23
81
0389925
81
0763914
Vipertbx14.75x17rh
81
0763918
Vipertbx14.75x19rh
81
0763922
Vipertbx14.5x21rh
81
0389019
81
0390831
82
0387157
Prop Hub, 15 Spline
83
0332394
Converg Ring, V6
84
5001594
Рем.комплект водяного насоса
85
0392160
Anode Kit
86
5006373
Kit Ay, Seal-gc
10A
0389039
Brg Ay-fwd Gear
10B
0331880
Штифт
311598
0311598
Washer-10 Pk ( Not Shown)
394618
0394618
( Not Shown)
