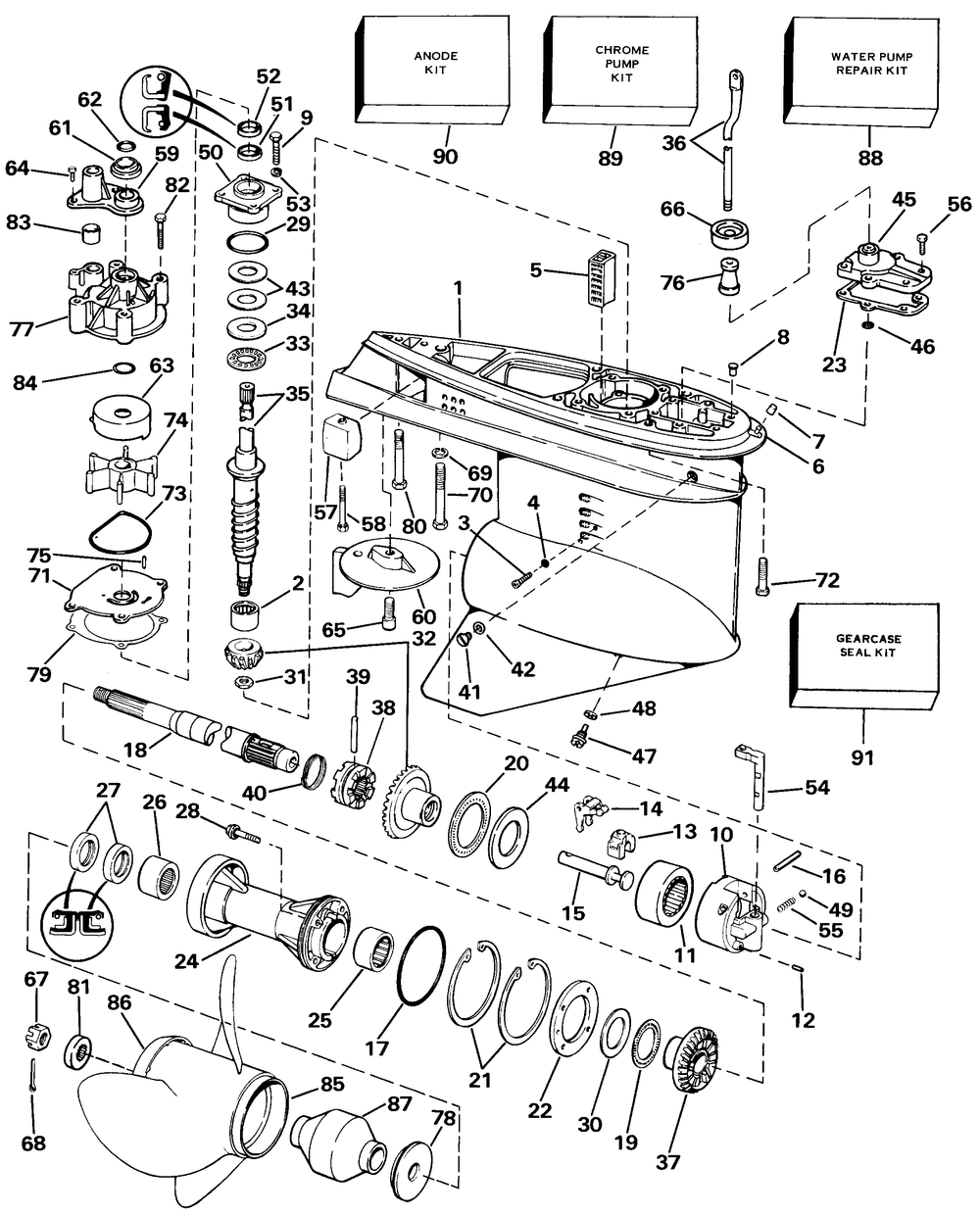

Редуктор

Evinrude E140TLCOS
Evinrude
#oem кодцена
1
0438050
Kit Ay, Grc&hsg
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
4
0307853
Seal, Screw
5
0321123
Screen, Water Intk
6
0326266
Ниппель
7
0305749
Nipple Plug
8
0329638
9
0316534
Screw Brg Hsg
10
0389455
Hsg.& Bearing Ay
11
0389039
Brg Ay-fwd Gear
12
0331880
Штифт
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
Уплотнительное кольцо
18
0395209
Prop Shaft Ay
19
0382408
Bearing Ay, Thrust
20
0389042
Thrust Brg-fwd Gr
21
0321171
Стопорное кольцо
22
0321174
23
0352165
Прокладка
24
0397094
Brg Hsg, Ndl, Seal
25
0382407
Подшипник игольчатый
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0316563
Винт
29
0354731
Уплотнительное кольцо
30
0314731
Упорная шайба
31
0313339
Гайка
32
0395010
Gearset & Tag Ay.
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0395025
Driveshaft-long ( 20 Inch Transom Models Only)
35
0395026
( 25 Inch Transom Models Only)
36
0329864
Shift Rod - 20" ( 20 Inch Transom Models Only)
36
0329865
Shift Rod, 25" ( 25 Inch Transom Models Only)
37
0329649
Шестерня -обратный ход
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0307551
Пробка сливная
42
0311598
Washer-10 Pk
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0318544
Drain Screw
48
0311598
Washer-10 Pk
49
0160084
Шарик
50
0439476
Ds Brg Hsg&seal Ay
51
0329923
Oil Retainer
52
0329922
Oil Retainer
53
0301250
Шайба
54
0915954
Detent
55
0312870
Пружина
56
0302325
Винт
57
0436745
Anode&insert Ay
58
0328096
Screw, Anode
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit #395062)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Also Included In Water Pump Repair Kit #395062)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit #395062)
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit #395062)
65
0313715
Винт
66
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit #395062)
67
0398042
Prop Nut & Keeper
68
0309955
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)
71
0435526
Cup & Plate Ay ( Chrome Plated)
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit #395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit #395062 Use With Stainless Steel Key)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit #395062 Use With White Plastic Key)
75
0323950
Key-impeller ( Use With Stainless Steel Key)
76
0321122
Spacer-shift Rod ( 25 Inch Transom Models Only)
77
0435485
Housing Ay, Pump
78
0333592
Thrust Bshg
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit #395062 Also Included In Gearcase Seal Kit #396353)
80
0330263
Винт
81
0320570
Spacer Prop Nut
82
0335221
Screw ( Also Included In Water Pump Repair Kit #395062)
83
0314008
Grommet ( Also Included In Water Pump Repair Kit #395062)
84
0332000
( Also Included In Water Pump Repair Kit #395062)
85
0763453
Prop-al, 15.5 X 13
85
0765186
Prop Ay, Al 15x15v6
85
0765187
Prop Ay, Al 14.8x17
85
0765188
Prop Ay, Al 14.5x19
85
0765189
Prop Ay, Al 14.3x21
85
0763470
Prop Al 14.25 X 23
85
0389925
85
0763918
Vipertbx14.75x19rh
85
0763922
Vipertbx14.5x21rh
85
0389019
85
0391863
85
0391864
85
0763914
Vipertbx14.75x17rh
85
0387995
85
0387996
85
0387997
Prop
85
0390725
85
0390831
86
0332394
Converg Ring, V6
87
0387157
Prop Hub, 15 Spline
88
5001594
Рем.комплект водяного насоса
89
0435526
Cup & Plate Ay
90
0392160
Anode Kit
91
5006373
Kit Ay, Seal-gc
396751
0434427
See Pricebook ( 20 Inch Transom Models Only Not Shown)
396752
0396752
( 25 Inch Transom Models Only Not Shown)
