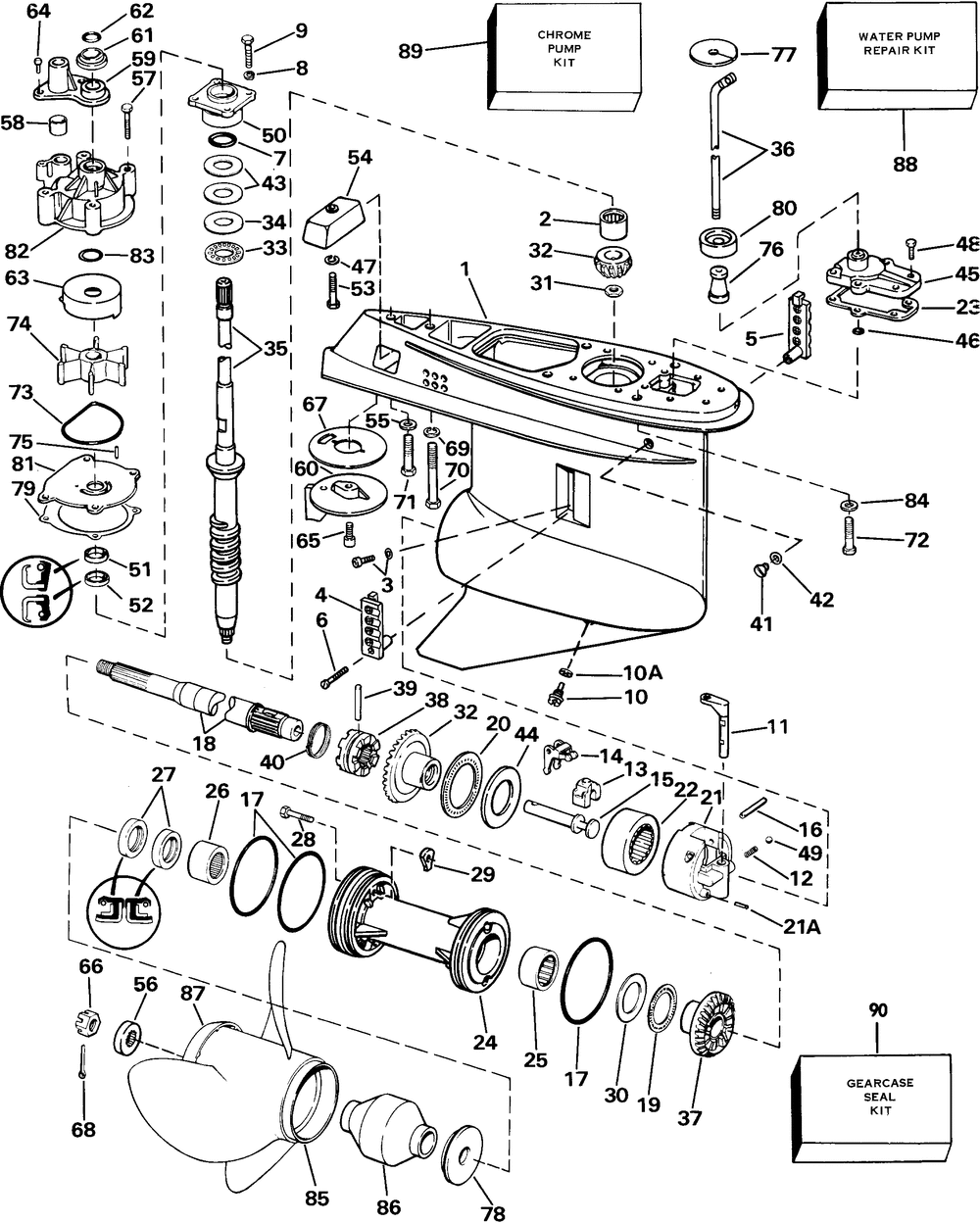

Редуктор

Evinrude E155WTLCOC
Evinrude
#oem кодцена
1
0398191
See Pricebook
2
0391471
Roller Brg
3
0324852
Retaining Screw
4
0331535
Водозаборная решетка
5
0396228
6
0314417
Screw, Slot-pan Hd
7
0354731
Уплотнительное кольцо
8
0301250
Шайба
9
0316534
Screw Brg Hsg
10
0318544
Drain Screw
11
0326807
Detent-shifter
12
0312870
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0326823
Shaft-shifter
16
0317274
Штифт
17
0326849
Уплотнительное кольцо
18
0395209
Prop Shaft Ay
19
0382408
Bearing Ay, Thrust
20
0391473
Подшипник
21
0431735
22
0391505
23
0352165
Прокладка
24
0438032
25
0382407
Подшипник игольчатый
26
0387247
Needle Brg Ay
27
0320862
Уплотнение
28
0309244
Винт
29
0332091
Седло
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
0394836
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
5000630
( 508mm (20 Inch) Models Only)
35
5000634
( 635mm (25 Inch) Models Only)
36
0327658
Shift Rod ( 508mm (20 Inch) Models Only)
36
0327659
Shift Rod ( 635mm (25 Inch) Models Only)
37
0327661
Шестерня -обратный ход
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0307551
Пробка сливная
42
0311598
Washer-10 Pk
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0326733
45
5006241
Cover Ay, Shift Rod
46
0318372
Уплотнительное кольцо
47
0307555
Стопорная шайба
48
0302325
Винт
49
0160084
Шарик
50
0439476
Ds Brg Hsg&seal Ay
51
0329922
Oil Retainer
52
0329923
Oil Retainer
53
0330989
Винт
54
0395634
Anode & Insert
55
0326785
Шайба
56
0320570
Spacer Prop Nut
57
0335221
Screw ( Also Included In Water Pump Repair Kit #395062)
58
0314008
Grommet ( Also Included In Water Pump Repair Kit #395062)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit #395062)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Also Included In Water Pump Repair Kit #395062)
62
0310585
O Ring ( Also Included In Water Pump Repair Kit #395062)
63
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)
63
0435526
Cup & Plate Ay ( Chrome Plated)
64
0306643
Screw ( Also Included In Water Pump Repair Kit #395062)
65
0313715
Винт
66
0398042
Prop Nut & Keeper
67
0331409
Уплотнение
68
0309955
Cotter Pin 10 Pk
69
0326784
Шайба
70
0331998
Винт
71
0330263
Винт
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit #395062)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit #395062)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit #395062)
76
0321122
Spacer-shift Rod ( 635mm (25 Inch) Models Only)
77
0322302
78
0333592
Thrust Bshg
79
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kit #395062 Also Included In Gearcase Seal Kit #396353)
80
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit #395062)
81
0435027
Cup & Plate Ay ( Also Included In Water Pump Repair Kit #395062 Stainless Steel)
81
0435526
Cup & Plate Ay ( Chrome Plated)
82
0435485
Housing Ay, Pump ( Also Included In Water Pump Repair Kit #395062)
83
0332000
( Also Included In Water Pump Repair Kit #395062)
84
0330266
Шайба
85
0763453
Prop-al, 15.5 X 13
85
0765186
Prop Ay, Al 15x15v6
85
0765187
Prop Ay, Al 14.8x17
85
0765188
Prop Ay, Al 14.5x19
85
0765189
Prop Ay, Al 14.3x21
85
0763470
Prop Al 14.25 X 23
85
0390831
85
0389925
85
0763914
Vipertbx14.75x17rh
85
0763918
Vipertbx14.75x19rh
85
0763922
Vipertbx14.5x21rh
85
0389019
85
0390725
86
0387157
Prop Hub, 15 Spline
87
0332394
Converg Ring, V6
88
5001594
Рем.комплект водяного насоса
89
0435526
Cup & Plate Ay
90
5006373
Kit Ay, Seal-gc
10A
0311598
Washer-10 Pk
21A
0331880
Штифт
307853
0307853
Seal, Screw ( Not Shown)
395695
0395695
( Not Shown 508mm (20 Inch) Models Only)
395696
0395696
( Not Shown 635mm (25 Inch) Models Only)
