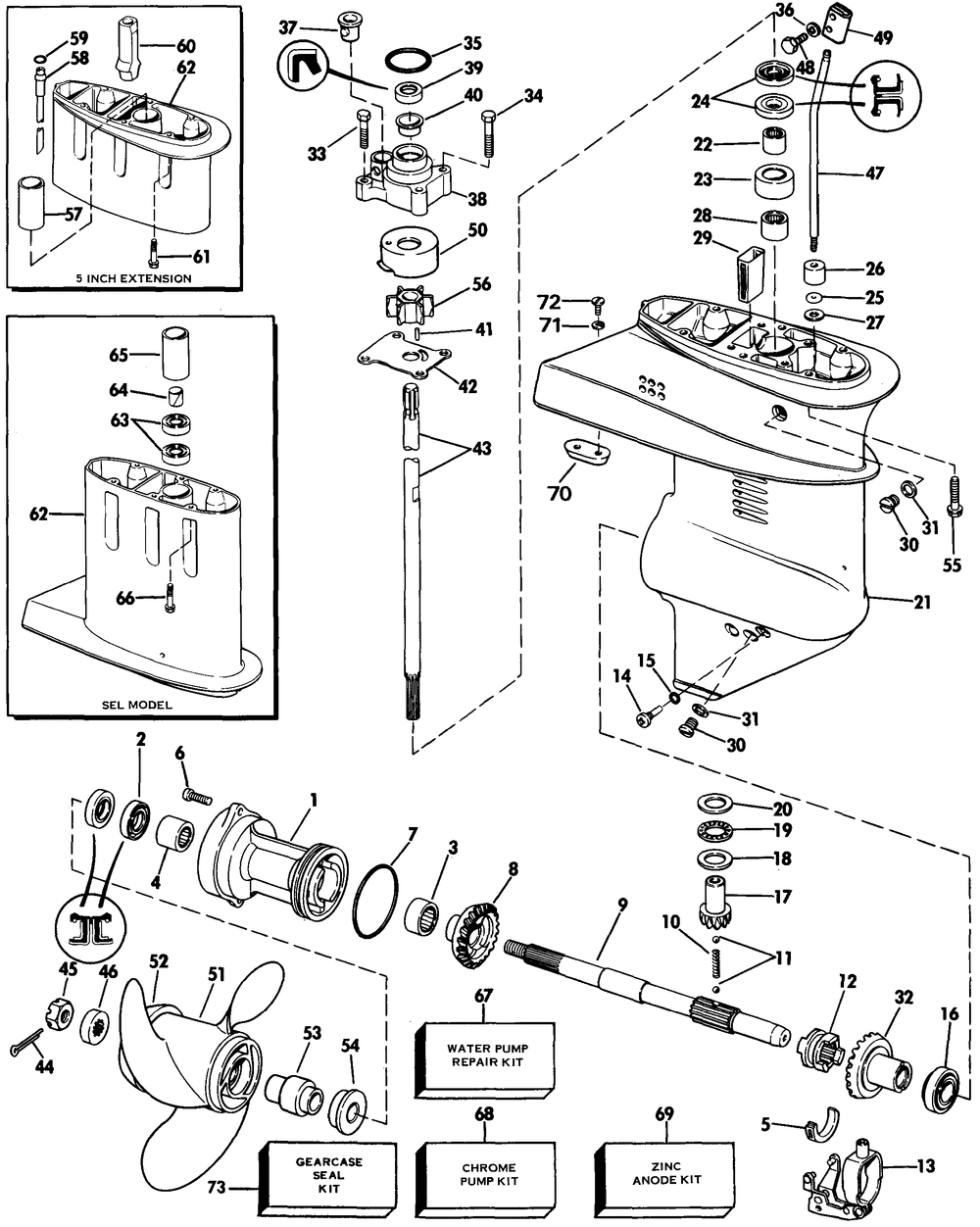

Редуктор

Evinrude E15RLCOB
Evinrude
#oem кодцена
1
0437774
Корпус
2
0321481
Oil Ret 5 Pk
3
0386125
Подшипник
4
0386231
Подшипник
5
0325014
Зажим
6
0328744
Винт
7
0308627
Кольцо
8
0330201
Шестерня -обратный ход
9
0438578
Вал гребной
10
0316505
Пружина
11
0316506
Шарик фиксирующий
12
0325263
Муфта переключения скоростей
13
0388416
Shift Lvr&yoke Ay
14
0308376
Винт
15
0307853
Seal, Screw
16
0386186
Roller Brg Ay
17
0322341
Pinion-ds-12:29
18
0322202
Упорная шайба
19
0388000
Thrust Brg Ay-pin
20
0322201
Упорная шайба
21
0438617
G-case Ay, Less D/s
22
0386014
Подшипник
23
0318874
Гильца
24
0321480
Сальник
25
0301877
Кольцо
26
0304765
Втулка
27
0321738
Шайба
28
0386071
Подшипник
29
0318991
30
0307551
Пробка сливная
31
0311598
Washer-10 Pk
32
0394823
Шестерня -задний ход
33
0324334
Screw, 5 Pk ( Also Included In Water Pump Repair Kit #394711)
34
0319126
Screw-exh Hsg ( Also Included In Water Pump Repair Kit #394711)
35
0319085
Seal-imp Hsg 5pk ( Also Included In Water Pump Repair Kit #394711 5 Inch Longer Parts)
36
0301551
Lockwasher ( 5 Inch Longer Parts)
37
0302497
Grommet ( Also Included In Water Pump Repair Kit #394711)
37
0327035
Grommet ( Also Included In Water Pump Repair Kit #394711)
38
0435390
Hsg&seal Ay, Implr ( 9.9 Models Only)
39
0318972
Seal ( Also Included In Water Pump Repair Kit #394711 Also Included In Gearcase Seal Kit #396350)
40
0326885
( 15 Models Only)
41
0300611
Dowel ( Also Included In Water Pump Repair Kit #394711)
42
0318995
Plate-imp Hsg ( Also Included In Water Pump Repair Kit #394711)
43
0321455
D-shaft Std/15"
43
0321456
D-shaft Long/20" ( 5 Inch Longer Parts)
43
0328299
Driveshaft, 25"-sel ( Sel Models Only)
44
0328522
Cotter Pin 5pk
45
0318971
Гайка гребного винта
46
0323942
Thrust Washer-prop
47
0318992
Shift Rod-lwr
47
0319298
Shift Rod, Lwr 20" ( 5 Inch Longer Parts)
47
0328300
Shift Rod, Lwr-sel ( Sel Models Only)
48
0304024
Screw ( 5 Inch Longer Parts)
49
0303794
Connector, Shft Rod ( 5 Inch Longer Parts)
50
0324097
Cup-impeller Hsg ( Also Included In Water Pump Repair Kit #394711)
51
0778772
Prop, Al 9.25x10
51
0386669
Al Prop 9.9&15hp 5
51
0763457
Prop, Al 9.25 X 8
51
0386670
51
0763892
Ss Prop 9.25x9
52
0332395
Converging Ring
53
0386119
54
0318966
Упорная шайба
55
0324334
Screw, 5 Pk
56
0386084
Impeller Ay ( Also Included In Water Pump Repair Kit #394711)
57
0319340
Extension ( 5 Inch Longer Parts)
58
0320025
Extension Wtr Tube ( 5 Inch Longer Parts)
58
0395124
( Sel Models Only)
59
0202893
O-ring ( 5 Inch Longer Parts)
60
0326922
Exhaust Seal ( 15 Models Only 5 Inch Longer Parts)
61
0331025
Screw ( 5 Inch Longer Parts)
62
0331152
G-case Extension ( 5 Inch Longer Parts)
62
0395894
( Sel Models Only)
63
0328301
Sleeve ( Sel Models Only)
64
0328302
Bushing ( Sel Models Only)
65
0319340
Extension ( Sel Models Only)
66
0323334
( Sel Models Only)
67
0394711
Рем.комплект помпы
68
0394711
Рем.комплект помпы
69
0173029
Zinc Anode Kit Ob
70
0173029
Zinc Anode Kit Ob
71
0304454
Стопорная шайба
72
0306643
Винт
73
0396350
Комплект сальников редуктора
396285
0438617
G-case Ay, Less D/s ( Not Shown)
434135
0434135
( Not Shown 5 Inch Longer Parts)
