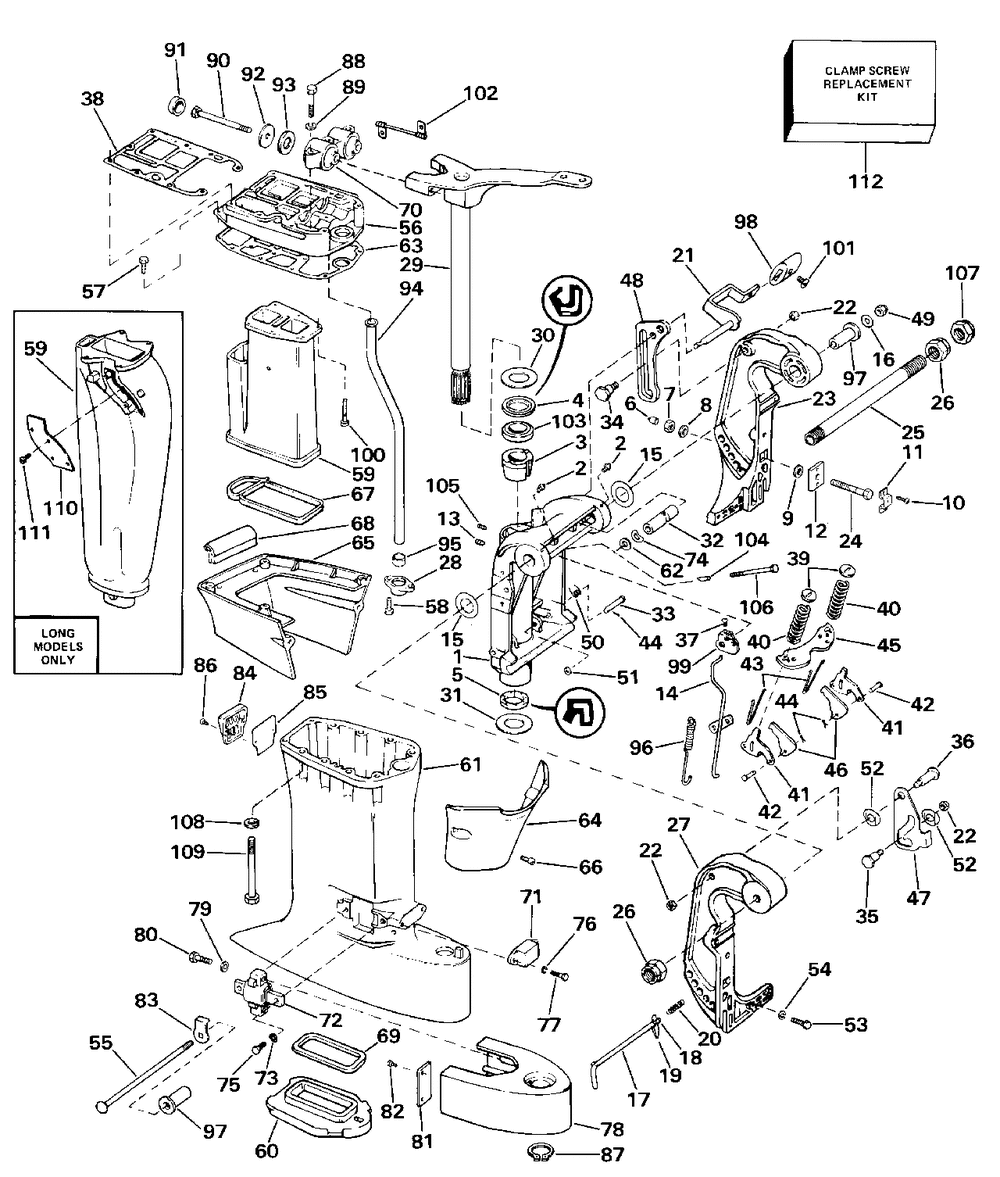

Струбцина

Evinrude E40TELCRM
Evinrude
#oem кодцена
1
0320297
( 40e Models Only)
1
0351318
Bracket, Swivel ( 40e Models Only)
1
0318230
Swivel Brkt ( 40r Models Only 40te Models Only)
1
0318229
Swivel Brkt ( 40r Models Only 40te Models Only)
2
0313607
Фитинг
3
0313880
Bushing ( 40e Models Only)
3
0317412
Bushing ( 40r Models Only 40te Models Only)
4
0317776
Уплотнение
5
0318298
Уплотнение
6
0318572
Cap-tran Scr 4pk ( 40e Models Only 40te Models Only)
7
0313623
Nut ( 40e Models Only 40te Models Only)
8
0320248
Washer 5 Pk ( 40e Models Only 40te Models Only)
9
0307238
Washer 5 Pk ( 40e Models Only 40te Models Only)
10
0319886
Screw Ret To Plate ( 40e Models Only 40te Models Only)
11
0318273
Retainer ( 40e Models Only 40te Models Only)
12
0318272
Sq Plate 4pk ( 40e Models Only 40te Models Only)
13
0317419
Screw ( 40r Models Only 40te Models Only)
14
0387531
Rod&brkt Ay
15
0317782
Thrust Washer ( 40r Models Only 40e Models Only)
16
0314099
Шайба
17
0436212
Штанга
19
0318386
Retainer Strn
20
0307068
Пружина
21
0391415
Lever&shaft
22
0313838
Гайка
23
0391940
( 40r Models Only)
23
0319932
Stern Brkt Port ( 40e Models Only)
24
0318573
3 1/2" Trnsm Bolt
24
0336676
4 3/4" Trnsm Bolt ( As Required For Special Applications)
24
0354101
6" Trnsm Bolt ( As Required For Special Applications)
25
0351896
Tube, Tilt Sst ( 40e Models Only)
26
0323599
Locknut ( 40e Models Only)
27
0391939
( 40r Models Only)
27
0319933
Stern Brkt Stbd ( 40e Models Only)
28
0315860
Cvr-wtr Tube
29
0390534
Pivot Shaft&arm
29
0390535
Pivot Shaft&arm
30
0318295
Упорная шайба
31
0318296
Упорная шайба
32
0318168
Втулка
33
0315961
Pin-link
34
0318167
Винт
35
0313848
Винт
36
0313849
Винт
37
0319108
Screw-bellcrk
38
0351018
Gasket, Pwhd-adapt
39
0314007
Крышка крыльчатки
40
0313817
Пружина
41
0315964
Link Lock Lvr
42
0315962
Pin-link
43
0315965
Седло
44
0302858
Шплинт
45
0321234
Plate Reverse Lock
46
0333871
Lever-locking
47
0326499
48
0385656
49
0313990
Nut ( 40r Models Only 40te Models Only)
50
0315967
Spring-link
51
0552499
Шайба
52
0314031
Washer/spring
53
0552940
Винт
54
0306470
Стопорная шайба
55
0327997
Bolt ( 40r Models Only 40te Models Only)
57
0309705
Винт
58
0908158
Винт
59
0336328
Housing, Exhaust
59
0336259
Housing, Exhaust
60
0315957
Exh Hsg Inner
61
0322075
61
0351067
Housing, Exhaust
62
0318169
Шайба
63
0351019
Gasket, Adptr-hsg
64
0350796
Cover Exh Hsg Frnt
65
0340785
66
0328694
Винт
67
0315955
Seal-exh Hsg
69
0315956
Seal-exh Hsg
70
0436470
Mount Ay, Rubber
71
0383961
Rubber Mt Low
72
0388411
Rubber Mt Ay-lwr
73
0306470
Стопорная шайба
74
0318170
Пружинная шайба
75
0552940
Винт
76
0302290
Lockwasher 5 Pk
77
0329894
Винт
78
0322074
79
0306470
Стопорная шайба
80
0316109
Screw Mt Brkt
81
0316055
Cvr Mt Brkt
82
0316233
Screw Cover
83
0325017
Washer-tilt Pin ( 40r Models Only 40te Models Only)
84
0315864
Cvr Exh Relef
85
0329826
Gasket, Ex Rlf Cvr
86
0305143
Винт
87
0318307
Retain Ring
88
0306423
Винт
89
0306470
Стопорная шайба
90
0317648
Винт
91
0313581
Амортизатор ударов
92
0321232
Retaining Washer
93
0313580
Шайба
94
0322309
94
0340216
95
0332363
Washer, Wtr Tube
96
0321426
Пружина
97
0325914
Bushing ( 40r Models Only 40te Models Only)
98
0329012
Knob-tilt Lock
99
0319904
Bellcrank Tiltlock
100
0326469
Винт
101
0318238
Винт
102
0582494
Lead Ay, Bonding
103
0317415
Thrust Ring ( 40r Models Only 40te Models Only)
104
0317418
Pin ( 40r Models Only 40te Models Only)
105
0317416
Scrw Thrst Rg ( 40r Models Only 40te Models Only)
106
0317525
Screw-string ( 40r Models Only 40te Models Only)
107
0322376
Nut-steering Wiper ( Recommended To Prevent Corrosion In Salt Water Use)
108
0306470
Стопорная шайба
109
0133022
Винт
110
0328651
Защита
111
0306643
Винт
112
0391434
C-screw Kit ( 40r Models Only)
172912
0172912
( Not Shown)
