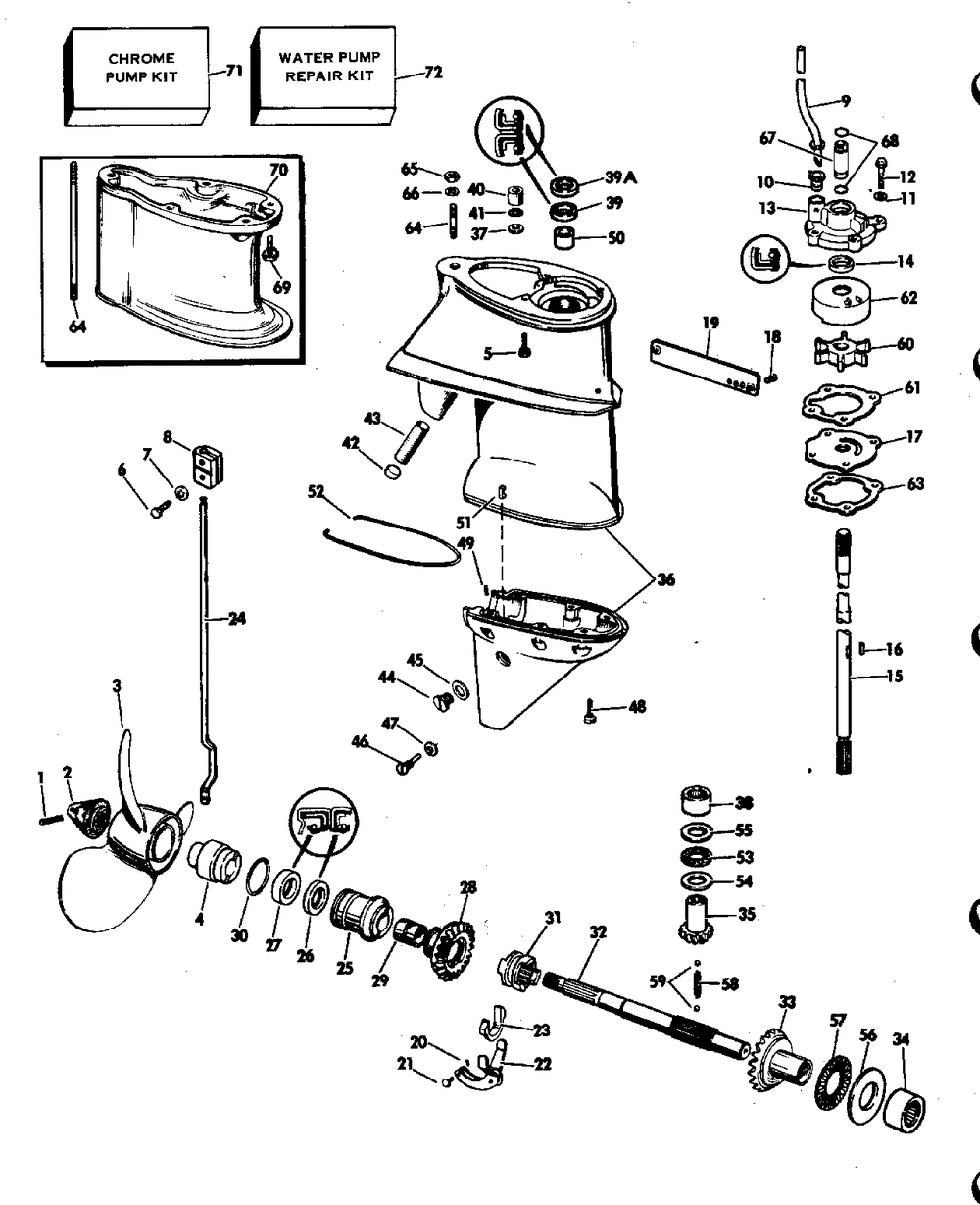

Редуктор

Evinrude E25RLCTE
Evinrude
#oem кодцена
1
0306394
Cotter Pin 10 Pk
2
0390294
Гайка гребного винта
3
0389067
Al Prop 25hp 7p
3
0763585
Prop, Al 9x9 3bld
3
0763589
Prop Al. 9x10
3
0763590
Prop Ay, Al 9.25x12 ( 25rct-25rlct 25ect-25elct 25tect-25telct)
3
0389321
3
0389393
4
0389281
Prop Hub 25 Hp
5
0328333
Винт
6
0304024
Винт
7
0301551
Стопорная шайба
8
0303794
Connector, Shft Rod
8
0304081
Connector, Shft Rod
9
0322077
Water Tube Std
9
0322078
10
0302497
Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
11
0328702
Washer ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
12
0324960
Screw ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
13
0330560
Imp Hsg
14
0321786
Seal Prop Shaft ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
15
0341650
Driveshaft, 15"
15
0341649
Driveshaft, 20"
16
0300611
Dowel ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
17
0765642
Plate ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
18
0303587
Винт
19
0302505
Крышка
20
0306376
Шплинт
21
0302504
Штифт
22
0375755
Lever & Pin A
23
0325014
Зажим
24
0303098
Shift Rod, Low-std
24
0303257
Shift Rod, Low-long
25
0389045
Gcase Head&seal Ay
26
0321786
Seal Prop Shaft
27
0321787
Seal Prop Shaft
28
0325258
Gear-reverse, 3lug
29
0303997
Втулка
30
0321921
Уплотнительное кольцо
31
0325263
Муфта переключения скоростей
32
0344231
33
0390295
Gear&bush-fwd, 3lug
34
0389472
Bearing-fwd Gear
35
0324457
Pinion-driveshaft
36
0432810
G-case & Brg
37
0304764
Прокладка
38
0376856
Brg Ay, Needle
39
0321786
Seal Prop Shaft
40
0304765
Втулка
41
0301877
Кольцо
42
0300314
Заглушка
43
0302757
Водозаборная решетка
44
0307551
Пробка сливная
45
0311598
Washer-10 Pk
46
0308376
Винт
47
0307853
Seal, Screw
48
0330562
Винт
49
0300611
Центрирующая втулка
50
0386473
Подшипник
51
0317728
53
0388027
Thrust Brg Ay
54
0322688
Thrust Washer-lwr
55
0319667
Ff Thrust Washer
56
0324459
Упорная шайба
57
0389470
Подшипник опорный
58
0316505
Пружина
59
0316506
Шарик фиксирующий
60
0395289
Imp & Key ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
61
0329390
Gasket ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
62
0328751
Cup, Imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
63
0324449
Gasket-impellr 5pk ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
64
0330060
Шпилька
64
0330558
65
0552938
Гайка
66
0307708
Стопорная шайба
67
0324453
Проставка
67
0324455
Проставка
68
0301967
O Ring ( Also Included In Water Pump Repair Kit, (includes Impeller Housing) 391390)
69
0328333
Винт
70
0328336
Extension
71
0394392
72
0395270
Kit Ay, Wtr Pump
39A
0321459
Oil Retainer
325974
0325974
Rubber Mount ( Not Shownn)
325975
0325975
Rubber Mount ( Not Shownn)
393415
0394977
( Not Shownn)
393447
0432811
See Pricebook ( Not Shownn)
