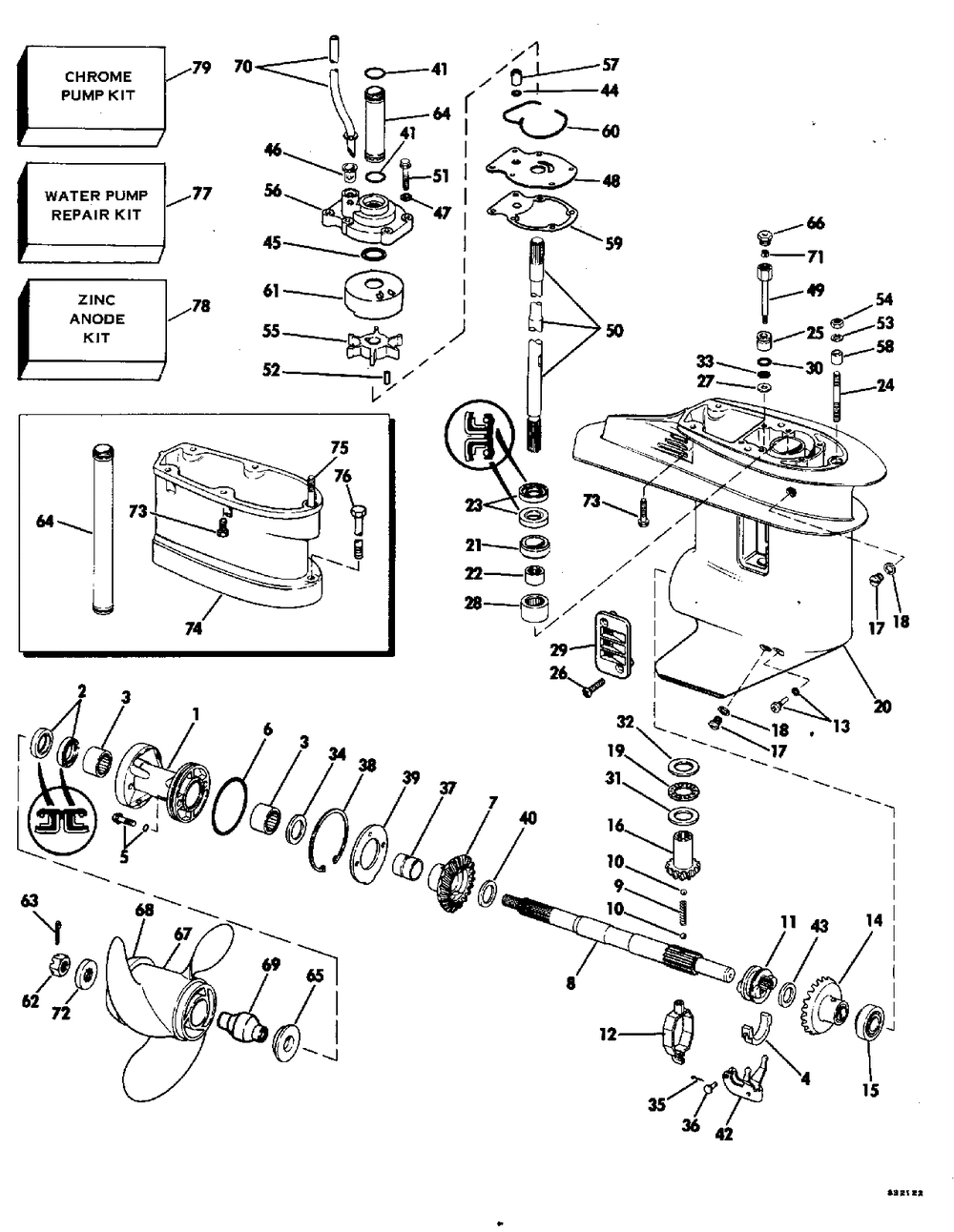

Gearcase - 35 Каталог оригинальных запчастей для лодочных моторов Evinrude E35ELCTS (1983)

Gearcase - 35

Evinrude E35ELCTS

oem код

название

цена

0325541

Shift Rod-lng ( Not Shown)

Корпус

Сальник

Brg Ay, Needle

Cradle Clutch Dog

Sst Screw

Уплотнительное кольцо

Gear Rev 14:27

Ff Prop Shaft Ay

Пружина

Шарик фиксирующий

Ff Shifter C Dog

Yoke & Connector

Винт

Gear & Bushng, Fwd

Roller Brg Ay

Pinion Gear, 14:27

Пробка сливная

Washer-10 Pk

Thrust Brg Ay

G-case Hsg 35 82

Bearing Hsg Dshaft

Подшипник

Oil Ret Brg Hsg Ds

Ff Stud

Втулка

Винт

Шайба

Brg Ay, Needle

Кольцо

Упорная шайба

Thrust Washer-upr

Кольцо

Ff Thrust Washer

Cotter Pin 10pk

Штифт

Ff Bushing Rev Gr

Ff Retaining Ring

Ff Retainer Plate

O Ring ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

0320118

0319686

Ff Thrust Washer

0301877

O Ring ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

0554545

Кольцо

0302497

Grommet ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

0328702

Washer ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

0328755

Plate ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

Kit Ay, Shift Rod

Вертикальный вал 15"

Driveshaft 20"

Screw ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

0300611

Dowel ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

Стопорная шайба

Стопорная шайба

Гайка

Imp & Key ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

Imp Hsg & Bush Ay

Втулка

Втулка

Gasket ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

0328753

Уплотнение

0326693

Spacer, Long

0328751

Cup, Imp Hsg ( Also Included In Water Pump Repair Kit, (includes Impeller Hou 393630)

Ff Prop Nut

Ff Cotter Pin 5pk

Spacer, Long

Ff Thrust Bushing

Connctr, Shft Rod

Al Prop 35hp 7p

Prop, Al 10x17

Prop, Al 10.5x11 Rh

Prop, Al/10.3x13

Prop, Al 11 X 9 Rh

Prop, Ss-10x11 3bld

Prop, Al 10 X 15

Prop, Sst 10x13

Prop Ay, Ss-10x15-3

Converging Ring

Water Tube Std

Keeper

Spacer Prop Nut

Винт

Винт

Ext, Stud & Screw

Ff Stud

Screw, G/c Extn

Wtr Pump Kit

Zinc Anode Kit Ob

317178

Seal ( Not Shown)

325974

0325974

Rubber Mount ( Not Shown)

325975

0325975

Rubber Mount ( Not Shown)

392939

0392939

( Not Shown)

393069

0393069

( Not Shown)
